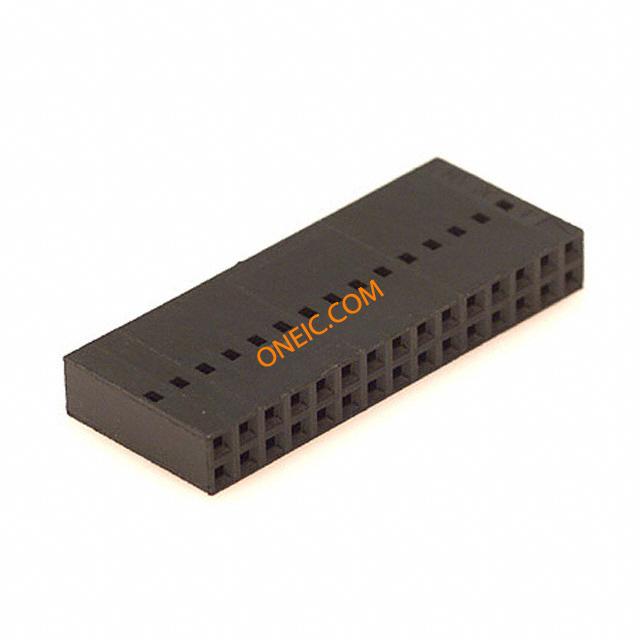

22-55-2301
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 30POS .100 DUAL Headers & Wire Housings HSG 30P DUAL ROW NON-POLARIZED Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0022552301 70450-0014 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | In Transition | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | Polyester |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 30 | 接触件端接 | Crimp |
| 位数 | 30 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | 70450 |
| 产品子类型 | Receptacles / Sockets - Housings | ||
文档与媒体
相关型号
0016020103
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Bag
0016020087
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Reel

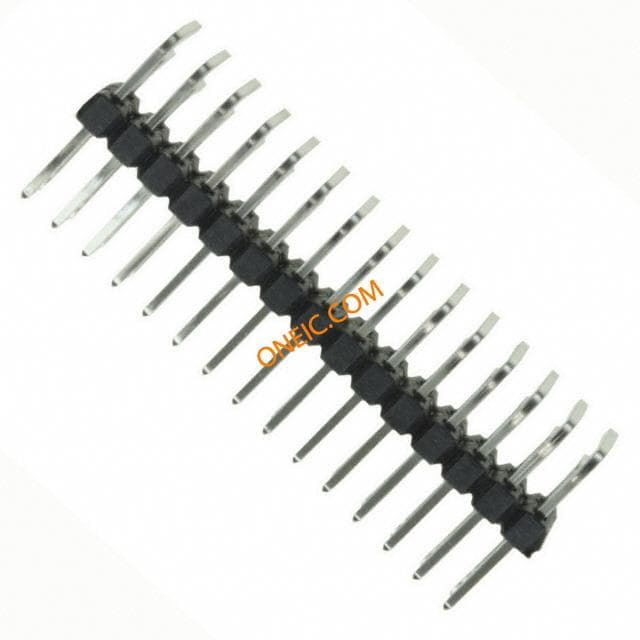

0717640030
molex
Conn Unshrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR DUAL 30POS .100 R/A TIN

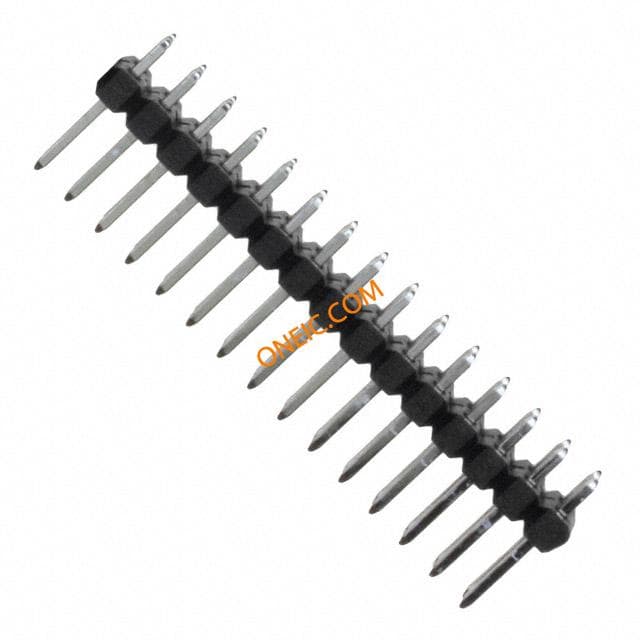

0010897301
molex
Conn Unshrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 30POS .100 SRT TIN

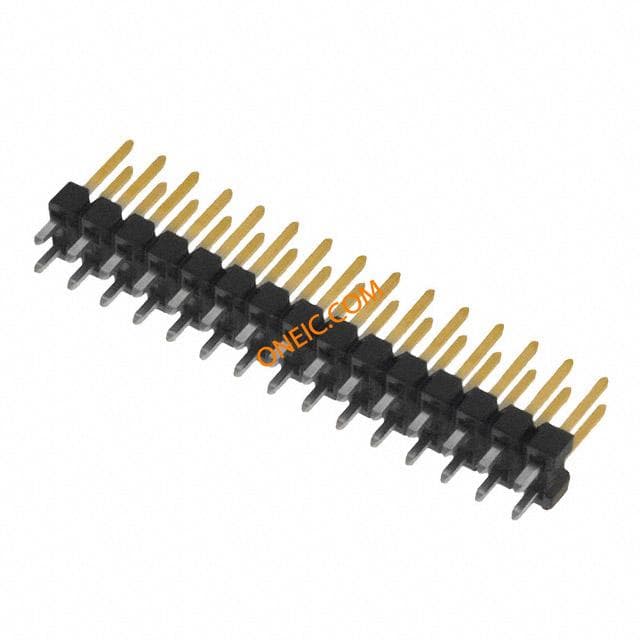

0010897302
molex
Conn Unshrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 30POS .100 SRT AU
0016020069
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG CRIMP TIN
0016020083
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 30GOLD Conn Contact F 1 POS Crimp ST Cable Mount Reel

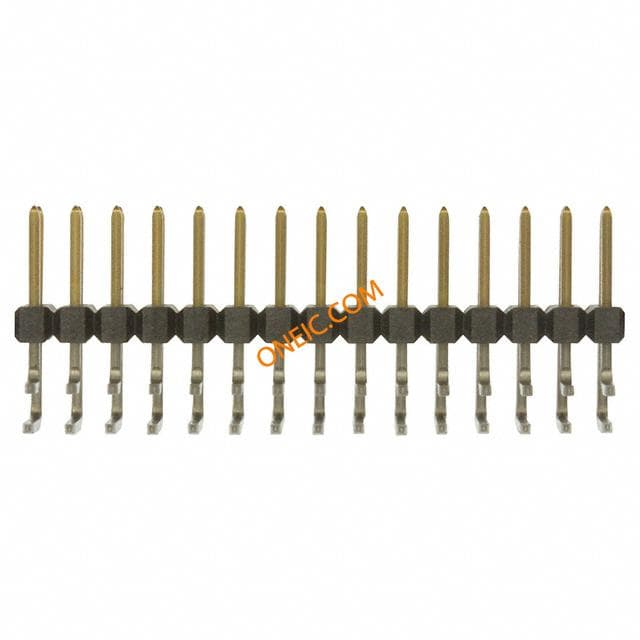

71764-0130
molex
Conn Unshrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR DUAL 30POS .100 R/A AU Headers & Wire Housings RA BRKWY HEADER 30 PIN GOLD
15-42-7030
Molex
Headers & Wire Housings CGrid RA Shrd Hdr VerA Tin 30Ckt CONN HEADER 30POS .100 R/A TIN
15-29-7030
Molex
Headers & Wire Housings CGrid RA Shrd Hdr VerA 15 SAu 30Ckt CONN HEADER 30POS .100 R/A GOLD
15-41-8030
Molex
Headers & Wire Housings CGrid RA Shrd Hdr VerA 30 SAu 30Ckt CONN HEADER 30POS .100 R/A GOLD
15-42-6030
Molex
Headers & Wire Housings C-GRID 30 CKT SHROUD CONN HEADER 30POS .100 VERT TIN
15-29-6030
Molex
Headers & Wire Housings Obsolete CONN HEADER 30POS .100 VERT GOLD
15-41-7030
Molex
Headers & Wire Housings Obsolete CONN HEADER 30POS .100 VERT GOLD

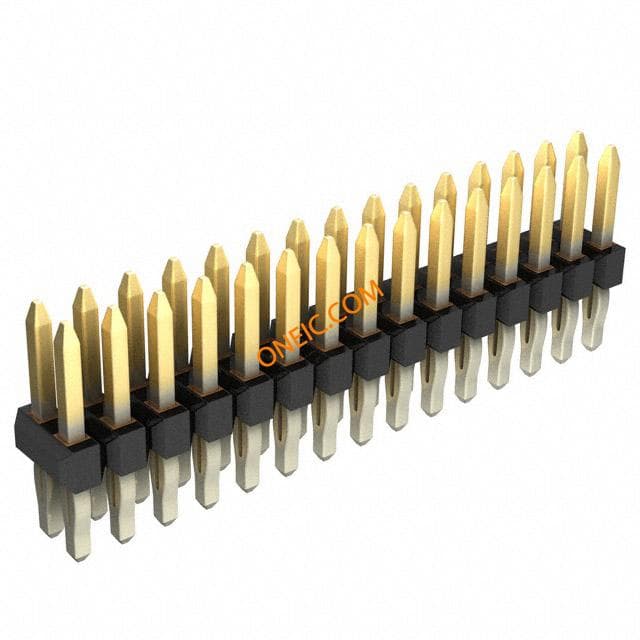

0751020053
Molex
Conn Unshrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 30POS .100 SRT AU
10-89-4306
Molex
Conn Unshrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 30POS .100 R/A GOLD Headers & Wire Housings CGrid R/A Bkwy HPro Hdr 30 SAu 30Ckt

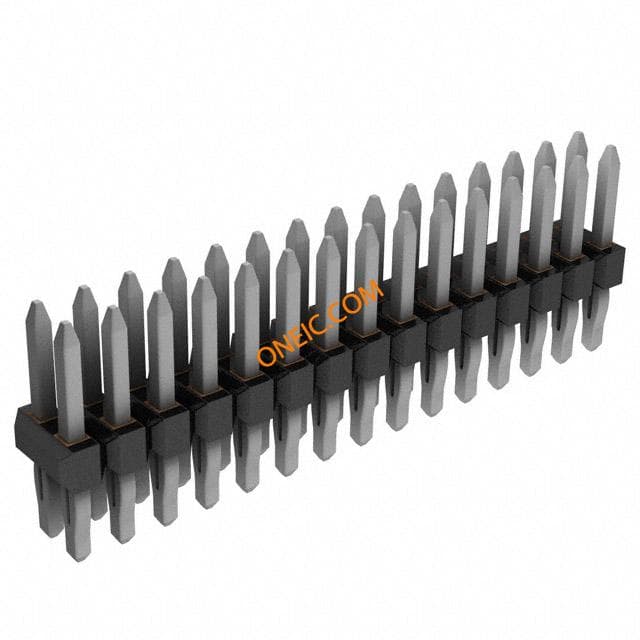

0751020092
