点击放大查看

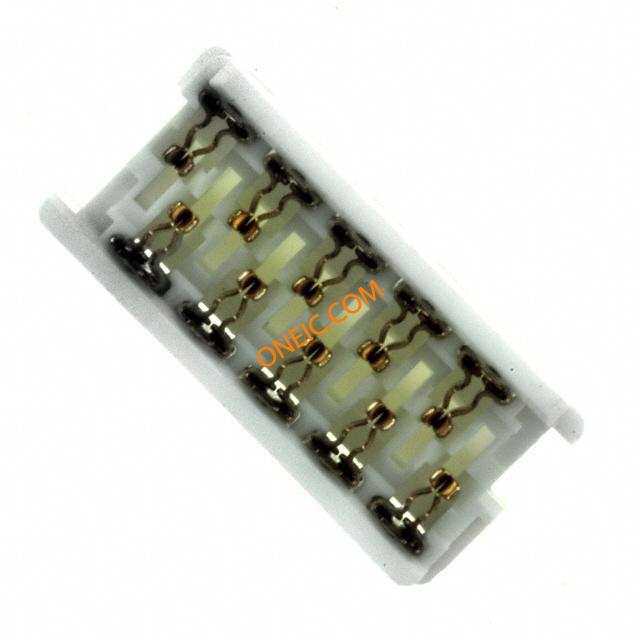

0903273310
| 制造商 | Molex, LLC |
| 描述 | CONN RECPT IDT 10POS 1.27MM GOLD Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Bag |
| 分类 |
商业参数
| 交货时间 | 42 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 接触电阻 | 15 mohm | 最大额定电流 | 1.2/Contact A |
| 最小供电电压 | 250V | ||
机械参数
| 颜色 | White | 深度 | 7 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 6.4 mm |
| 包装方式 | Bag | 导线类型 | Ribbon Cable |
| 导线线规 | 26-28 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Palladium-Nickel | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 15.21 mm |
| 电缆端接方式 | IDC | 触点数 | 2 |
| 位数 | 10 | 接触镀层厚度 | 24µin (0.60µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 产品特性 | Feed Through | 行业别名 | 90327-3310, 903273310 |
环境参数
| 工作温度 | -40C to 105C | ||
相关型号
0903253010
molex
Conn Ribbon Cable Connector HDR 10 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 10POS 1.27MM GOLD

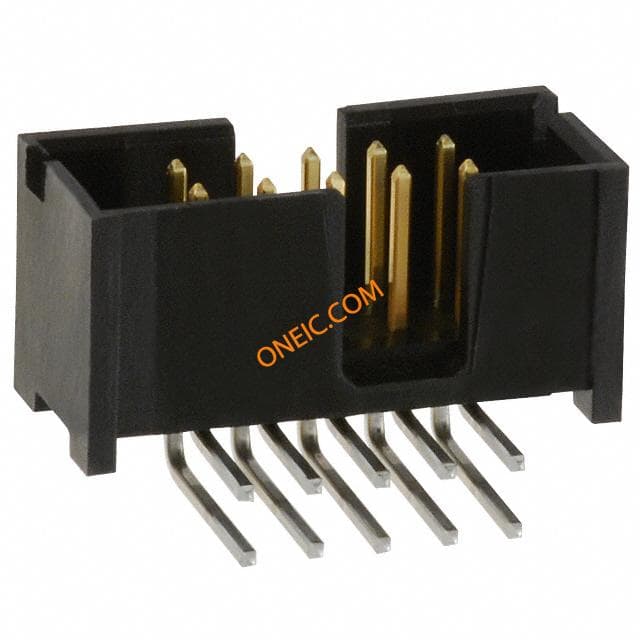

0702471051
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 10POS .100 R/A 15AU
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR

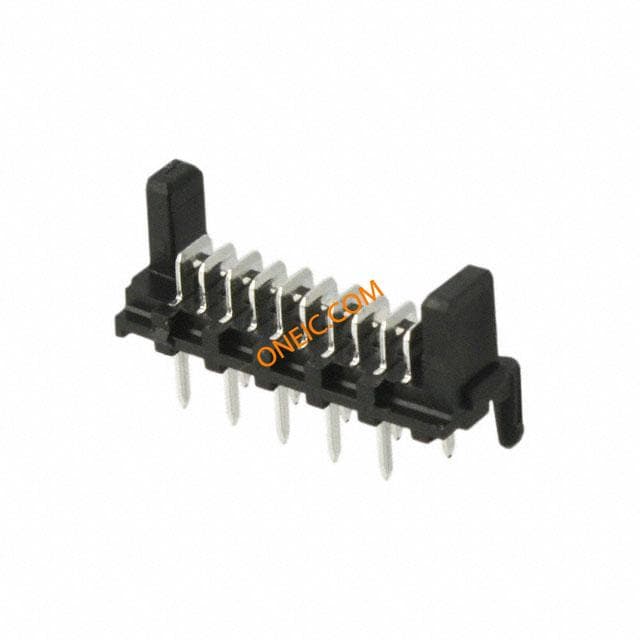

0903250010
molex
Conn Ribbon Cable Connector HDR 10 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 10POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 10; tinned; 1.2A
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

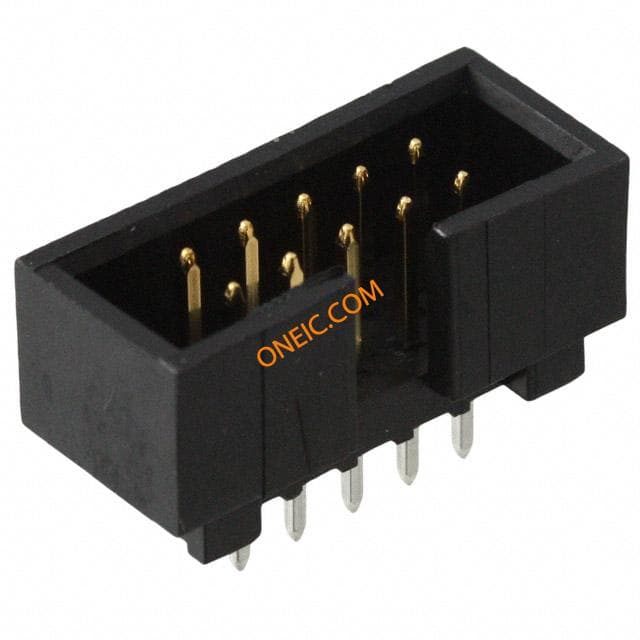

0702461001
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 10POS .100 VERT GOLD

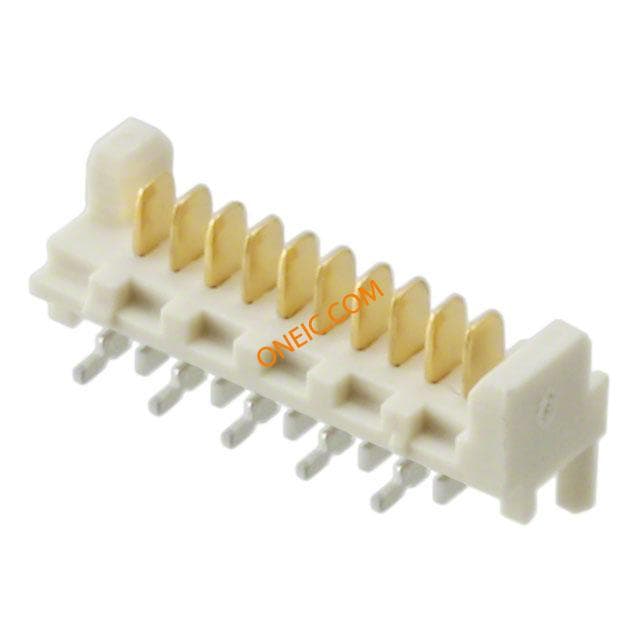

90814-3810
molex
Conn Ribbon Cable Connector HDR 10 POS 2.54mm Solder ST SMD Tube CONN HEADER 10PS 1.27MM SMD GOLD Header 1.27mm,SMT, vert, low pro, 10w Headers & Wire Housings 1.27MM 10P VERT HDR LO-PRO SMT,AU Molex PICOFLEX 系列 10路 1.27mm节距 公 IDC 连接器 , 表面安装

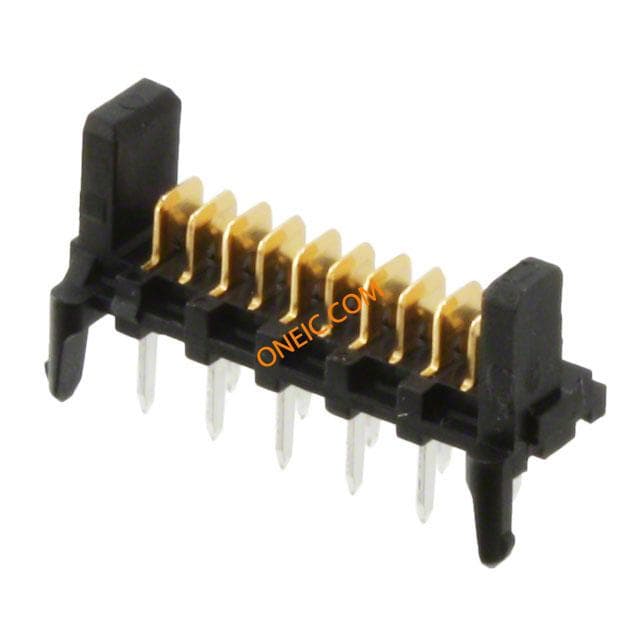

90325-7010
molex
Conn Ribbon Cable Connector HDR 10 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 10PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 10P HDR AU R/A LP W/PCB PEGS

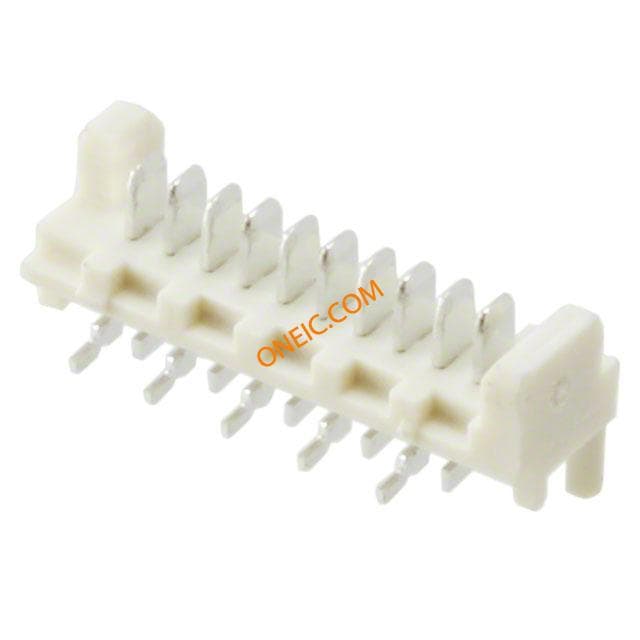

0908140810
Molex
Conn Ribbon Cable Connector HDR 10 POS 2.54mm Solder ST SMD Tube CONN HEADER 10POS 1.27MM SMD TIN

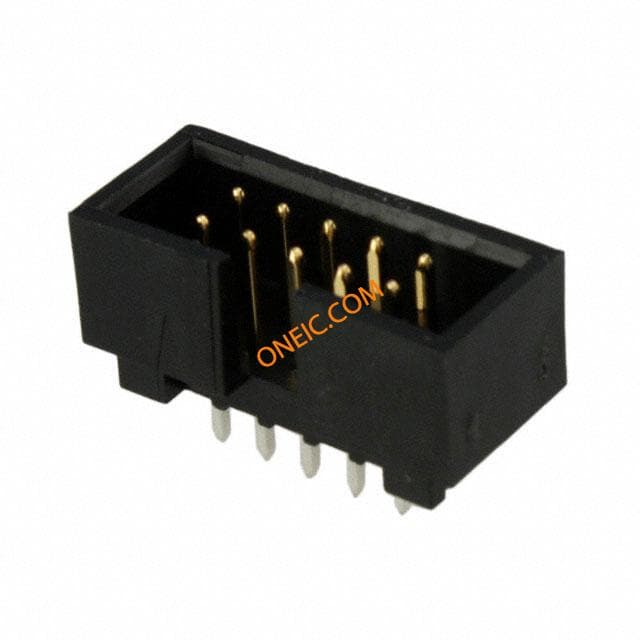

0702461002
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 10POS .100 VERT GOLD
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584

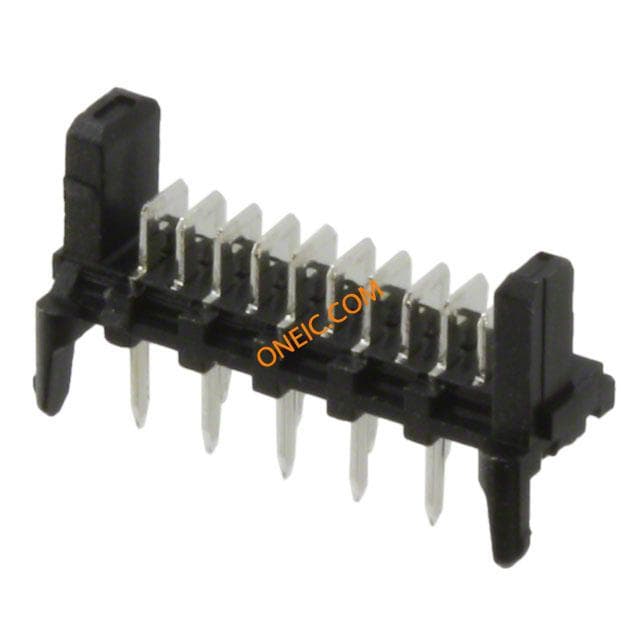

90325-9010
