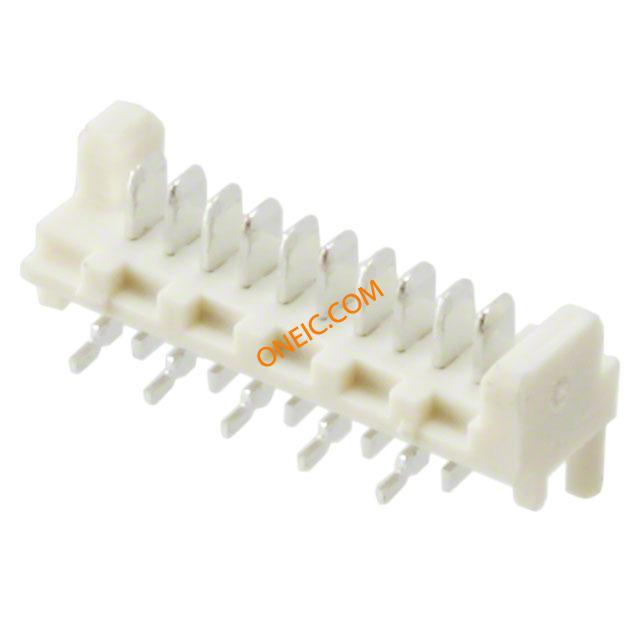

点击放大查看
0908140810
| 制造商 | Molex, LLC |
| 描述 | Conn Ribbon Cable Connector HDR 10 POS 2.54mm Solder ST SMD Tube CONN HEADER 10POS 1.27MM SMD TIN |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 mohm | 最大额定电流 | 1.2/Contact A |
| 最小输入电压 | 250VDC|250VAC | 最小供电电压 | 250VDC/250VAC |
机械参数
| 颜色 | Natural | 深度 | 6.9 mm |
| 间距 | 0.050" (1.27mm) | 高度 | 5.15 mm |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Blade Pin | 外壳颜色 | Beige |
| 安装类型 | Straight | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Nickel | 安装样式 | Surface Mount |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon 4/6 | 总长度 | 16.48 mm |
| 第一触头极性 | HDR | 触点数 | 10 |
| 位数 | 10 | 接触长度 - 配合 | 0.085" (2.15mm) |
| 接触镀层厚度 | 118.1µin (3.00µm) | ||
产品信息
| 类型 | Ribbon Cable Connector | 已删除 | Compliant |
| 产品特性 | Board Guide | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | ||
