点击放大查看

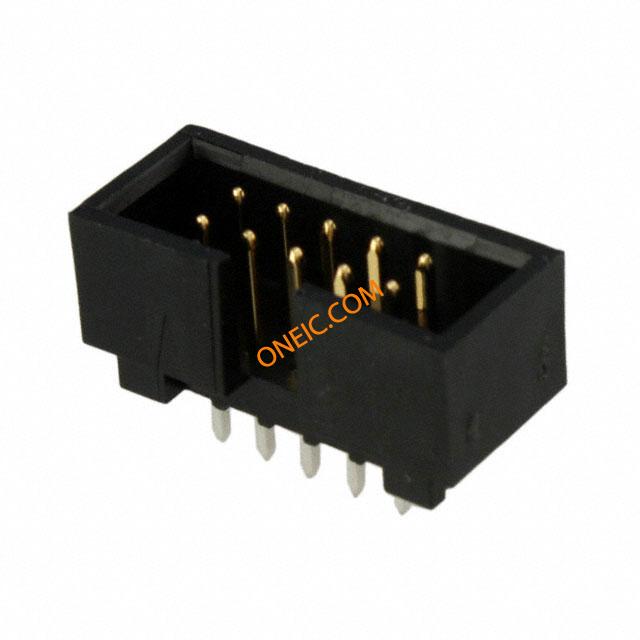

0702461002
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 10POS .100 VERT GOLD |
商业参数
| 标准包装数量 | 1,200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2.5/Contact | 最小输入电压 | 250VDC |
机械参数
| 颜色 | Black | 深度 | 8.89 |
| 间距 | 0.100" (2.54mm) | 高度 | 9.27 |
| 包装方式 | Tray | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 20.32 |
| 触点数 | 10 | 位数 | 10 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
文档与媒体
相关型号
0903270366
molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT
0022552102
molex
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING DUAL ROW 10POS .100
0903273364
molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Bag Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT
15-44-3205
Molex
Headers & Wire Housings Obsolete CONN RECEPT 10POS .100 VERT PCB
15-45-1305
Molex
Headers & Wire Housings Obsolete CONN RECEPT 10POS .100 VERT PCB
0903270310
Molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 10POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 10; tinned; 1.2A

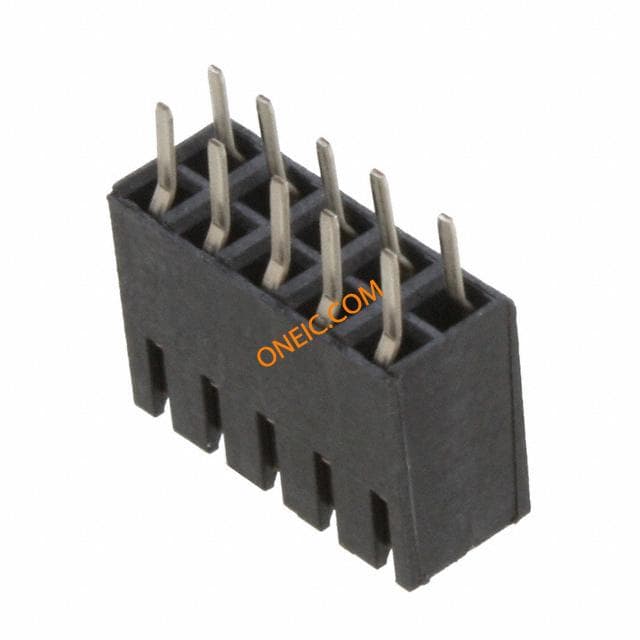

15-44-5110
