点击放大查看

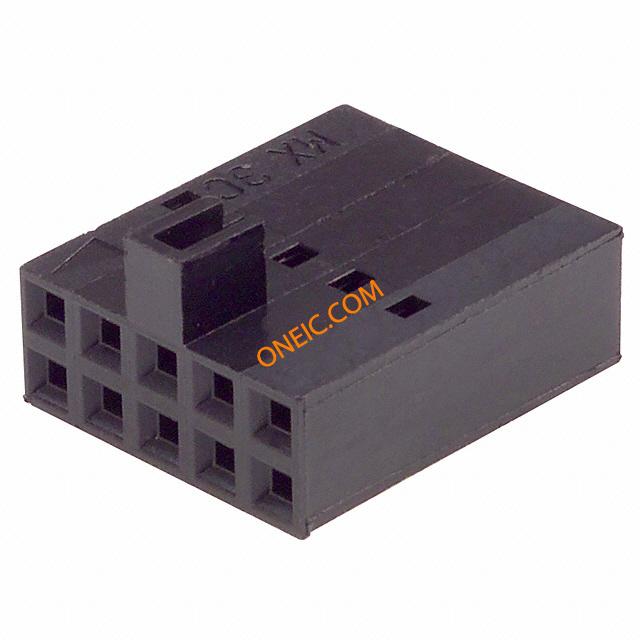

0022552102
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING DUAL ROW 10POS .100 |
| 分类 |
商业参数
| 交货时间 | 22 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 高度 | 8.1 mm |
| 包装方式 | Bag | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 排数 | 2 | 壳体材料 | Polyester |
| 总长度 | 12.67 mm | 触点数 | 10 |
| 接触件端接 | Crimp | 位数 | 10 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Polarizing Key |
| 行业别名 | 22-55-2102, 22552102 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号

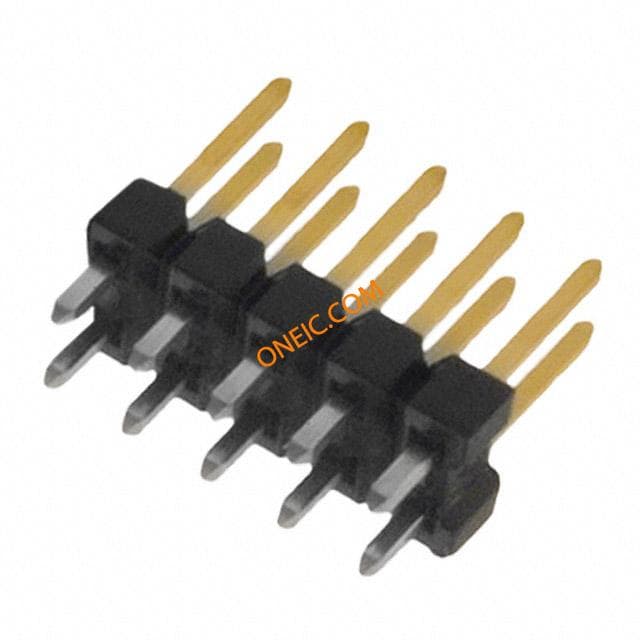

0010897102
molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 10POS .100 SRT AU
0702471051
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 10POS .100 R/A 15AU

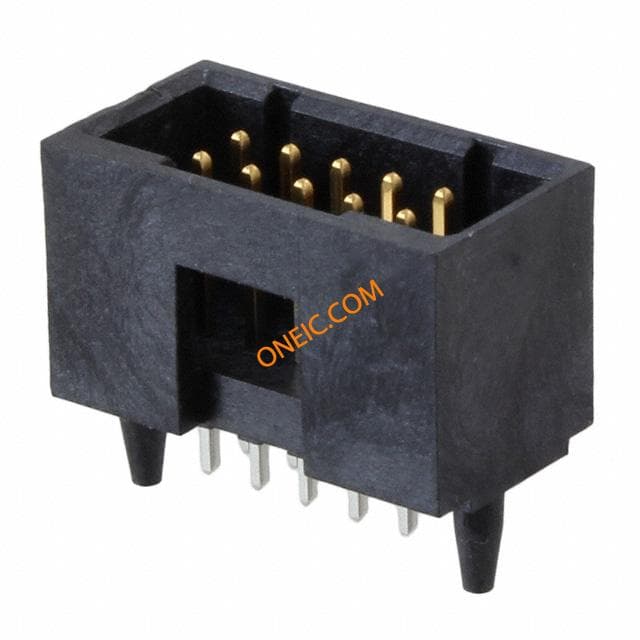

0015477610
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 10POS DL VERT GOLD
0702461001
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 10POS .100 VERT GOLD

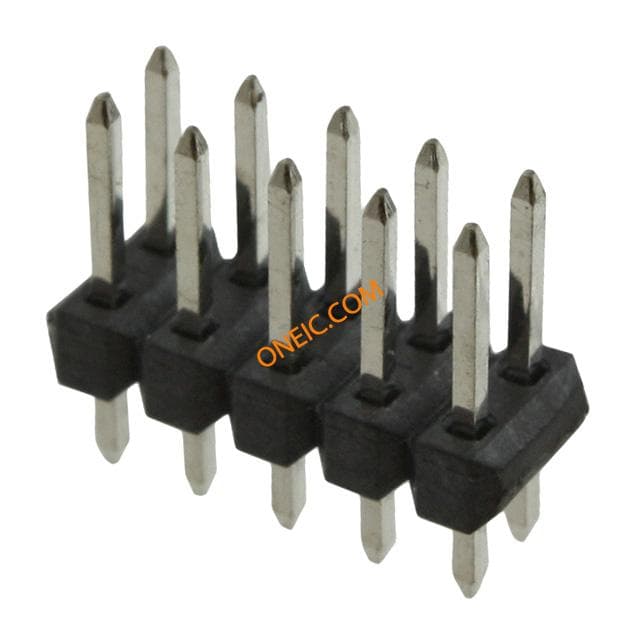

0879141016
molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 10POS DL VERT T/H
15-29-7010
Molex
Headers & Wire Housings C-GRID 10 CKT SHROUD CONN HEADER 10POS .100 R/A GOLD Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube
15-41-8010
Molex
Headers & Wire Housings CGrid RA Shrd Hdr VerA 30 SAu 10Ckt CONN HEADER 10POS .100 R/A GOLD
70246-1021
Molex
Headers & Wire Housings 10P 2ROW HEADER CONN HEADER 10POS .100 VERT GOLD 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 10 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC ... 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 10 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC Tail Plating
70246-1022
Molex
Headers & Wire Housings HEADER C-GRID 10P CONN HEADER 10POS .100 VERT GOLD 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 10 Circuits, 0.76µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC ... 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 10 Circuits, 0.76µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC Tail Plating
70247-1002
Molex
Headers & Wire Housings C-GRID 10 CKT SHROUD CONN HEADER 10POS .100 R/A GOLD
10-89-4106
molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A GOLD Headers & Wire Housings CGrid R/A Bkwy HPro Hdr 30 SAu 10Ckt

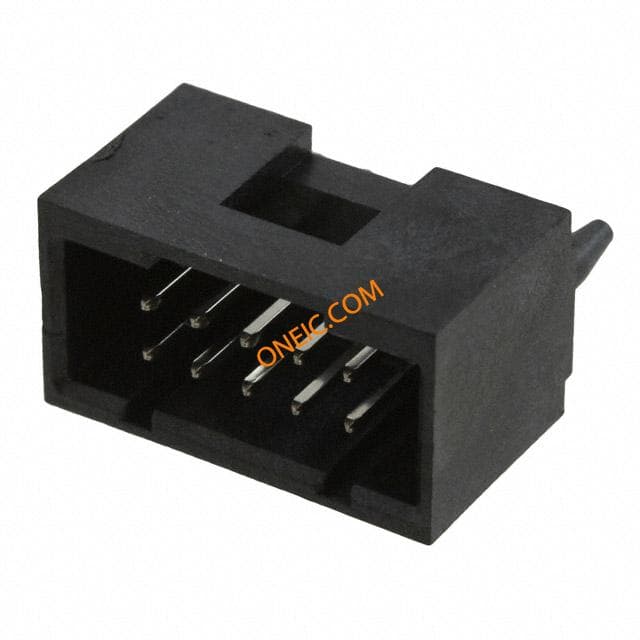

0015477510
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 10POS VERT TIN T/H

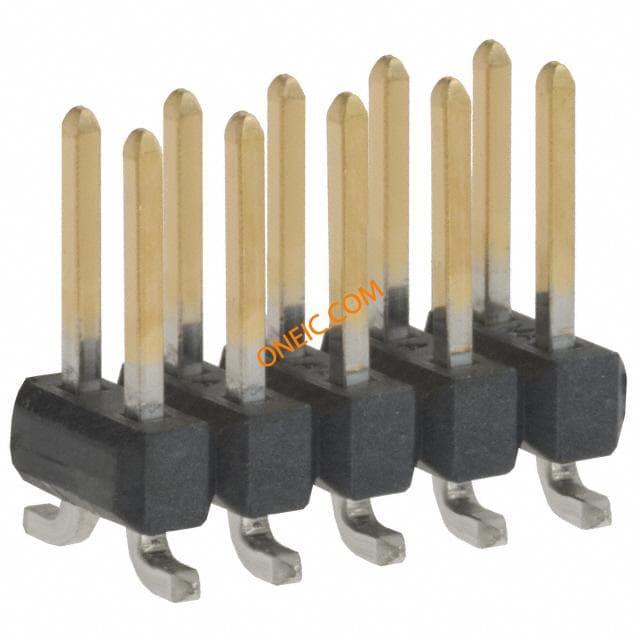

0015910100
Molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD Tube CONN HEADER 10POS .100" STR 15AU

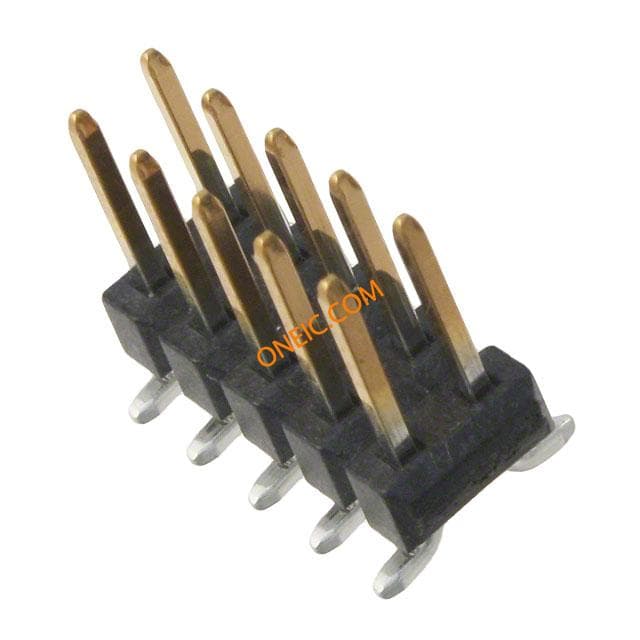

0015916102
Molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD Embossed T/R HEADER SMT BKWY GOLD 10CKT

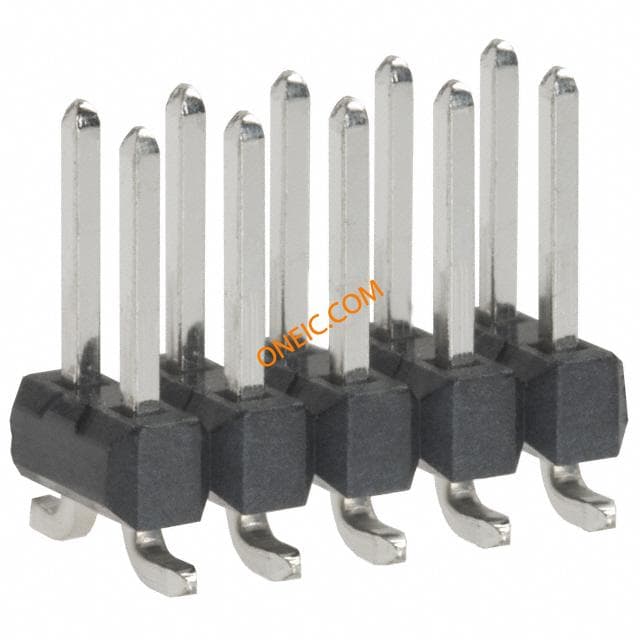

0015912100
Molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD Tube CONN HEADER 10POS .100" VERT TIN

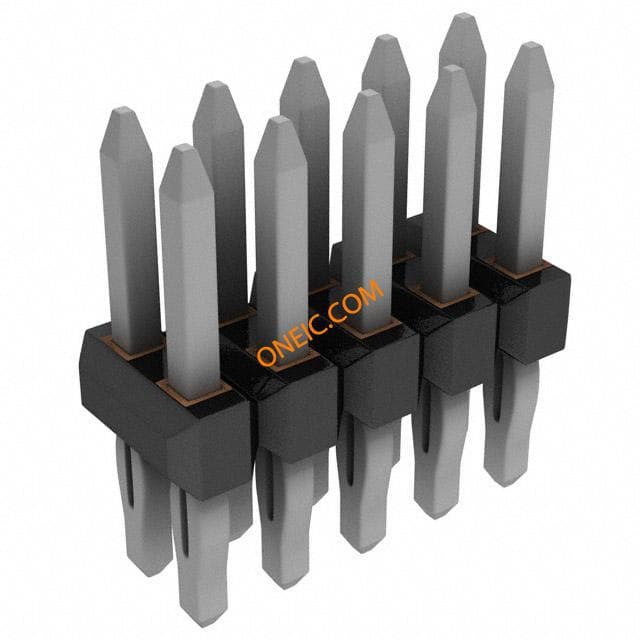

0751020082
Molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 10POS .100 SRT TIN

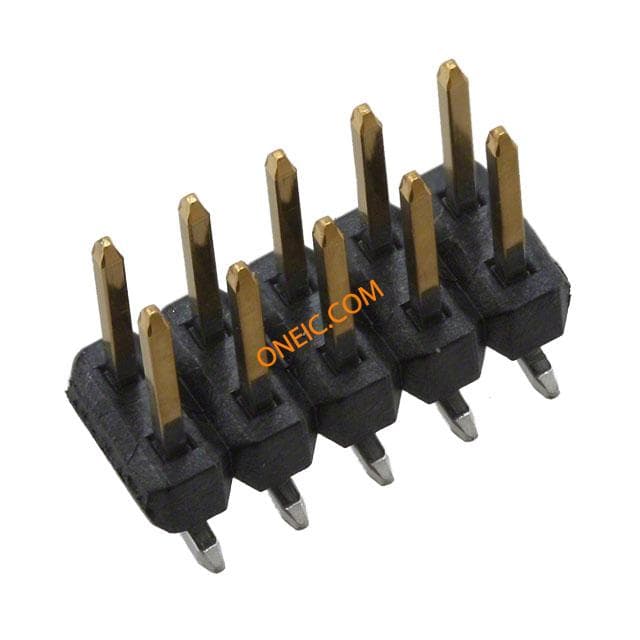

0015913100
