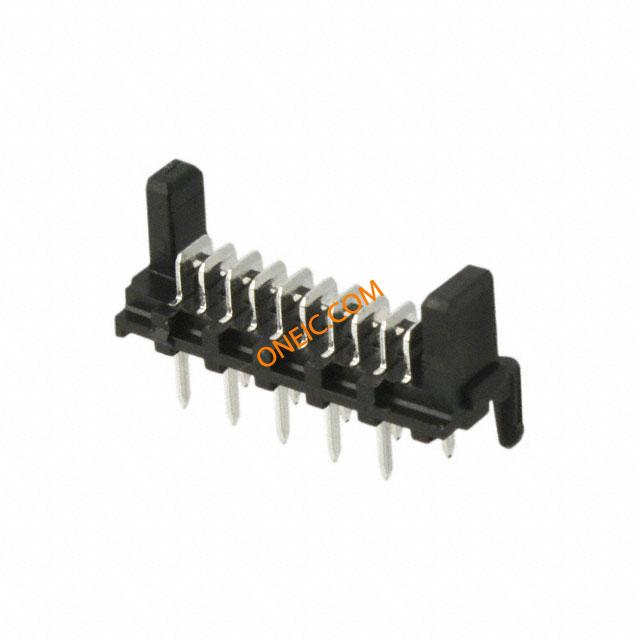

点击放大查看
0903250010
| 制造商 | Molex, LLC |
| 描述 | Conn Ribbon Cable Connector HDR 10 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 10POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 10; tinned; 1.2A |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大电压 | 250V | 接触电阻 | 15 mohm |
| 最大额定电流 | 1.2/Contact A | 最小输入电压 | 250V |
| 最小供电电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 5.98 mm |
| 间距 | 1.27 mm | 高度 | 6.4 mm |
| 重量 | 0.67 g | 包装方式 | Bag |
| 端接方式 | Solder | 触头类型 | Blade Pin |
| 柱间距 | 1.27mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 16.94 mm |
| 包装数量 | 250 | 连接器 - 电缆 | socket |
| 第一触头极性 | HDR | 触点数 | 10 |
| 位数 | 10 | 接触镀层厚度 | 118.1µin (3.00µm) |
| 触点材料 - 镀层 | tinned | 第一连接器安装特征 | 1x10 |
产品信息
| SPG | 250 | 类型 | Ribbon Cable Connector |
| 产品特性 | Board Lock | 适配器系列 | PicoFlex |
| 单元数量 | 1 | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | ||
