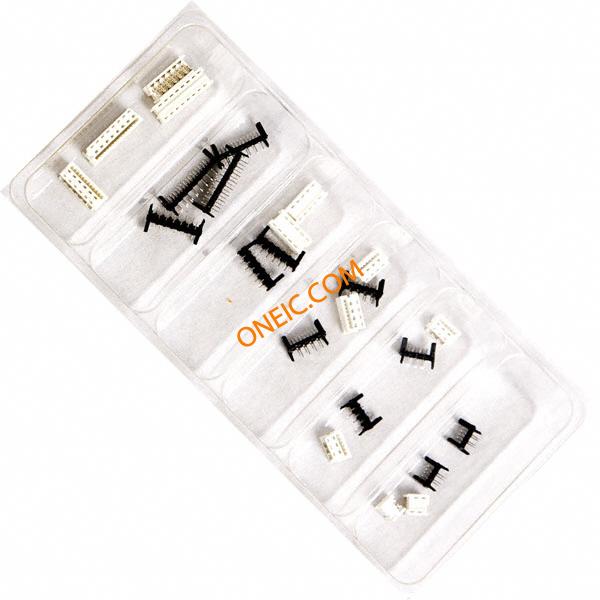

76650-0122
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 10,12,16,4,6,8POS 1.2A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX RA 1.27MM ASSORTED Headers & Wire Housings PICOFLEX CONN KIT R/A Kit Description:Right Angle Header and IDT ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:24 PICOFLEX CONNECTOR KIT RT ANGLE HEADER & IDT RECEPT |
| 分类 |
商业参数
| 商标名 | Picoflex | 标准包装规格 | 1 |
| 零件号别名 | 0766500122 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 250 V | 额定电压 | 250 V |
| 最大额定电流 | 1.2 A | ||
机械参数
| 间距 | 1.27 mm | 包装方式 | Plastic Box |
| 导线线规 | 28-26 | 安装类型 | Right |
| 连接器类型 | Receptacle and Headers | 端接样式 | SMD, Through Hole |
产品信息
| 系列 | 76650 | 值 | 24 pcs - 2 ea of 4, 6, 8, 10, 12, 16 position |
| 套件类型 | Rectangular - Free Hanging, Header | 制造商全称 | 76650 |
| 产品子类型 | Connector Kits | 配置 | Wire-to-Board |
| 电路数 | 4, 6, 8, 10, 12, 16 | ||
文档与媒体
相关型号
90327-0310
molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Bag 10 way IDT housing,1.27mm pitch Headers & Wire Housings PF-50 IDT RECPT 10P CONNECTOR, PICOFLEX, 10WAY Female connector 10P, 90327-0310, Molex Molex PICOFLEX 系列 2行 10路 1.27mm节距 直角 电缆安装 母 IDC 连接器
90327-0306
molex
Conn IDC Connector RCP 6 POS 2.54mm IDT RA Cable Mount Bag 6 way IDT housing,1.27mm pitch Headers & Wire Housings PF-50 IDT RECPT 6P CONNECTOR, PICOFLEX, 6WAY Female connector 6P, 90327-0306, Molex Molex PICOFLEX 系列 2行 6路 1.27mm节距 直角 电缆安装 母 IDC 连接器
90327-0308
molex
Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Bag 8 way IDT housing,1.27mm pitch Headers & Wire Housings PF-50 IDT RECPT 8P CONNECTOR, PICOFLEX, 8WAY Female connector 8P, 90327-0308, Molex Molex PICOFLEX 系列 2行 8路 1.27mm节距 直角 电缆安装 母 IDC 连接器
90325-0008
molex
Conn Ribbon Cable Connector HDR 8 POS 1.27mm Solder ST Thru-Hole Bag 8 way through board header,1.27mm pitch Headers & Wire Housings PICOFLEX 8P HDR LOPRO SN Straight header 8P, 90325-0008, Molex Molex PICOFLEX 系列 8路 1.27mm节距 通孔 公 IDC 连接器
90327-0304
Molex Connector Corporation
CONN RECEPT IDT 4POS 1.27MM TIN 4 way IDT housing,1.27mm pitch Headers & Wire Housings 4CKT IDT RECEPT Conn IDC Connector RCP 4 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 4WAY 1.27MM PF CONN LOPRO IDT WHT 2SN 4CKT Female connector 4P, 90327-0304, Molex Molex PICOFLEX 系列 2行 4路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装
90327-0312
Molex Connector Corporation
CONN RECEPT IDT 12POS 1.27MM TIN 12 way IDT housing,1.27mm pitch Headers & Wire Housings PICOFLEX 12P HSG LOPRO IDT SN Conn IDC Connector RCP 12 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 12WAY Female connector 12P, 90327-0312, Molex Molex PICOFLEX 系列 2行 12路 1.27mm节距 直角 电缆安装 母 IDC 连接器

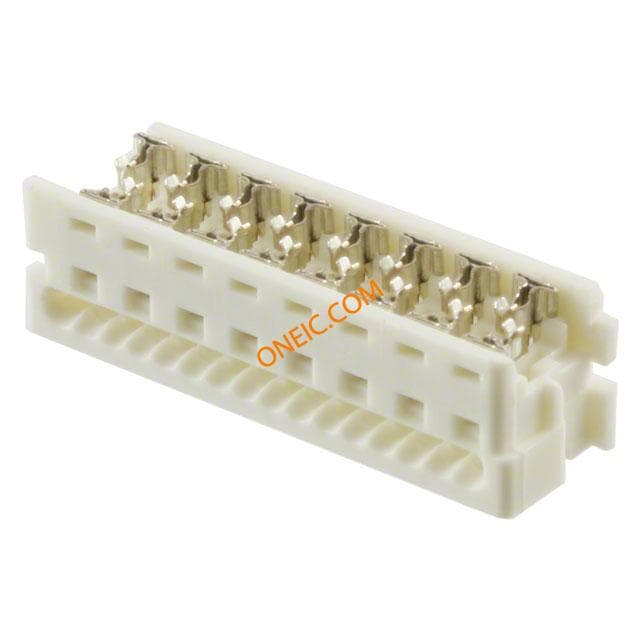

90327-0316
Molex Connector Corporation
CONN RECEPT IDT 16POS 1.27MM TIN 16 way IDT housing,1.27mm pitch low prof Headers & Wire Housings 16CKT IDT RECEPT Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 16WAY Female connector 16P, 90327-0316, Molex Molex PICOFLEX 系列 2行 16路 1.27mm节距 直角 电缆安装 母 IDC 连接器

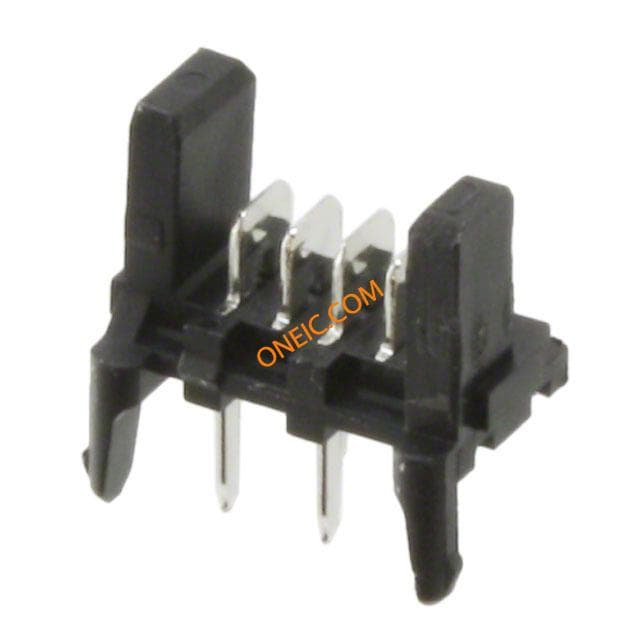

90325-0004
