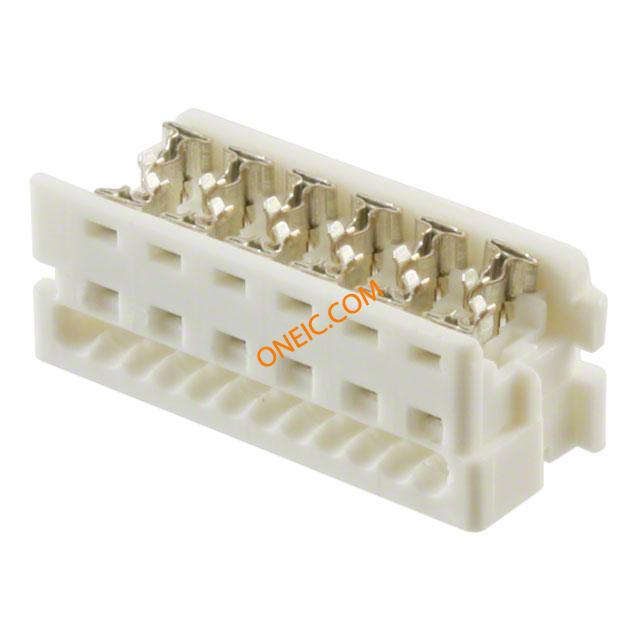

90327-0312
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT IDT 12POS 1.27MM TIN 12 way IDT housing,1.27mm pitch Headers & Wire Housings PICOFLEX 12P HSG LOPRO IDT SN Conn IDC Connector RCP 12 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 12WAY Female connector 12P, 90327-0312, Molex Molex PICOFLEX 系列 2行 12路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0903270312 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 250 V | 极数 | :12 |
| 接触电阻 | :10mohm | 击穿电压 | :750V |
| 最大额定电流 | 1.2A | 触点额定电流 | :1.2A |
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 宽度 | :13.97mm | 重量 | 0.073 |
| 材料（通用） | :Polyester | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | PET |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 连接器颜色 | :White | 触点数 | 12 |
| 接触件端接 | :IDC / IDT | 位数 | 12 |
| 接触镀层厚度 | 78.7µin (2.00µm) | 线规或范围 - AWG | :28AWG |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 连接器性别 | Female | 系列 | 90327 |
| 产品特性 | Feed Through | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

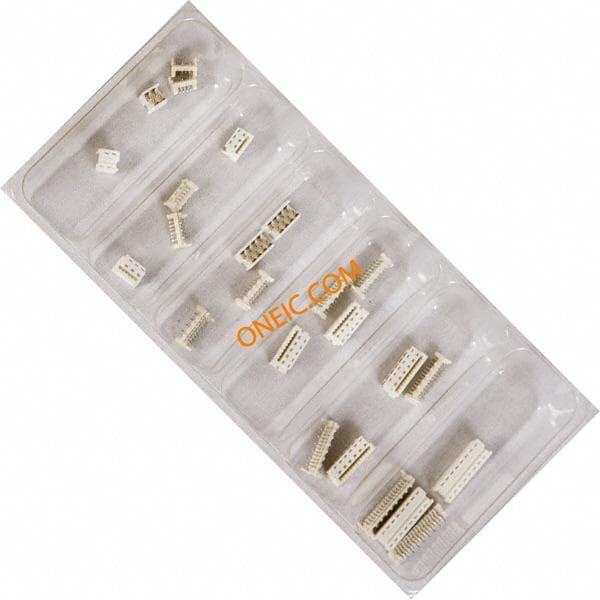

76650-0123
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,16,4,6,8POS 1.2A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX VERT 1.27MM ASSORTE Headers & Wire Housings PICOFLEX CONN KIT VERT Kit Description:SMT Vertical Header and IDT ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:24 PICOFLEX CONNECTOR KIT SMT VERT HEADER & IDT RECEPT
70246-1202
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 12POS .100 VERT GOLD Headers & Wire Housings 2.54mm CGrid Hdr Shr d /Slt .76AuLF 12Ckt
69008-1090
molex
Connector Accessories Picoflex Connector IDT Hand Tool Crimpers HAND CRIMP 04-26P PICOFLEX Hand tool-Picoflex PF-50 IDT receptacles HAND TOOL, IDT Handtool, 69008-1090, Molex Molex HANDTOOL 系列 IDT 压接工具 , 适用于28 → 26 AWG 线规格
62100-6000
molex
PICOFLEX EXTRACTION TOOL Hand Tools PICOFLEX EXTRACTION TOOL Punches & Dies PICOFLEX EXTRACTION TOOL TOOL, PICOFLEX, EXTRACTION Dismantle tool, 62100-6000, Molex
90325-3012
molex
Conn Ribbon Cable Connector HDR 12 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 12POS 1.27MM GOLD Header 1.27mm, RA, low pro,12w,pcb peg Headers & Wire Housings PICOFLEX PF-50 HDR 12 CKT Molex PICOFLEX 系列 12路 1.27mm节距 公 IDC 连接器 , 通孔
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584

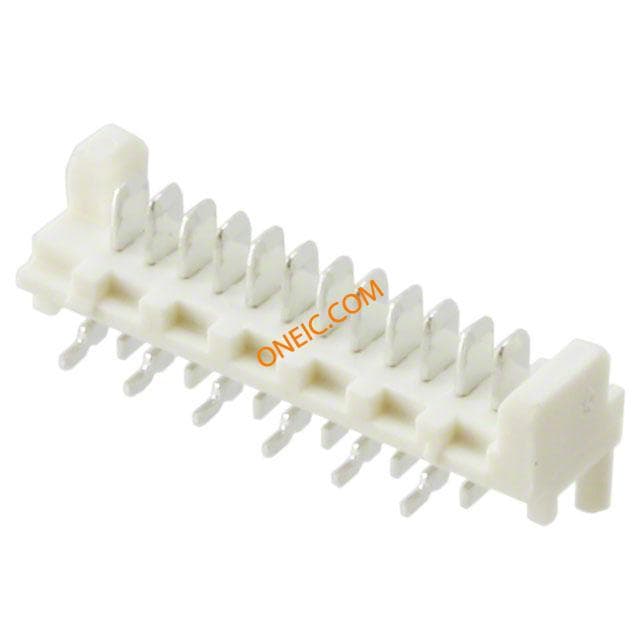

0908140812
Molex
Conn Ribbon Cable Connector HDR 12 POS 2.54mm Solder ST SMD Tube CONN HEADER 12POS 1.27MM SMD TIN

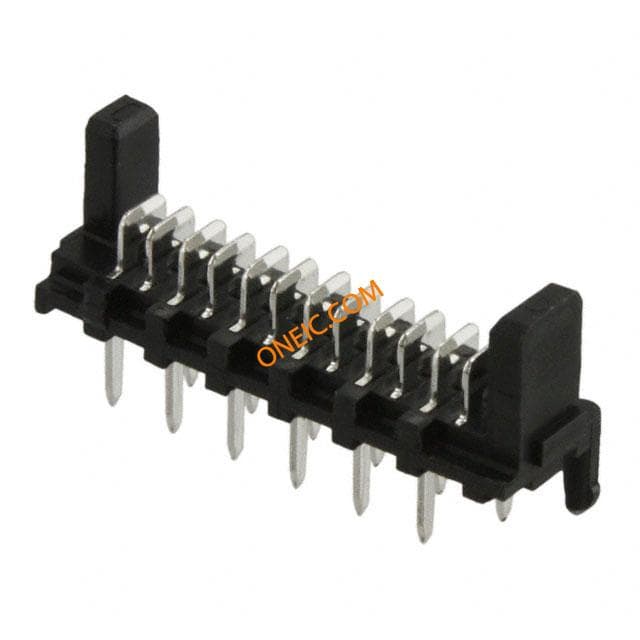

0903250012
Molex Inc
CONN HEADER 12POS 1.27MM TIN Conn Ribbon Cable Connector HDR 12 POS 1.27mm Solder ST Thru-Hole Bag Connector: wire-board; PicoFlex; socket; male; 12; tinned; 1.2A

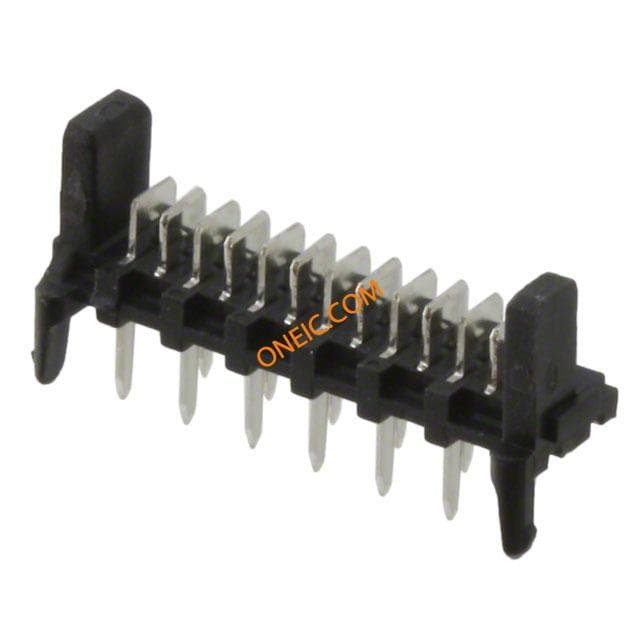

90325-9012
Molex Connector Corporation
CONN HEADER 12POS 1.27MM TIN T/H Conn Ribbon Cable Connector HDR 12 POS 1.27mm Solder ST Thru-Hole Tube

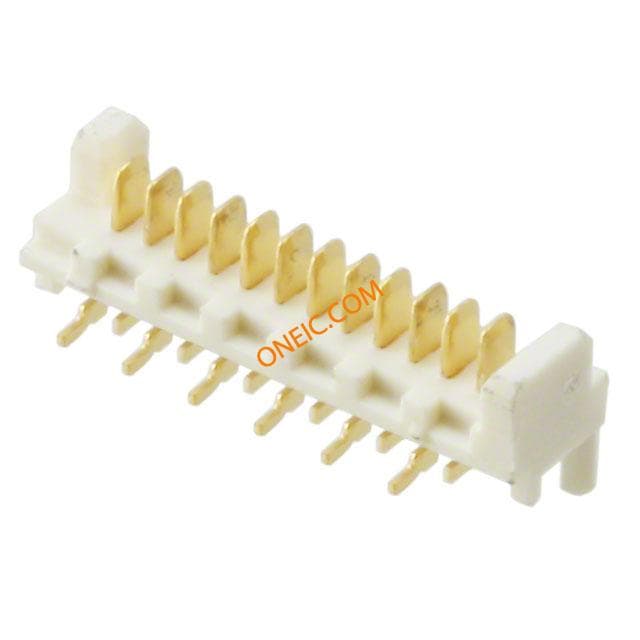

90814-3812
Molex Connector Corporation
CONN HEADER 12PS 1.27MM SMD GOLD Headers & Wire Housings 1.27MM HDR 12P VT SMT LOPRO AU Conn Ribbon Cable Connector HDR 12 POS 2.54mm Solder ST SMD Tube

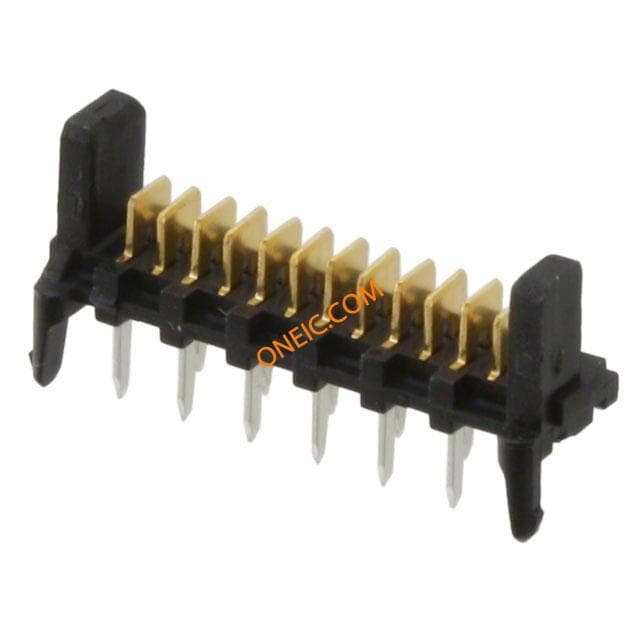

90325-7012
