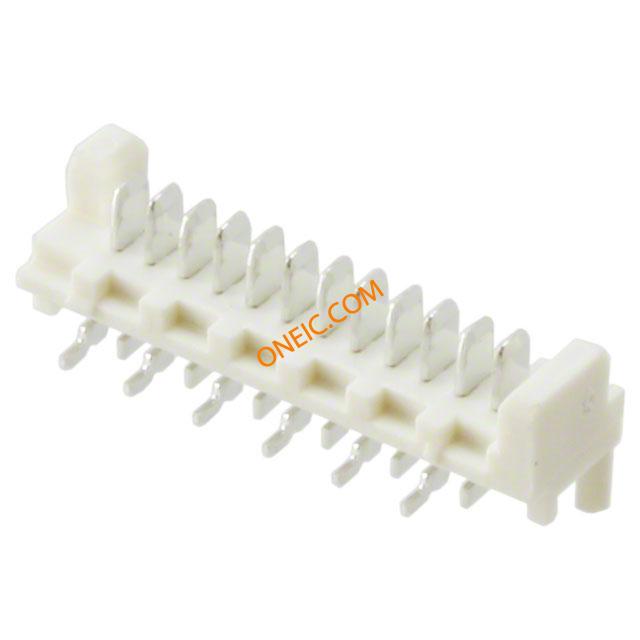

点击放大查看
0908140812
| 制造商 | Molex, LLC |
| 描述 | Conn Ribbon Cable Connector HDR 12 POS 2.54mm Solder ST SMD Tube CONN HEADER 12POS 1.27MM SMD TIN |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 mohm | 最大额定电流 | 1.2/Contact A |
| 最小输入电压 | 250VDC|250VAC | 最小供电电压 | 250VDC/250VAC |
机械参数
| 颜色 | Natural | 深度 | 6.9 mm |
| 间距 | 0.050" (1.27mm) | 高度 | 5.15 mm |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Blade Pin | 外壳颜色 | Beige |
| 安装类型 | Straight | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Nickel | 安装样式 | Surface Mount |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon 4/6 | 总长度 | 19.02 mm |
| 第一触头极性 | HDR | 触点数 | 12 |
| 位数 | 12 | 接触长度 - 配合 | 0.085" (2.15mm) |
| 接触镀层厚度 | 118.1µin (3.00µm) | ||
产品信息
| 类型 | Ribbon Cable Connector | 已删除 | Compliant |
| 产品特性 | Board Guide | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | ||
相关型号
0903273368
molex
Conn IDC Connector RCP 12 POS 2.54mm IDT RA Cable Mount Bag 1.27MM PF LOPRO IDT RL-B WHT
0903270370
molex
Conn IDC Connector RCP 12 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT
0903270312
molex
Conn IDC Connector RCP 12 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 12POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 12; tinned; 1.2A
76650-0123
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,16,4,6,8POS 1.2A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX VERT 1.27MM ASSORTE Headers & Wire Housings PICOFLEX CONN KIT VERT Kit Description:SMT Vertical Header and IDT ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:24 PICOFLEX CONNECTOR KIT SMT VERT HEADER & IDT RECEPT
90327-0312
Molex Connector Corporation
CONN RECEPT IDT 12POS 1.27MM TIN 12 way IDT housing,1.27mm pitch Headers & Wire Housings PICOFLEX 12P HSG LOPRO IDT SN Conn IDC Connector RCP 12 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 12WAY Female connector 12P, 90327-0312, Molex Molex PICOFLEX 系列 2行 12路 1.27mm节距 直角 电缆安装 母 IDC 连接器

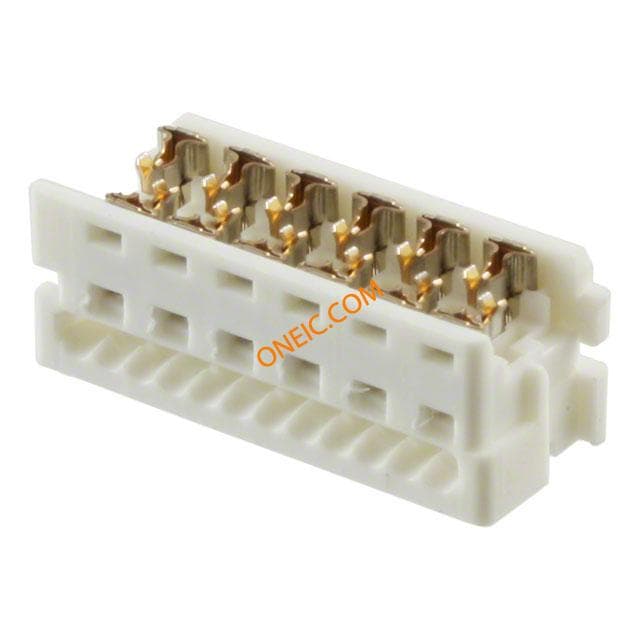

90327-3312
