点击放大查看

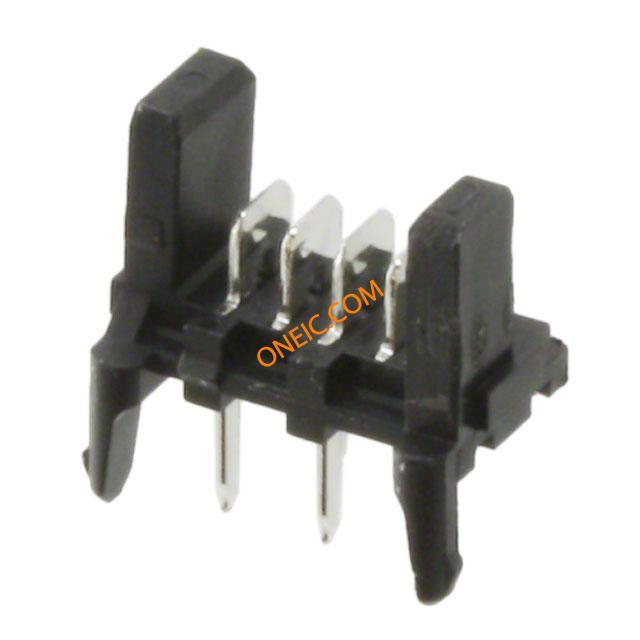

90325-0004
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 4POS 1.27MM TIN 4 way through board header,1.27mm pitch Headers & Wire Housings PICOFLEX 4P HDR LOPRO SN Conn Ribbon Cable Connector HDR 4 POS 1.27mm Solder ST Thru-Hole Bag HEADER, PICOFLEX, 4WAY Straight header 4P, 90325-0004, Molex Molex PICOFLEX 系列 4路 1.27mm节距 公 IDC 连接器 , 通孔 |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0903250004 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :MOLEX - Picoflex 90325 Series | 额定电压 | 250 V |
| 工作电压 | :250V | 接触电阻 | :10mohm |
| 击穿电压 | :750V | 最大额定电流 | 1.2A |
机械参数
| 颜色 | Black | 间距 | 0.050" (1.27mm) |
| 宽度 | :3.81mm | 重量 | 0.024 |
| 材料（通用） | :Polyester | 包装方式 | Bulk |
| 导线线规 | :26AWG | 端接方式 | Solder |
| 触头类型 | Blade Pin | 引脚间距 | :1.27mm |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | PBT |
| 端接样式 | Through Hole | 连接器颜色 | :Black |
| 触点数 | 4 | 接触件端接 | :Through Hole Vertical |
| 位数 | 4 | 接触镀层厚度 | 118.1µin (3.00µm) |
| 安装面板厚度 | :7.41mm | 线规或范围 - AWG | :28AWG |
产品信息
| 类型 | Unshrouded | 连接器性别 | Male |
| 系列 | 90325 | 产品特性 | Board Lock |
| CAD图纸 | 3D CAD Model | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号

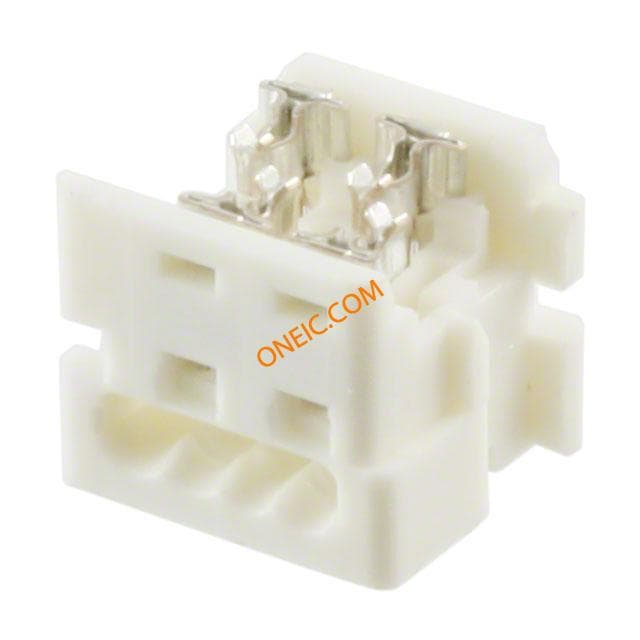

0903270304
molex
Conn IDC Connector RCP 4 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 4POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 4; tinned; 1.2A; 250V
0903273352
molex
Conn IDC Connector RCP 4 POS 2.54mm IDT RA Cable Mount Bag 1.27MM PF LOPRO IDT RL-B WHT
0903273351
molex
Conn IDC Connector RCP 4 POS 1.27mm IDT ST Cable Mount Bag 1.27MM PF LOPRO IDT RI-A WHT

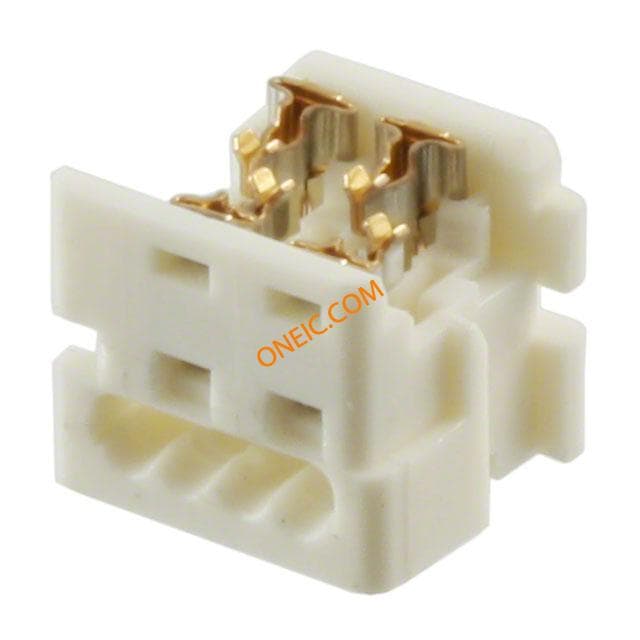

90327-3304
