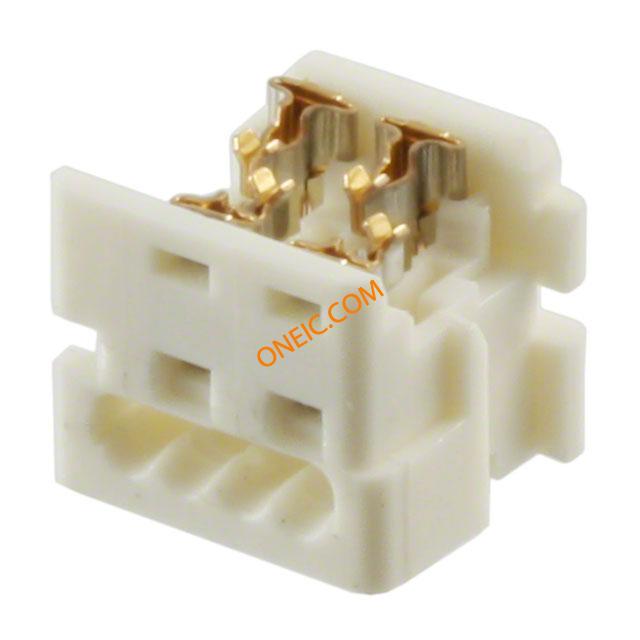

90327-3304
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 4 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 4POS 1.27MM GOLD 4 way IDT housing,1.27mm pitch low prof Headers & Wire Housings 4CKT IDT RECPT LO PROFILE CONNECTOR, 4WAY Picoflex IDT connector 4P, 90327-3304, Molex Molex PICOFLEX 系列 2行 4路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0903273304 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :MOLEX - Picoflex 90327 Series | 额定电压 | 250 V |
| 最大额定电流 | 1.2A | ||
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 重量 | 0.00001 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Palladium-Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | PET |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 触点数 | 4 | 接触件端接 | :IDC / IDT |
| 位数 | 4 | 接触镀层厚度 | 24µin (0.60µm) |
产品信息
| 连接器性别 | Female | 系列 | 90327 |
| 产品特性 | Feed Through | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
0903253004
molex
Conn Ribbon Cable Connector HDR 4 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 4POS 1.27MM GOLD
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

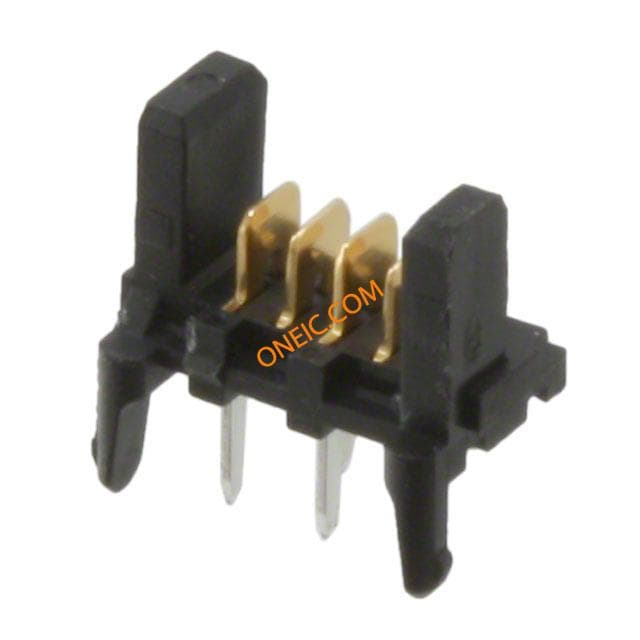

90325-7004
molex
Conn Ribbon Cable Connector HDR 4 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 4POS 1.27MM GOLD T/H

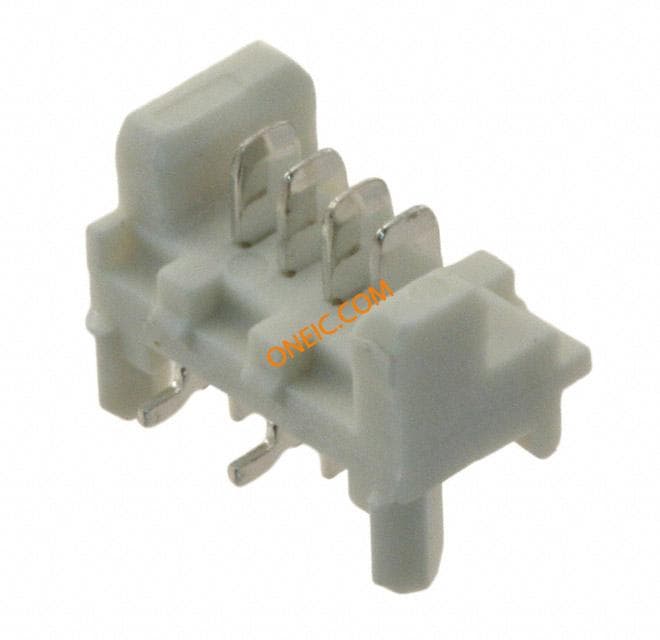

90814-0804
molex
Conn Ribbon Cable Connector HDR 4 POS 2.54mm Solder ST SMD Tube CONN HEADER 4POS 1.27MM SMD TIN Header 1.27mm,SMT, vert, low pro, 4w Headers & Wire Housings PF50 SMT HDR 4P HEADER, PICOFLEX, SMT, 4WAY Molex PICOFLEX 系列 4路 1.27mm节距 公 IDC 连接器 , 表面安装
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584

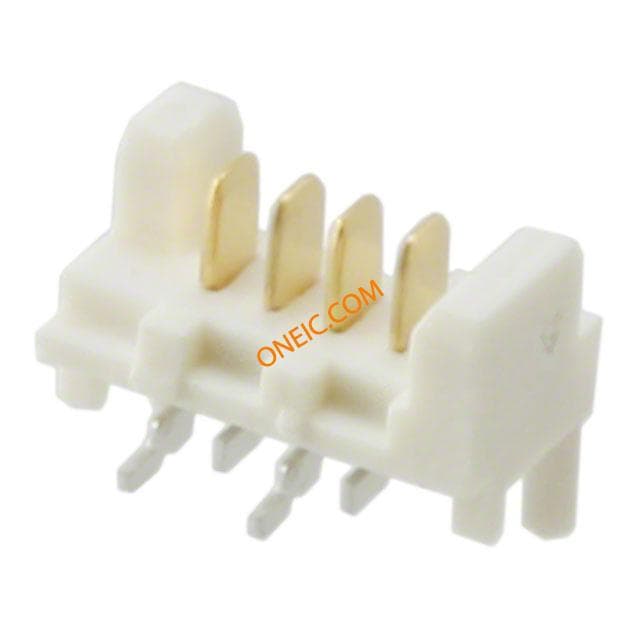

90814-3804
Molex Connector Corporation
CONN HEADER 4POS 1.27MM SMD GOLD Headers & Wire Housings 1.27MM 4P VERT HDR LO-PRO SMT,AU Conn Ribbon Cable Connector HDR 4 POS 2.54mm Solder ST SMD Tube
90325-0004
Molex Connector Corporation
CONN HEADER 4POS 1.27MM TIN 4 way through board header,1.27mm pitch Headers & Wire Housings PICOFLEX 4P HDR LOPRO SN Conn Ribbon Cable Connector HDR 4 POS 1.27mm Solder ST Thru-Hole Bag HEADER, PICOFLEX, 4WAY Straight header 4P, 90325-0004, Molex Molex PICOFLEX 系列 4路 1.27mm节距 公 IDC 连接器 , 通孔

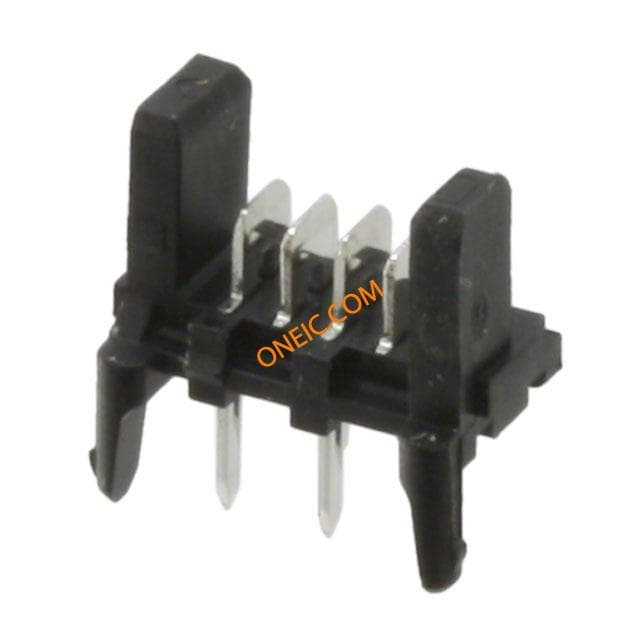

90325-9004
