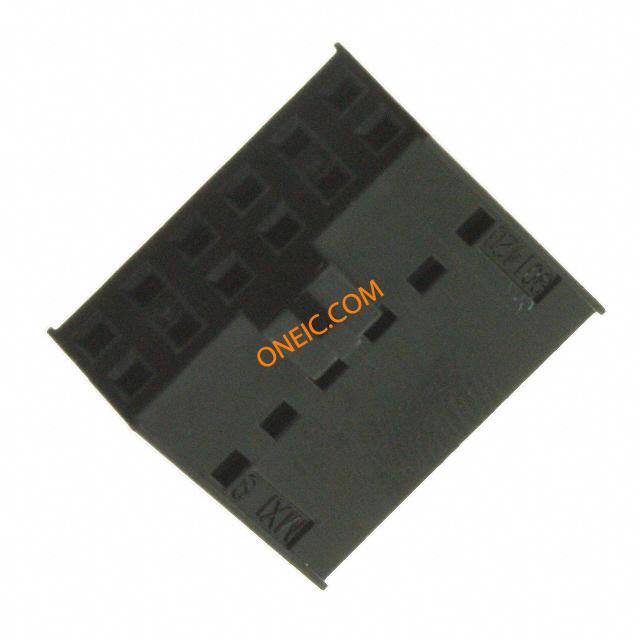

点击放大查看
0901420012
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 12 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 12POS .100" DUAL Conn Housing RCP 12 POS 2.54mm Crimp ST Bag Plug; wire-board; C-Grid III; female; PIN:12; w/o terminals; 2x6 |
| 分类 |
商业参数
| 交货时间 | 51 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 2,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压值 | 350V AC | 最大额定电流 | 3/Contact A |
| 最小输入电压 | 350VDC|350VAC | 最小供电电压 | 350V |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 7.72 mm |
| 重量 | 1 g | 包装方式 | Bag |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 柱间距 | 2.54mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | for cable |
| 排数 | 2 | 壳体材料 | Polyphenylene Oxide |
| 总长度 | 15.24 mm | 包装数量 | 2000 |
| 连接器 - 电缆 | plug | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
| 第一连接器安装特征 | 2x6 | ||
产品信息
| SPG | 2000 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | F |
| 已删除 | Compliant | 适配器系列 | C-Grid III |
| 单元数量 | 1 | 行业别名 | 90142-0012, 901420012 |
环境参数
| 工作温度 | -55C to 105C | ||
