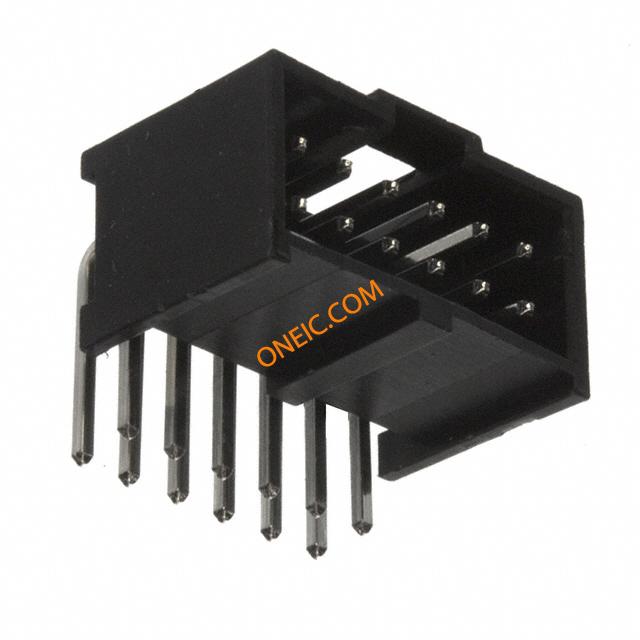

90130-3112
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 12POS .100" R/A TIN Molex 90130 Series 2.54mm Pitch 12 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tray HEADER, 12POS, 2ROW, 2.54MM Molex C-GRID III 系列 2.54mm节距 12路 (2排) 直角 PCB 针座, 焊接端接, 3A , 通孔 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366930 |
电气参数
| 量程（°/s） | :MOLEX - C-Grid III 90130 Series | 额定电压 | 350 V ac/dc |
| 最大额定电流 | 3A | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 重量 | 0.02 | 包装方式 | Tray |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Brass |
| 触点数 | 12 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 12 | 接触长度 - 配合 | 0.266" (6.75mm) |
| 接触镀层厚度 | 160µin (4.06µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | :Header |
| 系列 | 90130 | CAD图纸 | 3D CAD Model |
| 加载位置数 | All | ||
