08-50-0114
| 制造商 | Molex, LLC |
| 描述 | Molex KK 2.54mm crimp terminal Headers & Wire Housings CRIMP TERM 22-30 TIN Contact SKT Crimp ST Cable Mount Bag TERMINAL, SOLDERLESS, 22-30 AWG Contact; Socket; For0.100In.KKSeries; 30-22AWG; Crimp; TinPlat; BrassCnt; 2759Series Molex KK 254 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0008500114 08-50-0114-Z 2759-(P909)L 8500114 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 工作电压 | :250V |
| 最大额定电流 | 3 A | ||
机械参数
| 重量 | 0.12 | 导线线规 | 30-22 |
| 触点尺寸 | :22 | 接触镀层 | Tin |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :30AWG | ||
产品信息
| 连接器性别 | :Socket | 系列 | 2759 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :2695, 5051 Series Housing Connectors |
文档与媒体
相关型号

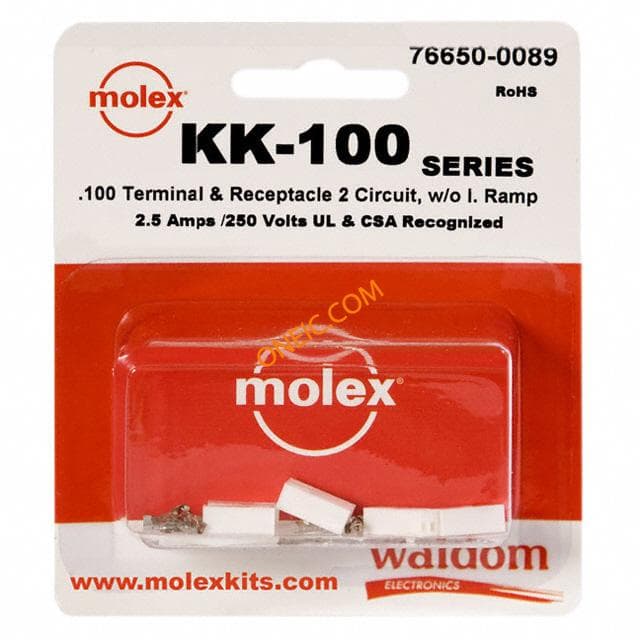

76650-0089
Molex Connector Corporation
KIT CONN .100 KK SERIES 2 CIRC KK-100 Connector Kit Kit Description:.100 Pitch Receptacle and Terminals, 2 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:16 KK-100 CONNECTOR KIT .100 PITCH RECEPT & TERMINALS, 2 CKT

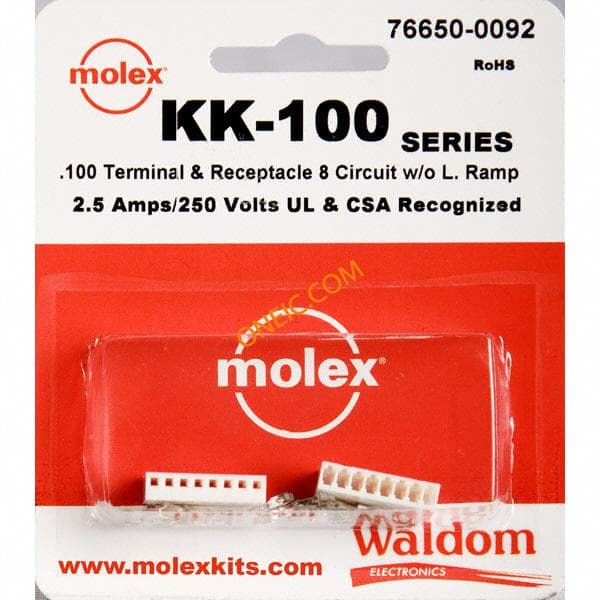

76650-0092
Molex Connector Corporation
KIT CONN .100 KK SERIES 8 CIRC Headers & Wire Housings KK-100 Connector Kit Recep and term 8Ckt KK-100 Connector Kit Kit Description:.100 Pitch Receptacle and Terminals, 8 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:19 KK-100 CONNECTOR KIT .100 PITCH RECEPT & TERMINALS, 8 CKT

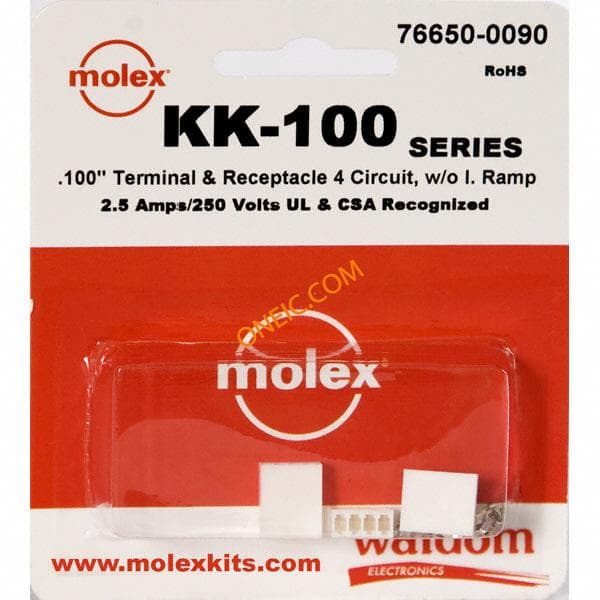

76650-0090
Molex Connector Corporation
KIT CONN .100 KK SERIES 4 CIRC Headers & Wire Housings KK-100 Connector Kit Recep and term 4Ckt KK-100 Connector Kit Kit Description:.100 Pitch Receptacle and Terminals, 4 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:16 KK-100 CONNECTOR KIT .100 PITCH RECEPT & TERMINALS, 4 CKT

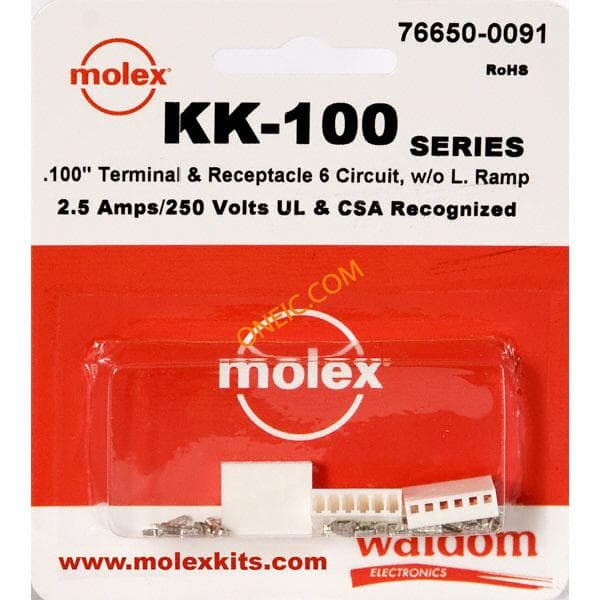

76650-0091
Molex Connector Corporation
KIT CONN .100 KK SERIES 6 CIRC Headers & Wire Housings KK-100 Connector Kit Recep and term 6Ckt Kit For Wire-To-Board Connectors, Non-Mounted Kit Description:.100 Pitch Receptacle and Terminals, 6 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:22 KK-100 CONNECTOR KIT .100 PITCH RECEPT & TERMINALS, 6 CKT

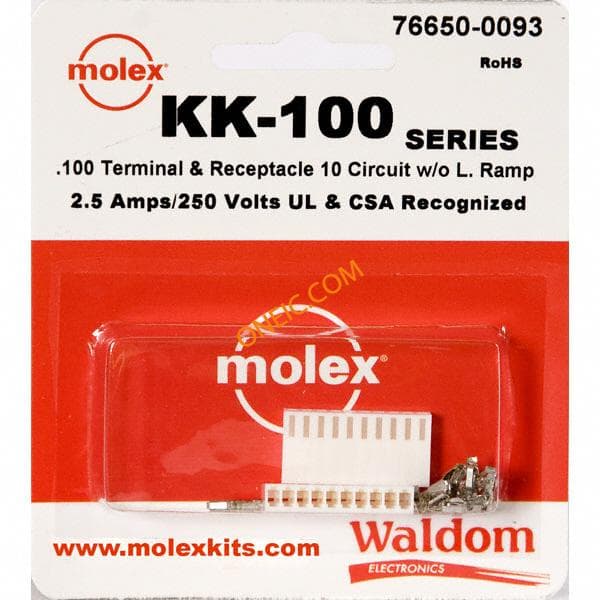

76650-0093
Molex Connector Corporation
KIT CONN .100 KK SERIES 10 CIRC Headers & Wire Housings KK-100 Connector Kit Recep and term 10Ckt KK-100 Connector Kit Kit Description:.100 Pitch Receptacle and Terminals, 10 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:23 KK-100 CONNECTOR KIT .100 PITCH RECEPT & TERMINALS, 10 CKT

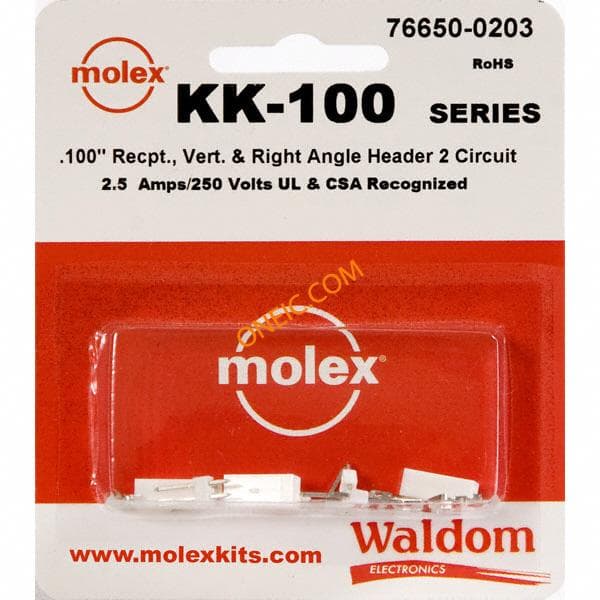

76650-0203
Molex Connector Corporation
KIT WMLX-141 Headers & Wire Housings KK100 PK VERT-R/A 2CKT KK-100 Connector Kit Kit Description:.100 Pitch Vertical and Right Angle Header and Receptacle, 2 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:15 KK-100 CONNECTOR KIT .100 PITCH, 2 CKT

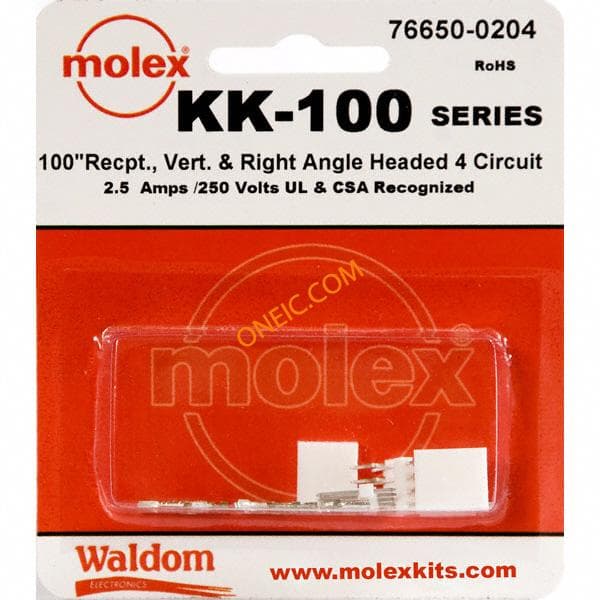

76650-0204
Molex Connector Corporation
KIT WMLX-142 KK-100 Connector Kit Kit Description:.100 Pitch Vertical and Right Angle Header and Receptacle, 4 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:15 KK-100 CONNECTOR KIT .100 PITCH , 4 CKT

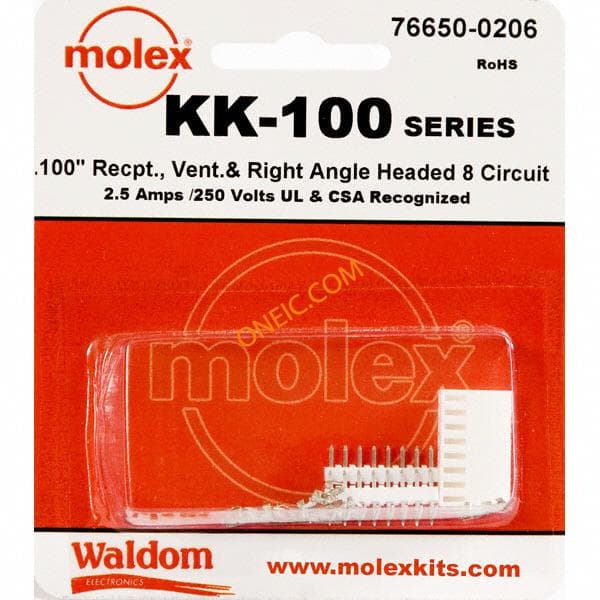

76650-0206
Molex Connector Corporation
KIT WMLX-144 KK-100 Connector Kit Kit Description:.100 Pitch Vertical and Right Angle Header and Receptacle, 8 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:12 KK-100 CONNECTOR KIT .100 PITCH, 8 CKT

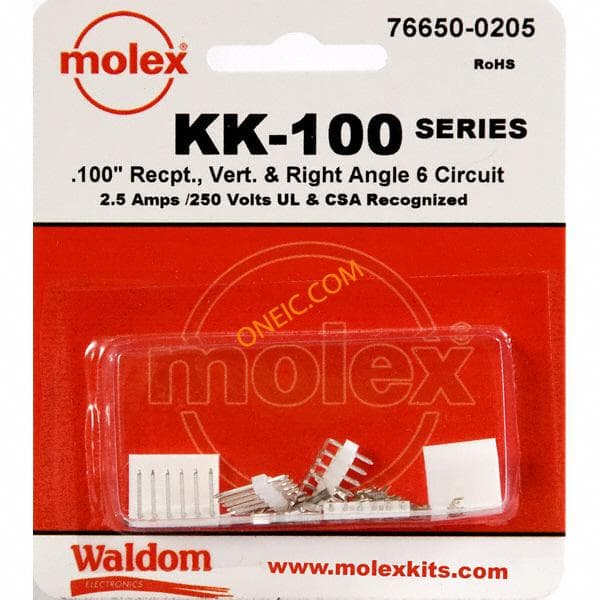

76650-0205
