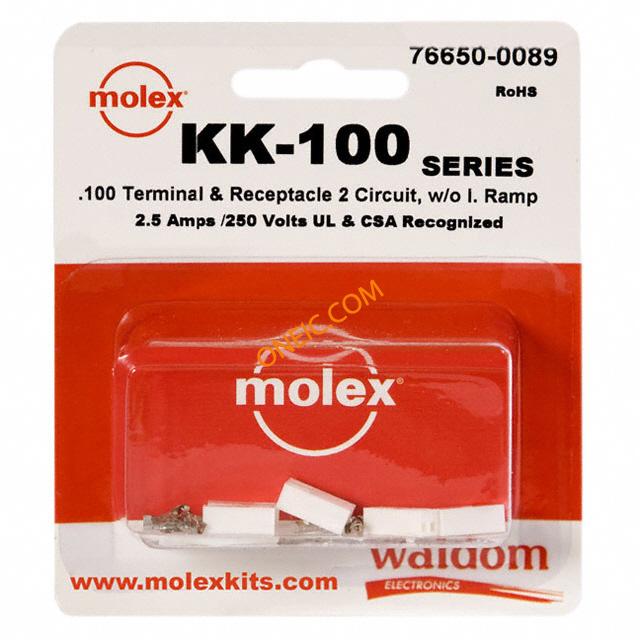

76650-0089
| 制造商 | Molex, LLC |
| 描述 | KIT CONN .100 KK SERIES 2 CIRC KK-100 Connector Kit Kit Description:.100 Pitch Receptacle and Terminals, 2 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:16 KK-100 CONNECTOR KIT .100 PITCH RECEPT & TERMINALS, 2 CKT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装规格 | 1 | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant Part | ||
电气参数
| 电压 | 250 V | 最大额定电流 | 2.5 A |
机械参数
| 间距 | 2.54 mm | 包装方式 | Plastic Packaging |
| 导线线规 | 30-22 | 连接器类型 | Receptacle, Terminals |
产品信息
| 类型 | KK Connecotr Kit | 值 | 16 pcs - 2 position Circuit Plug, Receptacle, 30 ~ 22 AWG Crimp Terminals |
| 套件类型 | Circuit Plug, Receptacle | 制造商全称 | 76650 |
| 配置 | Wire-to-Board | 应用细节 | Vending and Gaming Machines, Production Equipment, Industrial Instruments, Energy and Power |
