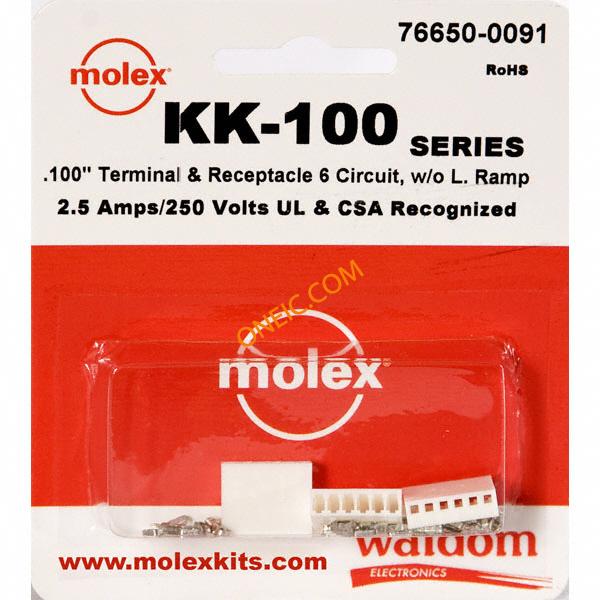

76650-0091
| 制造商 | Molex, LLC |
| 描述 | KIT CONN .100 KK SERIES 6 CIRC Headers & Wire Housings KK-100 Connector Kit Recep and term 6Ckt Kit For Wire-To-Board Connectors, Non-Mounted Kit Description:.100 Pitch Receptacle and Terminals, 6 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:22 KK-100 CONNECTOR KIT .100 PITCH RECEPT & TERMINALS, 6 CKT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | KK | 零件号别名 | 0766500091 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电压 | 250 V | 额定电压 | 250 V |
| 最大额定电流 | 2.5 A | ||
机械参数
| 间距 | 2.54 mm | 包装方式 | Plastic Packaging |
| 导线线规 | 30-22 | 连接器类型 | Receptacle |
| 端接样式 | SMD, Through Hole | 第一触头极性 | Socket (Female) |
产品信息
| 类型 | KK Connecotr Kit | 系列 | 76650 |
| 值 | 22 pcs - 6 position Circuit Plug, Receptacle, 30 ~ 22 AWG Crimp Terminals | 套件类型 | Circuit Plug, Receptacle |
| 制造商全称 | 76650 | 产品子类型 | Connector Kits |
| 配置 | Wire-to-Board | 电路数 | 6 |
| 应用细节 | Vending and Gaming Machines, Production Equipment, Industrial Instruments, Energy and Power | ||
