点击放大查看

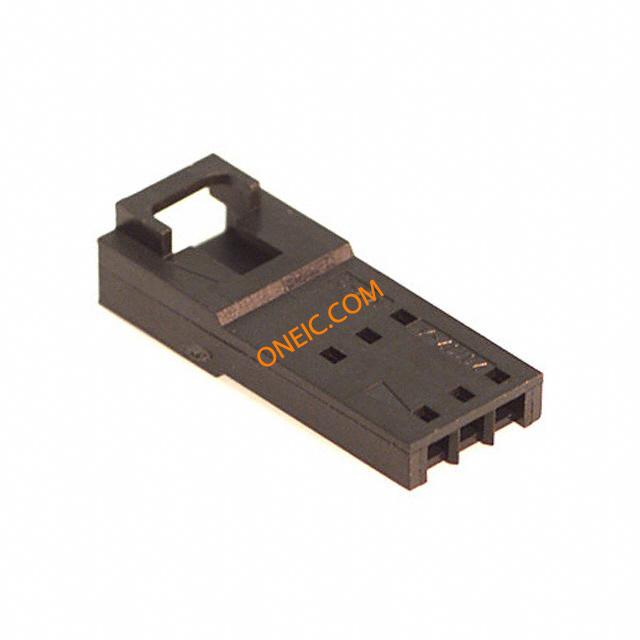

0701070002
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 3 POS 2.54mm Crimp ST Bag CONN HOUSING MALE 3POS .100 Connector: wire-wire; SL; plug; male; w/o terminals; PIN:3; 2.54mm sale |
| 分类 |
商业参数
| 交货时间 | 22 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 24.26 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 6 mm |
| 重量 | 0.7 g | 包装方式 | Bag |
| 触头类型 | Male Pin | 柱间距 | 2.54mm |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Holder |
| 安装样式 | for cable | 排数 | 1 |
| 锁定特性 | lock | 壳体材料 | Polyester |
| 总长度 | 9.65 mm | 包装数量 | 500 |
| 连接器 - 电缆 | plug | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
产品信息
| SPG | 500 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | F |
| 适配器系列 | SL | 单元数量 | 1 |
| 行业别名 | 70107-0002, 701070002 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0016020114
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-24AWG TIN
0016020077
molex
Contact PIN Crimp ST Cable Mount Reel CONN PIN 24-30AWG CRIMP 15GOLD
0016020107
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 22-24AWG TIN
0016020081
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 22-24AWG GOLD
0016020108
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG TIN

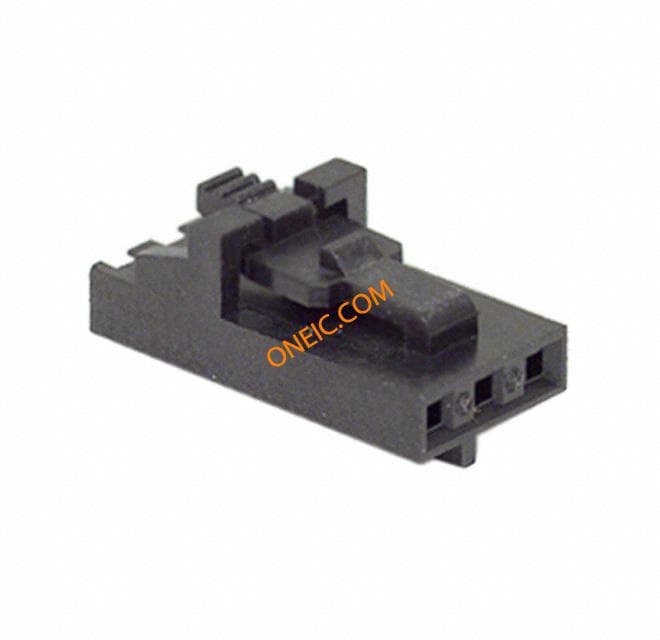

0050579403
molex
Conn Housing RCP 3 POS 2.54mm Crimp ST Panel Mount Bag CONN HOUSING 3POS .100 W/LATCH
0016020112
molex
Contact PIN Crimp ST Cable Mount Bag SL TERM CRP M 15 SAU 32-36
0016020109
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag
0016020117
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-24AWG GOLD
0016020116
Molex
Contact PIN Crimp ST Cable Mount Reel CONN PIN 22-24AWG CRIMP 30GOLD

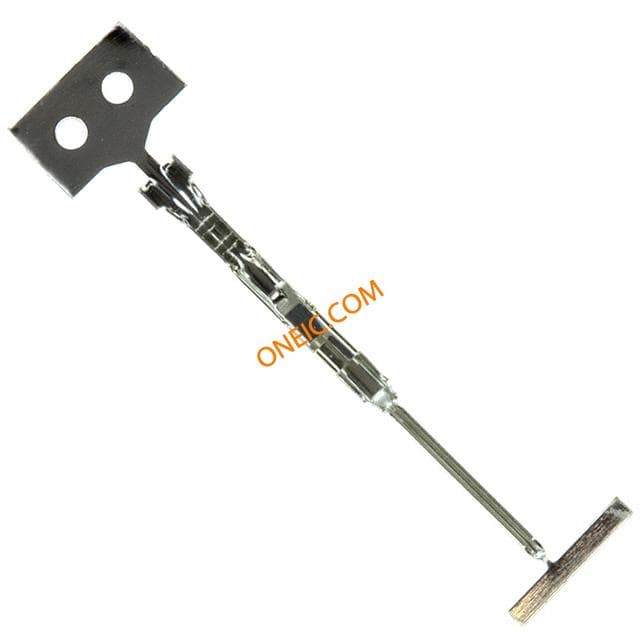

0016020105
Molex
Contact PIN Crimp ST Cable Mount Reel CONN PIN 24-30AWG CRIMP TIN
0700210081
Molex
SL TERM CRP M 15 SAU 22-24 REE SL TERM CRIMP M GOLD 22-24AWG
0016020079
Molex
Contact PIN Crimp ST Cable Mount Reel CGRID SL CRP TERM M 15SAU 32-36
0016020111
Molex
Contact PIN Crimp ST Cable Mount Bag SL TERM CRP M 32-36 TIN

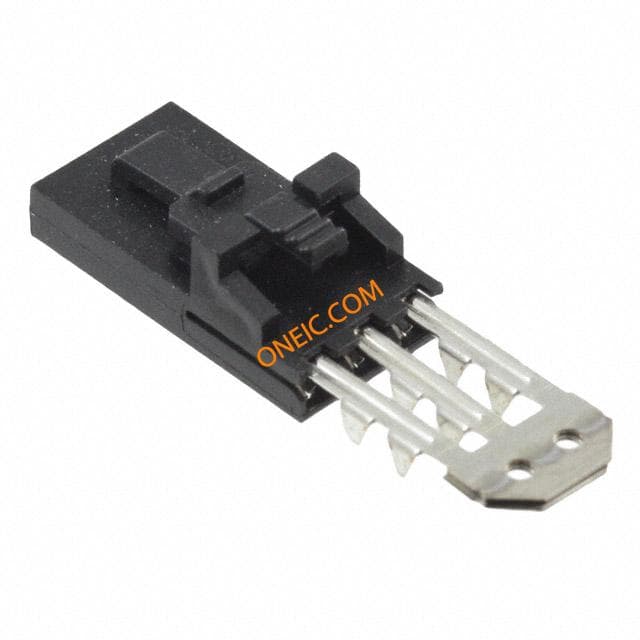

15-38-8030
