点击放大查看

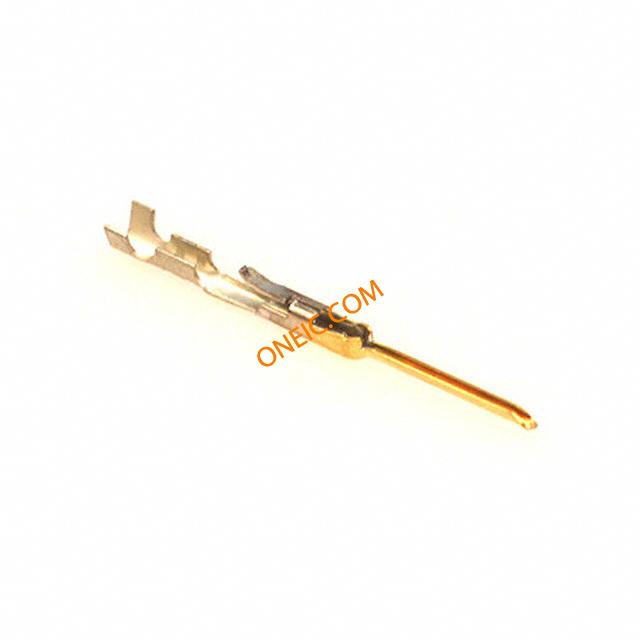

0016020109
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 交货时间 | 43 Days | 子类别 | Connector Contact |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 mohm | 最大额定电流 | 3 A |
| 最小供电电压 | 250V | ||
机械参数
| 深度 | 2.03 mm | 间距 | Not Required mm |
| 高度 | 2.18 mm | 包装方式 | Bag |
| 导线线规 | 24-30 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |

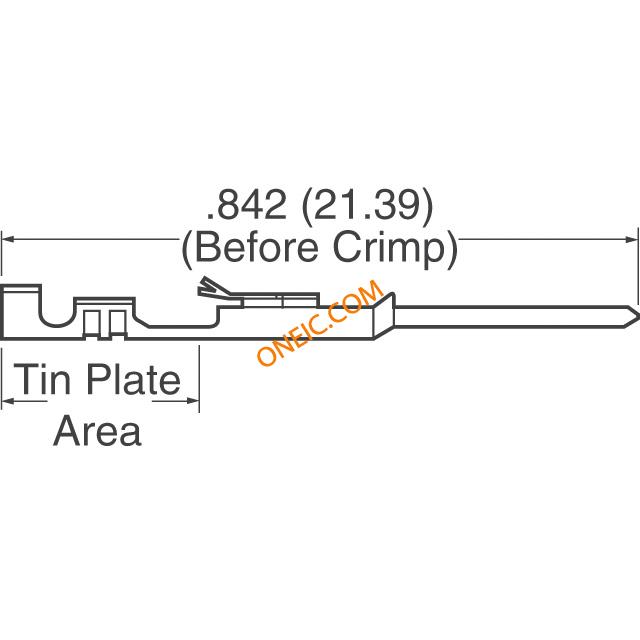

| 总长度 | 21.39 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 行业别名 | 16-02-0109, 16020109 | 适用产品/相关产品 | 0016020077 |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0701070023
molex
Conn Housing F 24 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT A 24POS
0701070048
molex
Conn Housing M 14 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT B 14POS
0701070053
molex
Conn Housing M 19 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT B 19POS
0638118800
molex
Hand Crimp Tool - UL Approved Hand Crimp Tool TOOL 24-30 AWG CRIMP C-GRID Tool: for crimping; terminals; 24÷30AWG
0701070046
molex
Conn Housing M 12 POS 2.54mm Crimp ST Panel Mount Bag SL WTW CONN SR OPT B 12POS
0701070058
molex
Conn Housing M 24 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT B 24POS
0701070004
molex
Conn Housing F 5 POS 2.54mm Crimp ST Bag CONN HOUSING MALE 5POS .100
0011030036
molex
Extraction Tool TOOL HAND EXTRACTION Tool: for demounting of terminals; terminals
0701070107
molex
Conn Housing F 3 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT D 3POS
0701070009
molex
Conn Housing F 10 POS 2.54mm Crimp ST Bag Conn Housing F 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING MALE 10POS .100
0701070078
molex
Conn Housing F 9 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT C 9POS
0701070055
Molex
Conn Housing M 21 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT B 21POS
0701070017
Molex
Conn Housing F 18 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT A 18POS
0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX
0701070077
Molex
Conn Housing F 8 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT C 8POS
0701070002
Molex
Conn Housing F 3 POS 2.54mm Crimp ST Bag CONN HOUSING MALE 3POS .100 Connector: wire-wire; SL; plug; male; w/o terminals; PIN:3; 2.54mm sale
0701070050
Molex
Conn Housing M 16 POS 2.54mm Crimp ST Panel Mount Bag SL WTW CONN SR OPT B 16POS
0011020022
Molex
Light Weight Hand Insertion Tool TOOL HAND INSERTION Tool: for crimping; terminals; Application: MX-71851 sale
0701070059
Molex
Conn Housing M 25 POS 2.54mm Crimp ST Panel Mount Bag SL WTW CONN SR OPT B 25POS

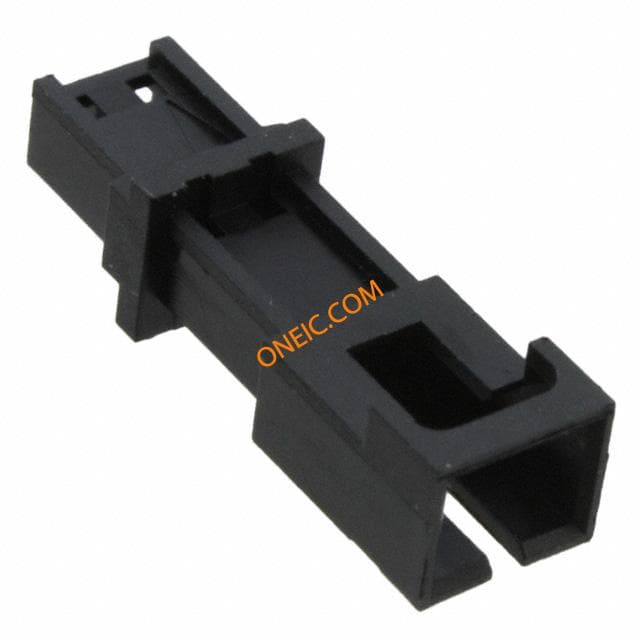

70107-0071
