点击放大查看

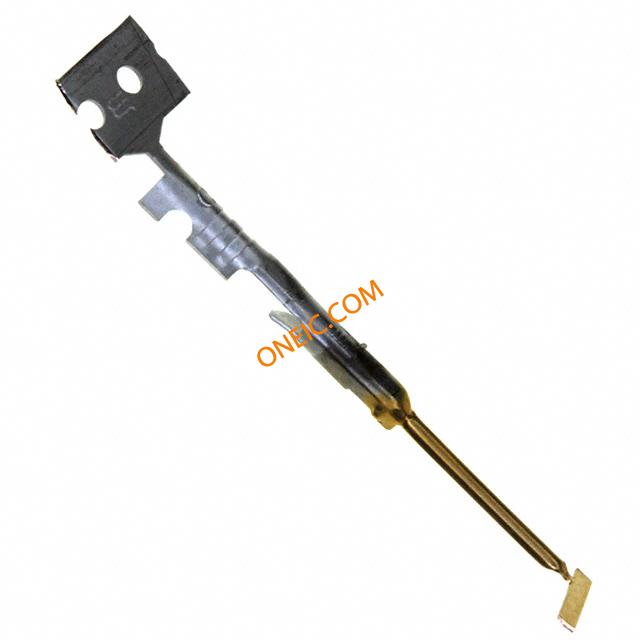

0016020081
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 22-24AWG GOLD |
| 分类 |
商业参数
| 其他名称 | WM2515CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 | 最大额定电流 | 3 |
机械参数
| 包装方式 | Reel | 导线线规 | 22-24 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 触头材料 | Phosphor Bronze |
| 总长度 | 21.39 | 接触件端接 | Crimp |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 连接器性别 | PIN | ||
