点击放大查看

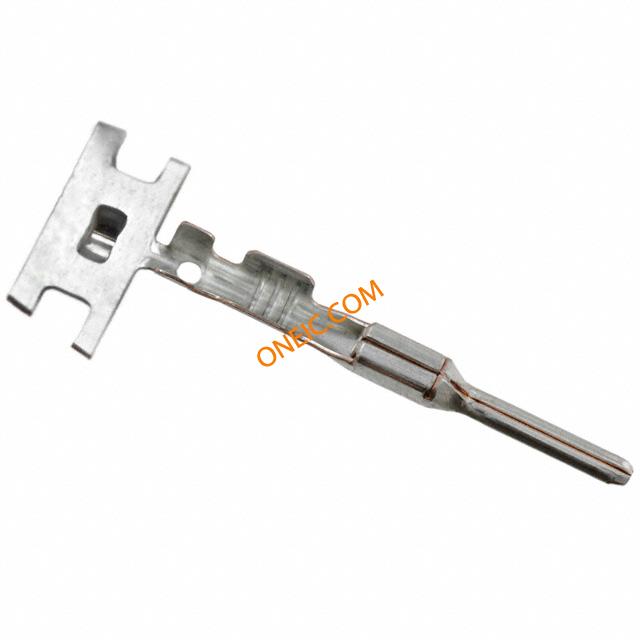

0330000002
| 制造商 | Molex, LLC |
| 描述 | Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel TERM MALE TIN 16-20AWG CRIMP Contact; male; 16÷20AWG; MX150; tinned; crimped; for cable; 22A |
| 分类 |
商业参数
| 其他名称 | WM3694CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 22 A | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | left reel payoff | ||
机械参数
| 间距 | Not Required mm | 重量 | 0.37 g |
| 包装方式 | Reel | 导线线规 | 16-20 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Tin | 安装样式 | Cable |
| 触头材料 | High Performance Alloy | 壳体材料 | Not Required |
| 总长度 | 16.8 | 包装数量 | 7500 |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 触点数 | 1 | 接触件端接 | Crimp |
| 接触镀层厚度 | 20µin (0.51µm) | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 7500 | 类型 | Contact |
| 连接器性别 | PIN | 系列 | MX150 |
| 适配器系列 | MX150 | 单元数量 | 10 |
环境参数
| 工作温度 | -40C to 125C | ||
