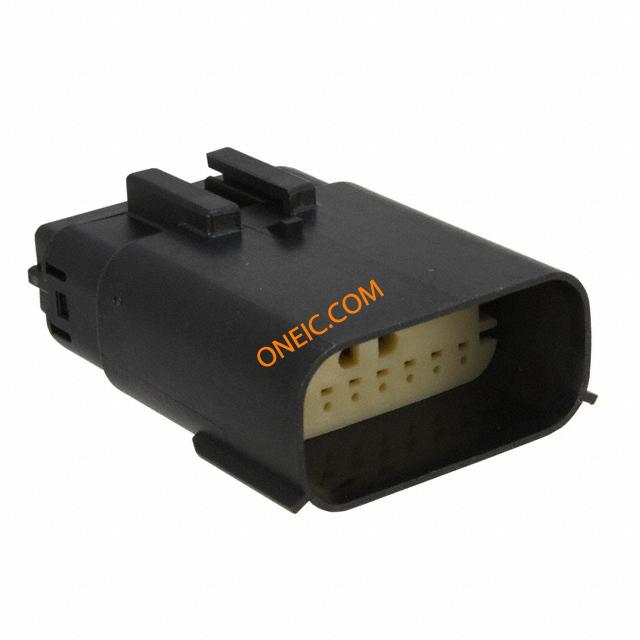

33482-1601

制造商	Molex, LLC
描述	Automotive Connectors MX150 2X8P MALE PLG POLAR A W/O CPA CONN PLUG 16POS DUAL BLACK 3.50mm Pitch MX150™ Sealed Male Connector, Dual Row, 16 Circuits, Polarization A, without Connector Position Assurance, Black RECTANGULAR POWER HOUSING, PLUG, CABLE
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

产品	Connectors	商标名	MX150
零件号别名	0334821601	产品类别	Automotive Connectors
标准包装数量	1	工厂包装数量	300

合规参数

RoHS

RoHS Compliant

海关税号

85366990

电气参数

最大额定电流

22 A

机械参数

颜色	Black	间距	0.138" (3.50mm)
重量	0.02	包装方式	Bulk
触头类型	Male Pin	安装类型	Free Hanging (In-Line)
连接器类型	Plug	紧固类型	Locking Ramp
安装样式	Wire	排数	2
锁定特性	:-	本体材料	:Polystyrene (PS)
壳体材料	Polystyrene (PS)	端接样式	Crimp
接触件端接	Crimp	位数	16
外壳尺寸-插件	:-	第一连接器安装类型	:Cable

产品信息

备注	Contacts Not Provided	连接器性别	Male
系列	33482	产品特性	Sealed
适用产品/相关产品	:33000 MX150, 33011 Male Terminals, 34345-0001 MLX 150 Cavity Plug Sealed Housings

环境参数

工作温度

- 40 C to + 125 C

文档与媒体

PDF 文档

33482-161

PDF 文档

0334821601_CRIMP_HOUSINGS.pdf
