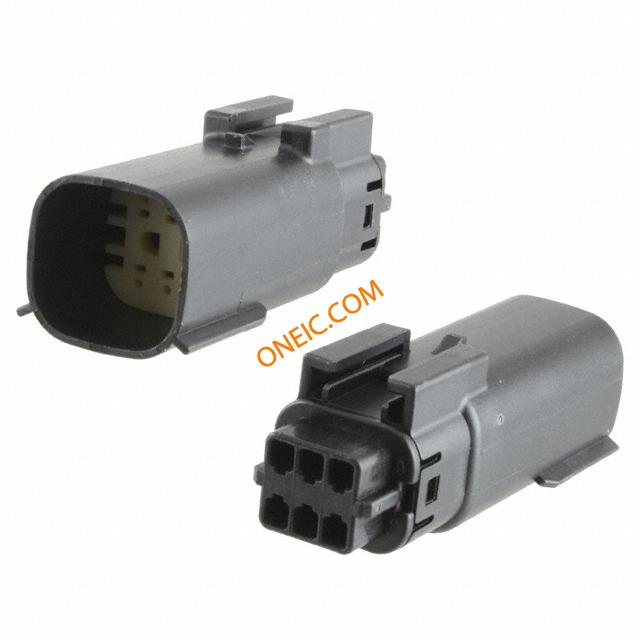

33482-0601

制造商	Molex, LLC
描述	Automotive Connectors 2X3 1.5 BLD BLK A/6 CONN PLUG 6POS DUAL BLACK Conn Housing RCP 6 POS 3.5mm Crimp ST Cable Mount Bag Molex MX150 系列 2 行 3.5mm 节距 6 路直公电缆安装压接连接器外壳
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

商业参数

产品	Connectors	商标名	MX150
零件号别名	0334820601	产品类别	Automotive Connectors
标准包装数量	1	工厂包装数量	950

合规参数

RoHS

RoHS Compliant

电气参数

最大额定电流

22 A

连接器类型 - 电压输入

Crimp

机械参数

颜色	Black	深度	55.85mm
间距	0.138" (3.50mm)	宽度	22.13mm
长度	18.94mm	包装方式	Bulk
方向	直	触点形式	Blade Pin
触头类型	Male Pin	安装类型	Free Hanging (In-Line)
连接器类型	Plug	紧固类型	Locking Ramp
安装样式	Wire	排数	2
壳体材料	Polystyrene (PS)	端接样式	Crimp
触点数	6	接触件端接	Crimp
位数	6

产品信息

备注	Contacts Not Provided	连接器性别	Male
系列	33482	产品特性	Sealed
主要用途	Sealed	基础产品编号	33482
输出配置	Free Hanging (In-Line)	适用产品/相关产品	金色插入式接线端子 33011、MLX 150 空心插头密封 34345-0001、MX150 底壳 34950-0620、MX150 底壳 34950-0640、MX150 锡插入式接线端子 33000

环境参数

工作温度

- 40 C to + 125 C

文档与媒体

PDF 文档

33482-061

PDF 文档

0334820601_CRIMP_HOUSINGS.pdf

相关型号

0330000002

molex

Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel TERM MALE TIN 16-20AWG CRIMP Contact; male; 16÷20AWG; MX150; tinned; crimped; for cable; 22A

¥0.2224

详情

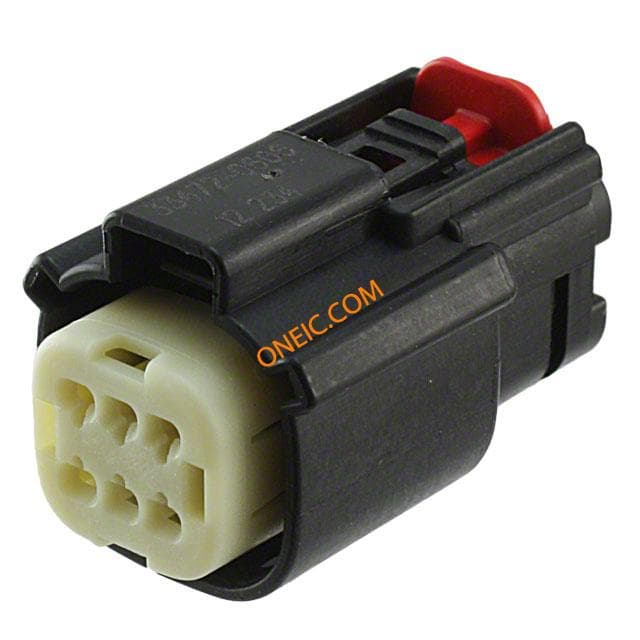

0334720606

Molex, LLC

Buy now, ships today. 0334720606 - 6 Position Rectangular Housing Connector Receptacle Black 0.138" (3.50mm) from Molex. View datasheets, pricing and availability from DigiKey now!

¥8.9869

详情

暂无图片

0330111004

molex

Conn Contact M Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel CONN BLD TERM GOLD 16-20AWG

¥1.1696

详情

暂无图片

0330111006

molex

Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel CONN BLD TERM GOLD 22AWG

¥1.1900

详情

0330000003

molex

Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel TERM MALE TIN 22AWG CRIMP 0330000003 Contact; male; 22AWG; MX150; tinned; crimped; for cable; 22A

¥0.2224

详情

暂无图片

0330111002

Molex, LLC

Buy now, ships today. 0330111002 - Blade Contact Gold 14 AWG Crimp from Molex. View datasheets, pricing and availability from DigiKey now!

¥1.3451

详情

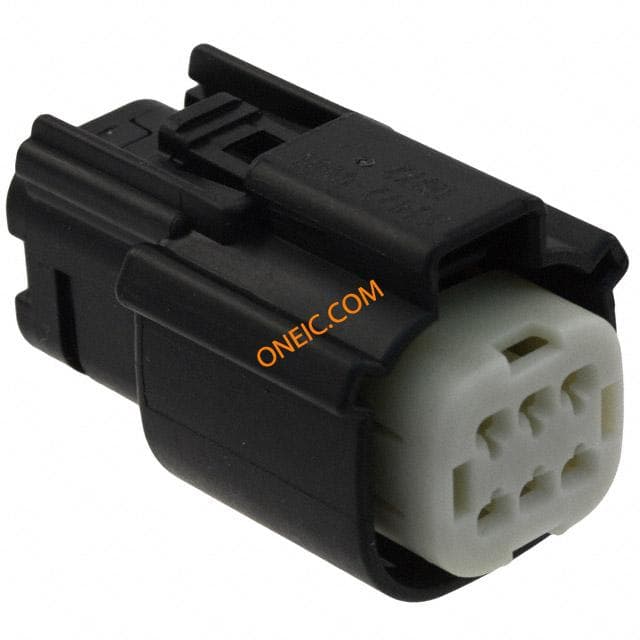

0334720601
