点击放大查看

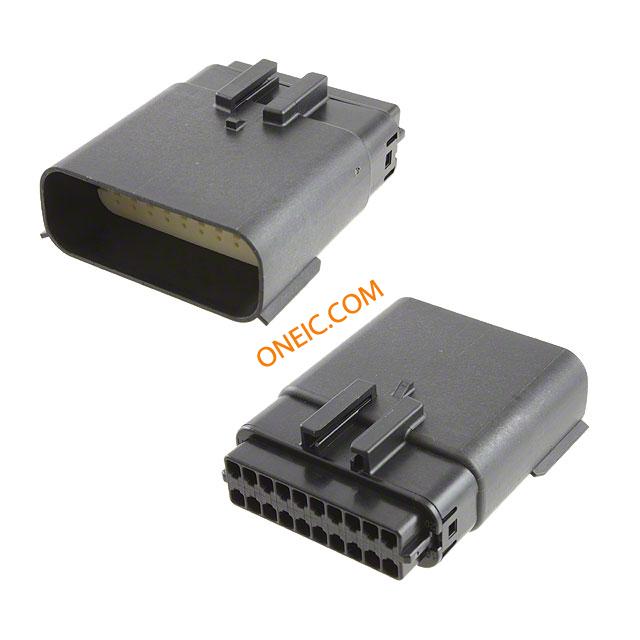

33482-2001

制造商	Molex, LLC
描述	Automotive Connectors MX150 2X10P MALE PLG POLAR A W/O CPA CONN PLUG 20POS DUAL BLACK 3.50mm Pitch MX150™ Sealed Male Connector, Dual Row, 20 Circuits, Polarization A, without Connector Position Assurance, Black CONNECTOR, HOUSING, PLUG, 20POS, CABLE
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

产品	Connectors	商标名	MX150
零件号别名	0334822001	产品类别	Automotive Connectors
标准包装数量	1	工厂包装数量	200

合规参数

RoHS

RoHS Compliant

海关税号

85369010

电气参数

最大额定电流

22 A

机械参数

颜色	Black	间距	0.138" (3.50mm)
重量	0.02	包装方式	Bulk
触头类型	Male Pin	安装类型	Free Hanging (In-Line)
连接器类型	Plug	紧固类型	Locking Ramp
安装样式	Wire	排数	2
本体材料	:Glass Filled Nylon (Polyamide)	壳体材料	Polystyrene (PS)
端接样式	Crimp	接触件端接	Crimp
位数	20

产品信息

备注	Contacts Not Provided	连接器性别	Male
系列	33482	产品特性	Sealed
适用产品/相关产品	:MX150 33000, 33011 Series Male Terminals

环境参数

工作温度

- 40 C to + 125 C

文档与媒体

PDF 文档

33482-201

PDF 文档

0334822001_CRIMP_HOUSINGS.pdf
