点击放大查看

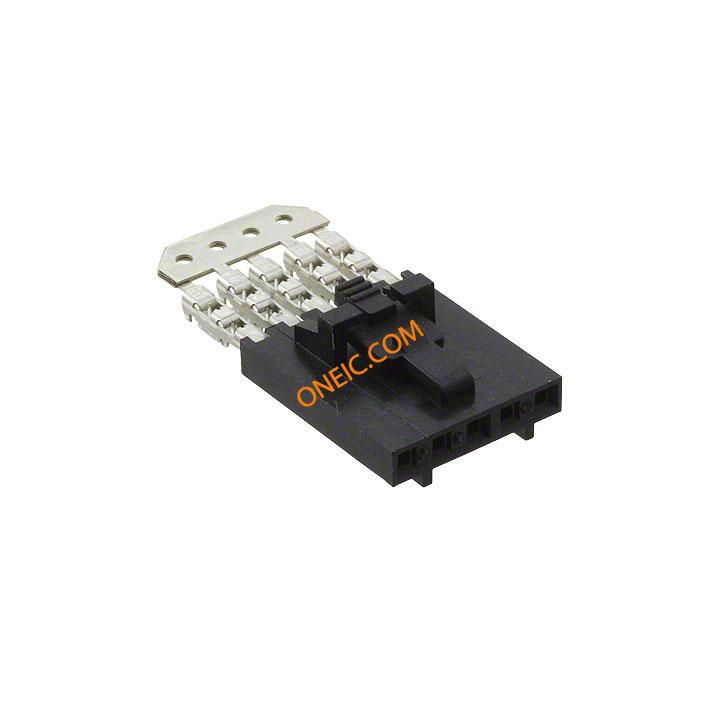

0014562054
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector F 5 POS 2.54mm IDT ST Cable Mount Tube CONN RCPT IDC 5POS VERT 26AWG |
商业参数
| 交货时间 | 38 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 1,260 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 | 最大额定电流 | 3/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 15.24 |
| 间距 | 0.100" (2.54mm) | 高度 | 6.58 |
| 包装方式 | Tube | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 26 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 12.67 |
| 电缆端接方式 | IDC | 触点数 | 5 |
| 位数 | 5 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Closed End | 行业别名 | 14-56-2054, 14562054 |
