点击放大查看

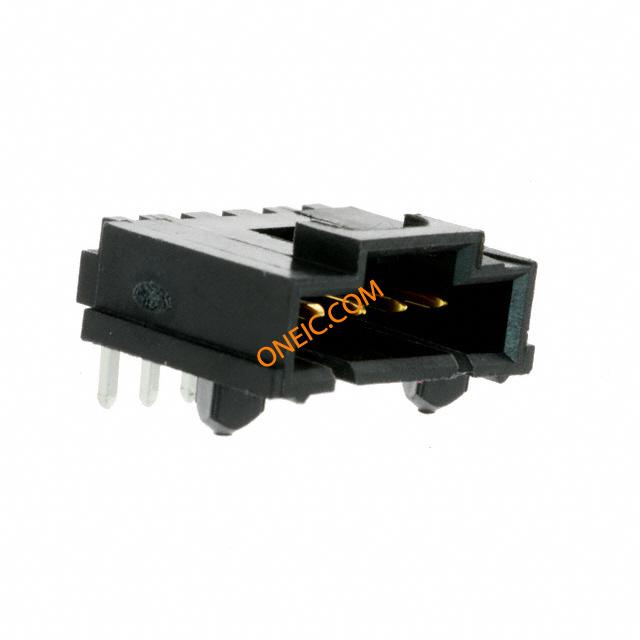

0705550039

制造商	Molex, LLC
描述	Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 5POS .100 R/A 15AU
分类	连接器解决方案板对板连接器带罩排针连接器

商业参数

标准包装数量

Rail / Tube

合规参数

RoHS

Lead free / RoHS Compliant

机械参数

颜色	Black	间距	2.54 mm
包装方式	Tube	端接方式	Solder
触头类型	Male Pin	安装类型	Through Hole, Right Angle
连接器类型	Header, Shrouded	接触镀层	Gold
紧固类型	Latch Holder	排数	1
触点数	5	位数	5
接触长度 - 配合	0.240" (6.10mm)	接触镀层厚度	15µin (0.38µm)

产品信息

类型	Shrouded Header	连接器性别	HDR
产品特性	Board Guide	加载位置数	All

文档与媒体

PDF 文档

0705550039_PCB_HEADERS.pdf

PDF 文档

Single Row (SL) Prod Spec
