14-60-0052
| 制造商 | Molex, LLC |
| 描述 | CONN IDC 5POS .100 TIN 24AWG Headers & Wire Housings CGrid SL IDT Opt G TIN 5Ckt Conn IDC Connector F 5 POS 2.54mm IDT ST Cable Mount Tube |
| 分类 |
商业参数
| 商标名 | C-Grid, SL | 零件号别名 | 0014600052 A-70400-0144 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1260 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 24 AWG | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 紧固类型 | Latch Lock |
| 安装样式 | Cable | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester Alloy |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 5 |
| 位数 | 5 | 接触镀层厚度 | 150µin (3.81µm) |
产品信息
| 系列 | 70400 | 产品特性 | Closed End |
| 产品子类型 | Receptacles / Sockets - Housings | ||
文档与媒体
相关型号
0705530004
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 5POS .100 R/A GOLD
0705450004
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 5POS .100 VERT TIN
0705550039
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 5POS .100 R/A 15AU
0705430004
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 5POS .100 VERT GOLD
0705530039
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 5POS .100 TIN
0705530109
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 5POS .100 R/A 30AU
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0701070004
molex
Conn Housing F 5 POS 2.54mm Crimp ST Bag CONN HOUSING MALE 5POS .100
0705430109
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 5POS .100 VERT 30AU
0705430039
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube CONN HDR VERT 5POS .100 TIN
0705550004
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 5POS .100 R/A TIN
0740991005
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST SMD Tube CONN HEADER .100 VERT 5POS SMD
0015912055
molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA SMD Tube CONN HEADER 5POS .100 R/A SMD
68301-1006
Molex
Headers & Wire Housings .100 SR SB Vert. SMT Hdr 5 CKT CONN HEADER 5POS .100" VERT 15AU
68301-1016
Molex
Headers & Wire Housings 2.54MM BREAKAWAY Vertical 5 CKT CONN HEADER 5POS .100" VERT TIN
0701070074
Molex
Conn Housing F 5 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT C 5POS
0705450039
Molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 5POS .100 VERT 15AU

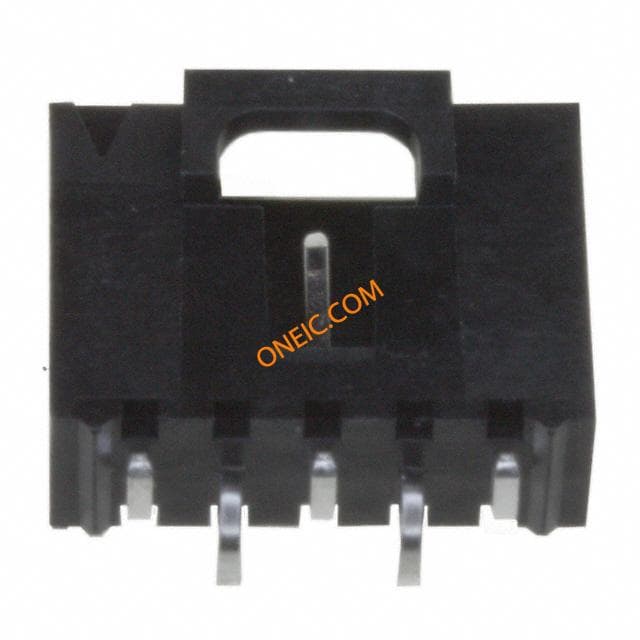

0740990005
Molex
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST SMD Tube CONN HEADER .100 VERT 5POS SMD

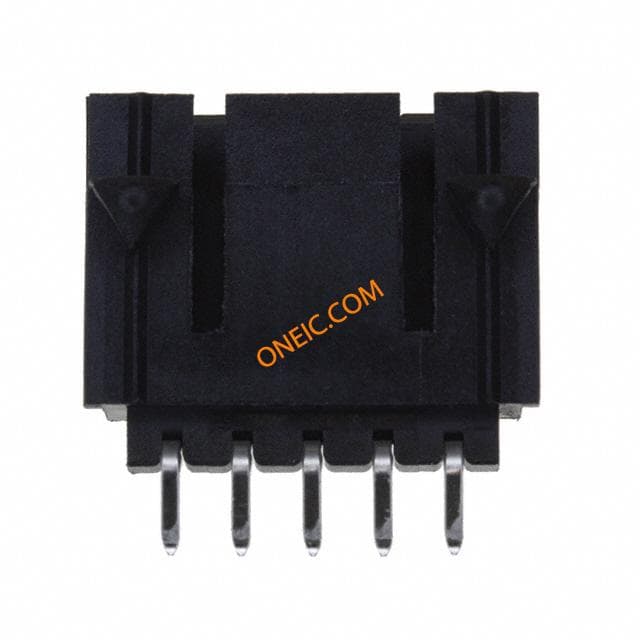

0015913054
