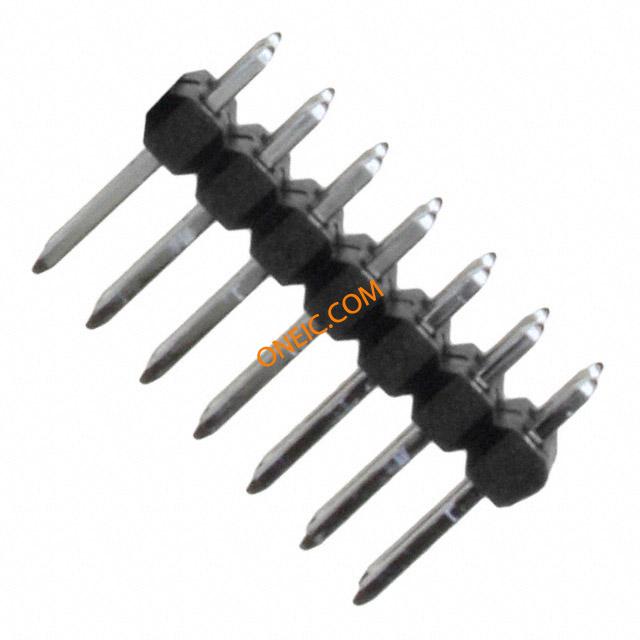

0010897141
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 14POS .100 SRT TIN |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 | 最大额定电流 | 3/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 5.08 |
| 间距 | 2.54 mm | 高度 | 8.39 |
| 包装方式 | Bag | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Tin Over Nickel |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 17.78 |
| 触点数 | 14 | 位数 | 14 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 150µin (3.81µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
文档与媒体
相关型号
71979-0207
molex
Conn Socket Strip RCP 14 POS 2.54mm Solder RA SMD Tube CONN RECEPT 14POS R/A SMD GOLD Headers & Wire Housings CGrid SMT RA Erly Re Rec DR 15 SAu 14Ckt
15-44-3207
Molex
Headers & Wire Housings 14P DUAL ROW PCB VRT CONN RECEPT 14POS .100 VERT PCB
15-45-1307
Molex
Headers & Wire Housings Obsolete CONN RECEPT 14POS .100 VERT PCB
15-44-4507
Molex
Headers & Wire Housings 14P DUAL ROW PCB VRT CONN RECEPT 14POS .100 VERT PCB
0015453514
Molex
Conn Socket Strip RCP 14 POS 2.54mm Solder ST SMD Tray CONN RCPT 14POS VERT DL SMD

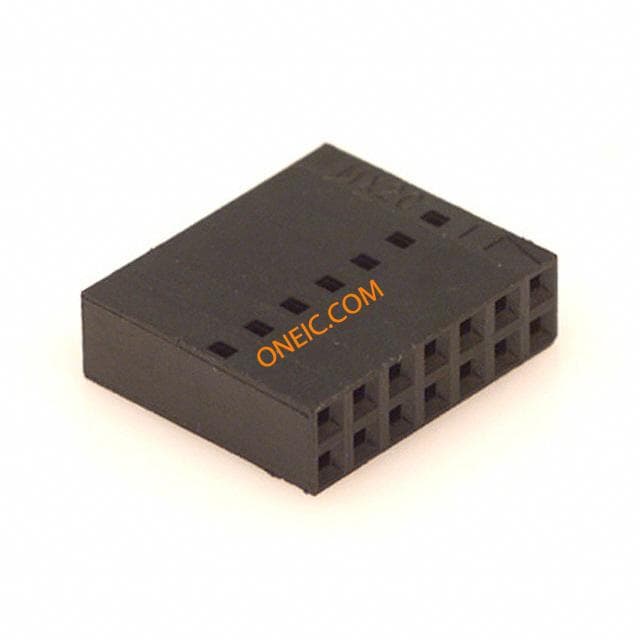

22-55-2141
