点击放大查看

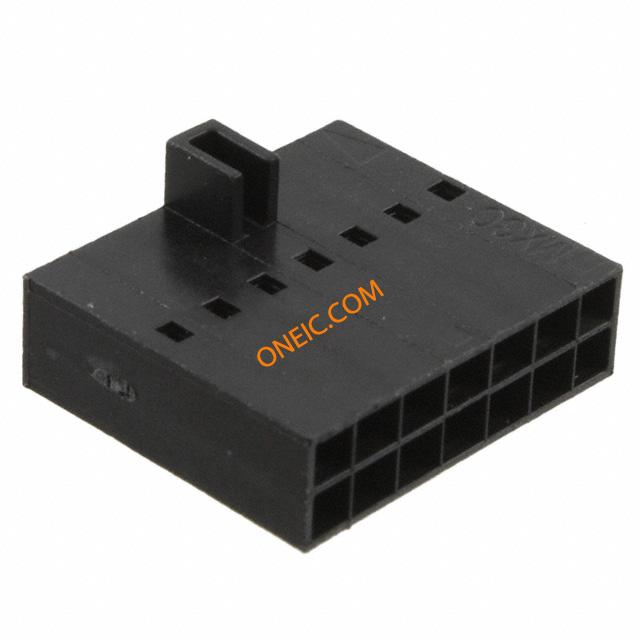

22-55-2142

制造商	Molex, LLC
描述	CONN HOUSING DUAL ROW 14POS .100 Headers & Wire Housings HSG 14P DUAL ROW POLARIZED 2.54mm Pitch SL™ Crimp Housing, Dual Row, Version B, Polarized, 14 Circuits
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	SL	零件号别名	0022552142 70450-0055
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	500

合规参数

RoHS

RoHS Compliant

机械参数

颜色	Black	间距	0.100" (2.54mm)
包装方式	Bulk	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	安装样式	Wire
排数	2	壳体材料	Polyester
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	14	接触件端接	Crimp
位数	14

产品信息

备注	Contacts Not Provided	系列	70450
产品特性	Polarizing Key	产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

22-55-2142

PDF 文档

Single Row (SL) Prod Spec

相关型号

0010897142

molex

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 14POS .100 SRT AU

¥12.2903

详情

0010897141

molex

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 14POS .100 SRT TIN

¥6.5001

详情

0702471451

molex

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tray CONN HDR R/A 14CKT W/O STAND OFF

¥8.2926

详情

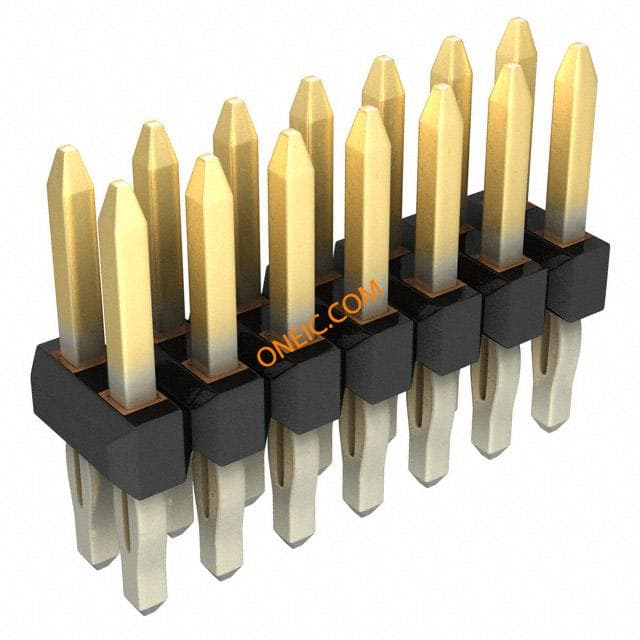

0751020045

molex

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 14POS .100 SRT AU

¥90.5284

详情

暂无图片

70246-1402

molex

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 14POS .100 VERT GOLD Headers & Wire Housings 2.54mm CGrid Hdr Shr d /Slt .76AuLF 14Ckt

¥6.8000

详情

暂无图片

15-41-8014

Molex

Headers & Wire Housings SHRD HDR DUAL RA 14P CONN HEADER 14POS .100 R/A GOLD

详情

暂无图片

15-29-7014

Molex

Headers & Wire Housings CGrid RA Shrd Hdr VerA 15 SAu 14Ckt CONN HEADER 14POS .100 R/A GOLD Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube

¥8.1600

详情

暂无图片

15-42-7014

Molex

Headers & Wire Housings CGrid RA Shrd Hdr VerA Tin 14Ckt CONN HEADER 14POS .100 R/A TIN Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube

¥6.8680

详情

暂无图片

70247-1401

Molex

Headers & Wire Housings 14P R/A SHROUDED HDR CONN HEADER 14POS .100 R/A GOLD 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 14 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) ... 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 14 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC Tail Plating

¥4.2160

详情

暂无图片

70246-1421

Molex

Headers & Wire Housings 14 POSITION HEADER CONN HEADER 14POS .100 VERT GOLD 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 14 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC ... 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 14 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC Tail Plating

详情

0702461404

Molex

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tray 2.54MM CGRID HDR SHRD /SLT 14CKT

¥5.5114

详情

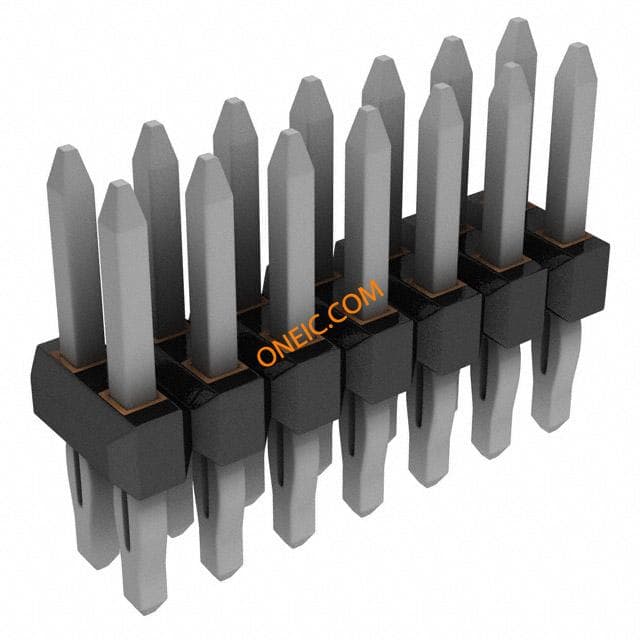

0751020084
