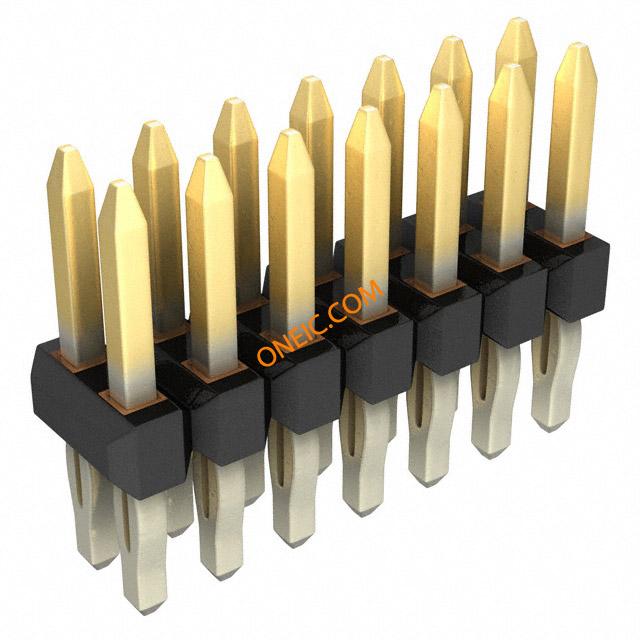

0751020045
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 14POS .100 SRT AU |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact | 最小输入电压 | 250V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bag | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | High Performance Alloy |
| 壳体材料 | Thermoplastic | 触点数 | 14 |
| 位数 | 14 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
