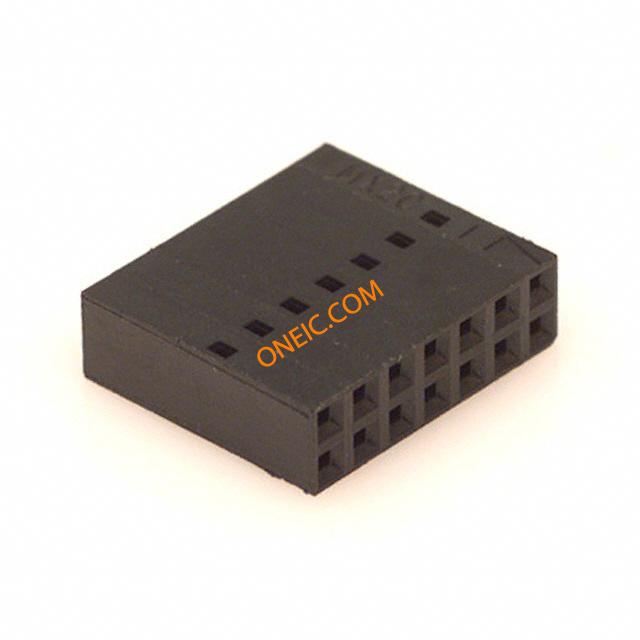

点击放大查看
22-55-2141
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 14POS .100 DUAL Headers & Wire Housings HSG 14P DUAL ROW NON-POLARIZED Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0022552141 70450-0006 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | Polyester |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 14 | 接触件端接 | Crimp |
| 位数 | 14 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | 70450 |
| 产品子类型 | Receptacles / Sockets - Housings | ||
