70247-1452
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 14POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 14Ckt |
| 分类 |
商业参数
| 商标名 | C-Grid | 零件号别名 | 0702471452 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 96 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 2.5 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tray | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 14 | 位数 | 14 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 70247 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
15-44-3207
Molex
Headers & Wire Housings 14P DUAL ROW PCB VRT CONN RECEPT 14POS .100 VERT PCB
15-45-1307
Molex
Headers & Wire Housings Obsolete CONN RECEPT 14POS .100 VERT PCB
15-44-4507
Molex
Headers & Wire Housings 14P DUAL ROW PCB VRT CONN RECEPT 14POS .100 VERT PCB

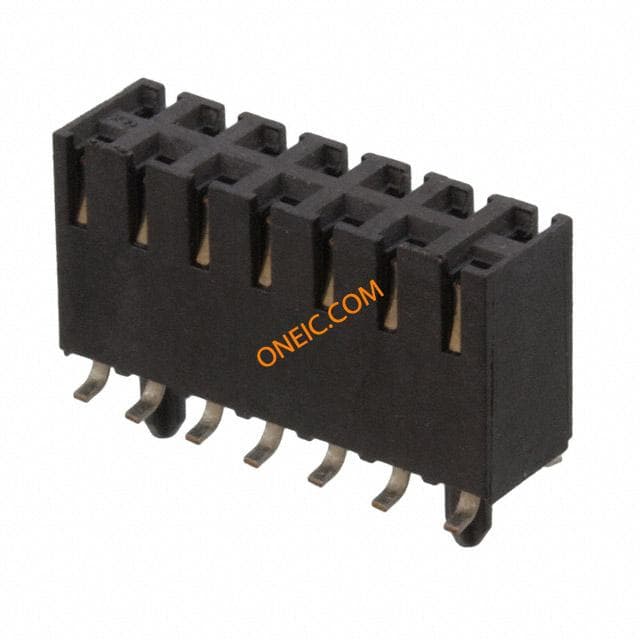

0015453514
Molex
Conn Socket Strip RCP 14 POS 2.54mm Solder ST SMD Tray CONN RCPT 14POS VERT DL SMD
90327-0314
Molex Connector Corporation
CONN RECEPT IDT 14POS 1.27MM TIN 14 way IDT housing,1.27mm pitch Headers & Wire Housings PICOFLEX 14P HSG LOPRO IDT SN Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 14WAY .050 picoflex pf-50 idt receptacle, 14 circuits Female connector 14P, 90327-0314, Molex Molex PICOFLEX 系列 2行 14路 1.27mm节距 直角 电缆安装 母 IDC 连接器
90327-3314
Molex Connector Corporation
CONN RECPT IDT 14POS 1.27MM GOLD 14 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 14P HSG LOPRO IDT AU Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Bag RECEPTACLE, 14POS, 2ROW, 1.27MM Molex PICOFLEX 系列 2行 14路 1.27mm节距 直角 电缆安装 母 IDC 连接器

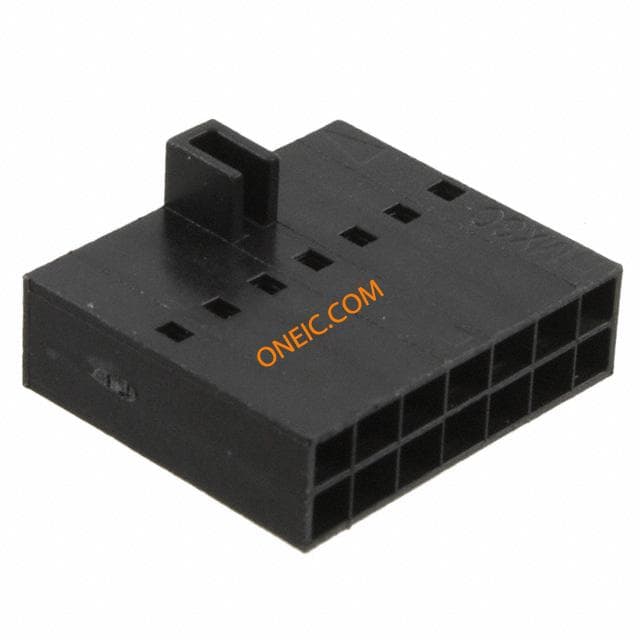

22-55-2142
