点击放大查看

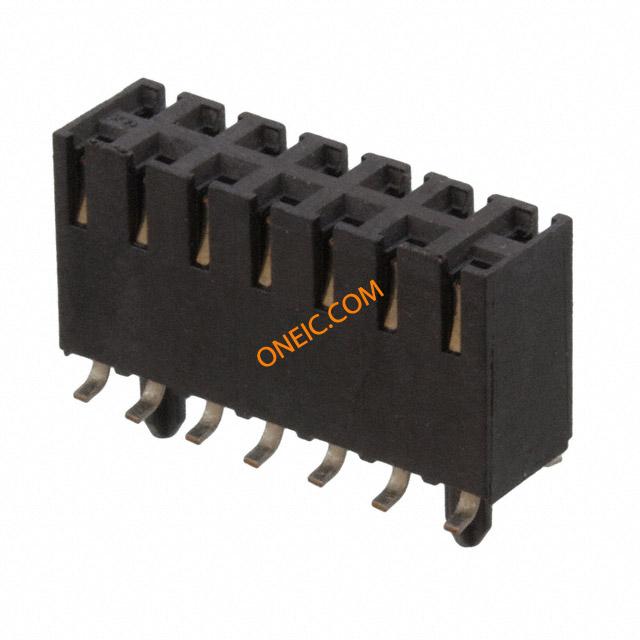

0015453514
| 制造商 | Molex, LLC |
| 描述 | Conn Socket Strip RCP 14 POS 2.54mm Solder ST SMD Tray CONN RCPT 14POS VERT DL SMD |
商业参数
| 标准包装数量 | 816 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2.5/Contact | 最小输入电压 | 250VDC|250VAC |
机械参数
| 颜色 | Black | 深度 | 5.05 |
| 间距 | 0.100" (2.54mm) | 高度 | 9.35 |
| 包装方式 | Tray | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Surface Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 17.75 |
| 触点数 | 14 | 位数 | 14 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | RCP |
| 产品特性 | Board Guide | 加载位置数 | All |
相关型号
0010897142
molex
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 14POS .100 SRT AU
0010897141
molex
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 14POS .100 SRT TIN

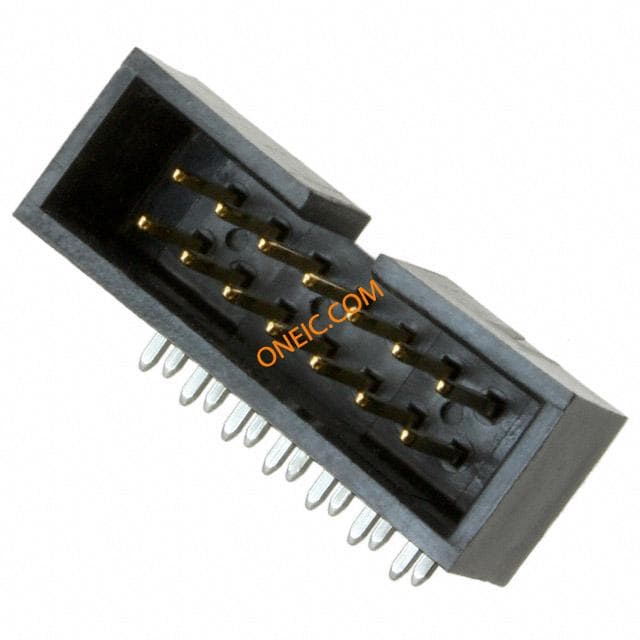

0702471451
molex
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tray CONN HDR R/A 14CKT W/O STAND OFF
70246-1402
molex
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 14POS .100 VERT GOLD Headers & Wire Housings 2.54mm CGrid Hdr Shr d /Slt .76AuLF 14Ckt
10-89-9147
Molex
Headers & Wire Housings C-GRID 14 CKT BREAKA CONN HEADER 14POS .100 VERT GOLD
10-89-2141
Molex
Headers & Wire Housings 2x7 VERT HDR 30u Au CONN HEADER 14POS .100 VERT GOLD Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Bag
10-88-1141
Molex
Headers & Wire Housings USE 538-10-89-7141 dual row tin/lead CONN HEADER 14POS .100 VERT TIN 2.54mm Pitch C-Grid® Breakaway Header, Dual Row, Vertical, 14 Circuits, 6.10mm Mating Pin Length, Tin (Sn) Plating
10-89-1141
Molex
Headers & Wire Housings ENV 538-10-89-7142 dual row 15u gold CONN HEADER 14POS .100 VERT GOLD Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Bag
70247-1401
Molex
Headers & Wire Housings 14P R/A SHROUDED HDR CONN HEADER 14POS .100 R/A GOLD 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 14 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) ... 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 14 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC Tail Plating
70246-1421
Molex
Headers & Wire Housings 14 POSITION HEADER CONN HEADER 14POS .100 VERT GOLD 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 14 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC ... 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 14 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC Tail Plating

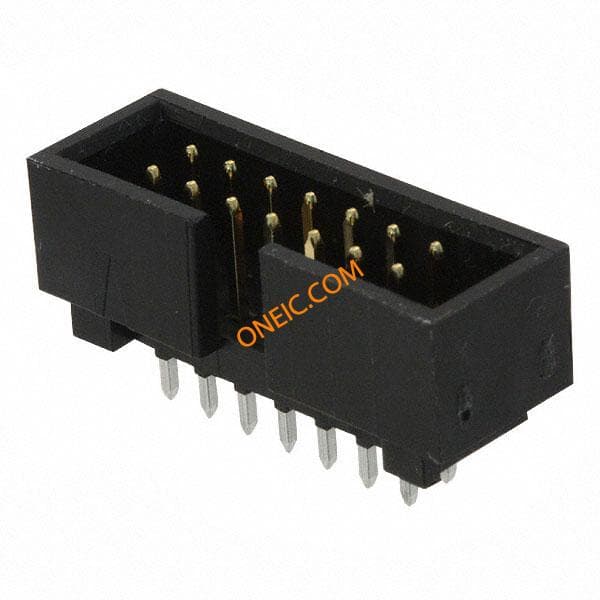

0702461404
