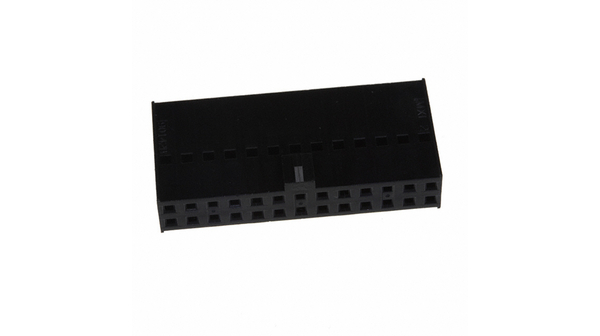

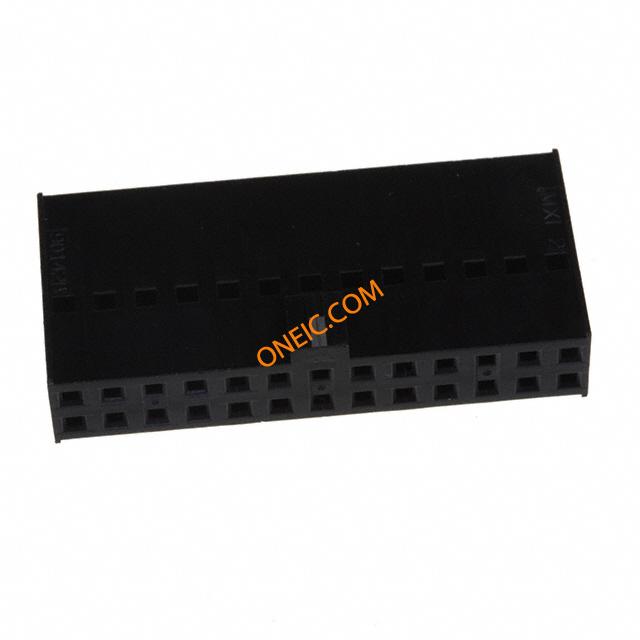

90142-0026
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 26POS .100" DUAL Crimp Housing 2.54mm C-Grid III,2row,26w Headers & Wire Housings 2.54MM CGRIDIII HSG 26P DR CRIMP 2.54mm Pitch C-Grid III™ Crimp Housing Dual Row, 26 Circuits HOUSING, 2ROW, FRICTION LOCK, 26WAY Crimp housing 2 x 13P, 90142-0026, Molex Molex C-GRID III 系列 2 行 2.54mm 节距 26 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901420026 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1200 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - C-Grid III 90142 Series | 额定电压 | 350 V |
| 接触电阻 | :20mohm | 最大额定电流 | 3 A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 7.72mm |
| 长度 | 33.02mm | 重量 | 0.002 |
| 材料（通用） | :Polyphenylene Oxide UL94V-1 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 2 | 触头材料 | :- |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 26 |
| 接触件端接 | Crimp | 位数 | 26 |
| 第一连接器安装类型 | :PC Board | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 90142 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | C-Grid III Connector |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
