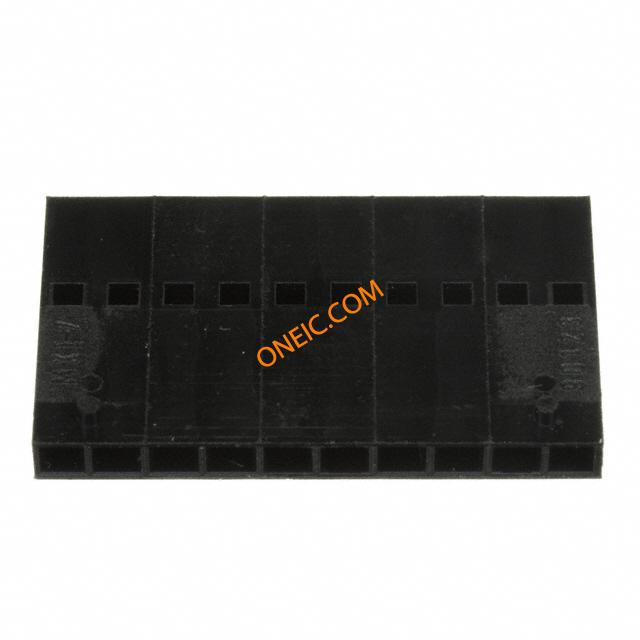

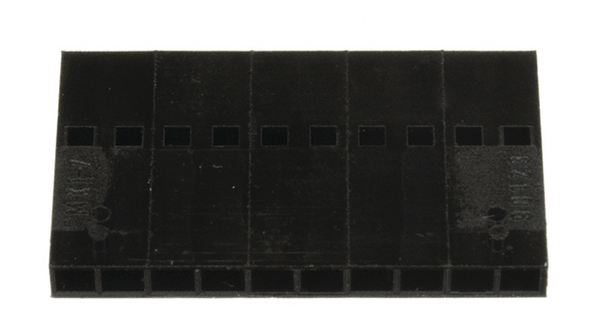

90123-0110
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 10POS .100" SINGLE 10 way single row housing Headers & Wire Housings 2.54MM CGRIDIII HSG 10P SR W/2POL BTTN HOUSING POLARISED, 10WAY Crimp housing 1 x 10P, 90123-0110, Molex Molex C-GRID III 系列 2.54mm 节距 10 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901230110 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 量程（°/s） | :MOLEX - C-Grid III 90123 Series | 额定电压 | :350V |
| 接触电阻 | :20mohm | 最大额定电流 | :3A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 3.43mm |
| 长度 | 25.4mm | 重量 | 0.055 |
| 包装方式 | Bulk | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | :Polyphenylene Oxide UL94V-1 | 触头材料 | :- |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 10 |
| 接触件端接 | Crimp | 位数 | 10 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 90123 | 产品特性 | Polarizing Key |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
69008-0003
molex
Connector Accessories Extraction Aid Tool Hand Tools EXTRACTION TOOL Extraction tool for crimp terminal Application Tooling Type Extraction Aid Tool EXTRACTION TOOL Extraction tool, 69008-0003, Molex Molex HANDTOOL 系列 压接拔取工具
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
90121-0770
molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100" R/A GOLD Molex 90121 Series 2.54mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P R/A SR SEL AU Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tray HEADER, RIGHT ANGLE, 1ROW, 10WAY Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直角 引脚管座, 焊接端接, 3A , 通孔
90120-0770
molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100" STR GOLD Molex 90120 Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P VERT SR SEL AU Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray HEADER, VERTICAL, 1ROW, 10WAY Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔
69008-0140
molex
Connector Accessories C-Grid Insertion Tool Hand Tools C' GRID INSERTION TOOL Insertion tool for crimp terminal Hardware Tools, C-Grid Insertion Tool INSERTION TOOL Insertion Tool; C-Grid Insertion tool, 69008-0140, Molex Molex HANDTOOL 系列 插入工具
90119-2121
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings LOOSE TERMINALS Crimp contact terminal,26-28 awg CRIMP SOCKET, 26-28AWG CONTACT, FEMALE, 28-26AWG, CRIMP C-GRID TERM FEM CRP LP AU-E 26/28AWG Crimp socket 3 A Female 28...26 AWG, 90119-2121, Molex Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点

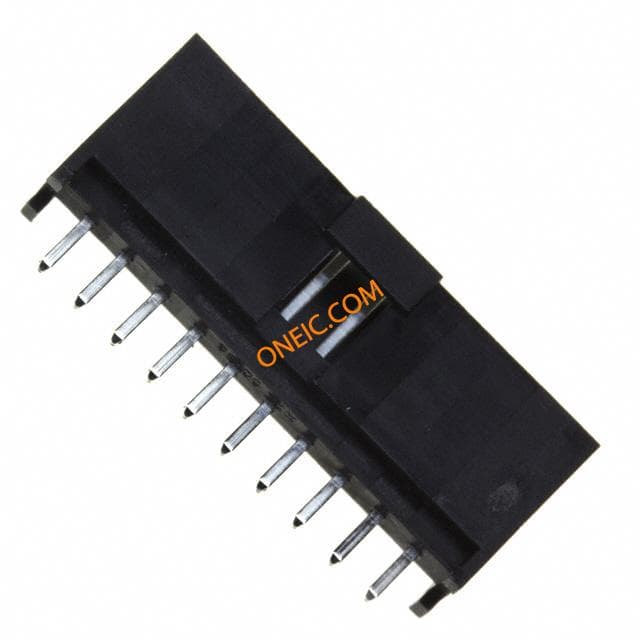

90136-1110
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 10POS .100" STR TIN Molex 90136 Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P V SR SHRD TIN Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔

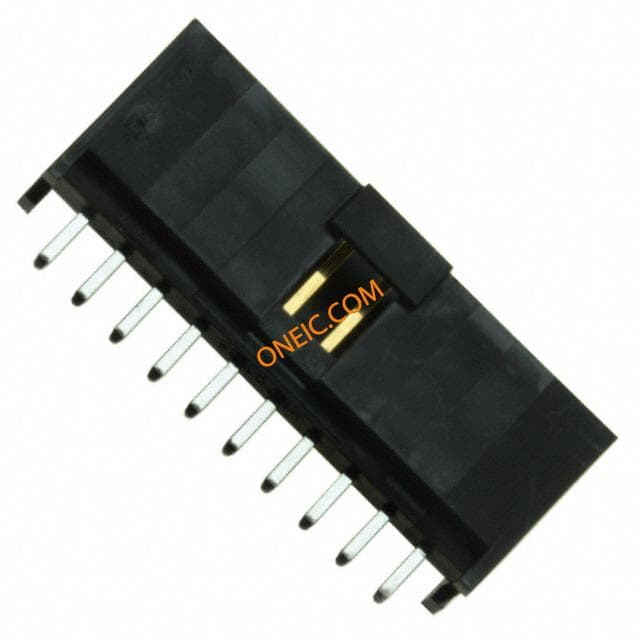

90136-1210
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 10POS .100" STR GOLD Molex 90136 Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P V SR SHRD AU-E Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A
90120-0130
Molex Connector Corporation
CONN HEADER 10POS .100" STR TIN Molex 90120 Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P VERT SR TIN Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray HEADER, 10WAY Pin header 1 x 10P, 90120-0130, Molex Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔

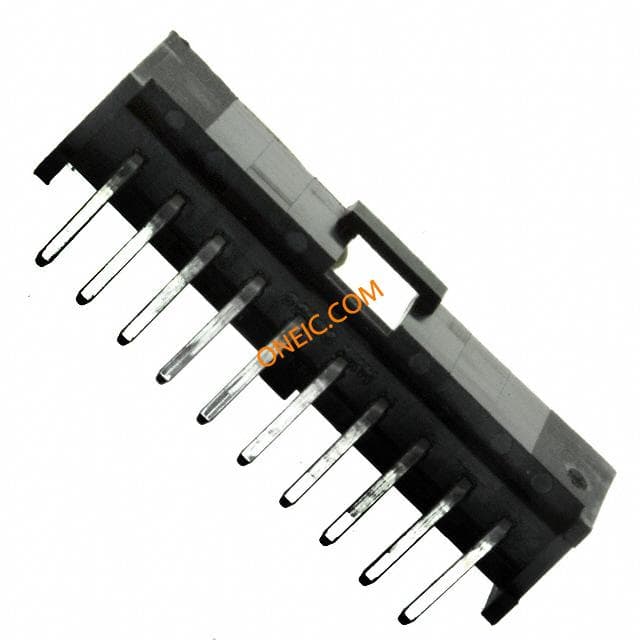

90136-2110
Molex Connector Corporation
CONN HEADER 10POS .100" R/A TIN Molex 90136 Series 2.54mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P R/A SR SHRD TIN Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tray Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔
90121-0130
Molex Connector Corporation
CONN HEADER 10POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 10P R/A SR TIN Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tray Pin header 1 x 10P, 90121-0130, Molex

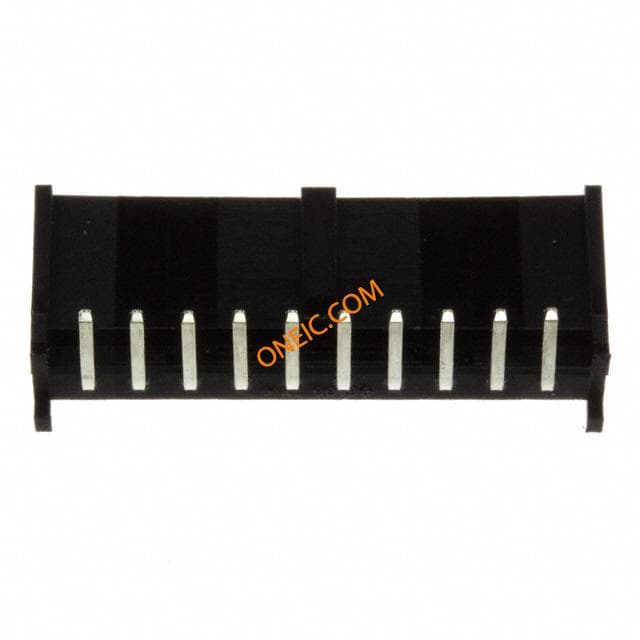

90136-2210
