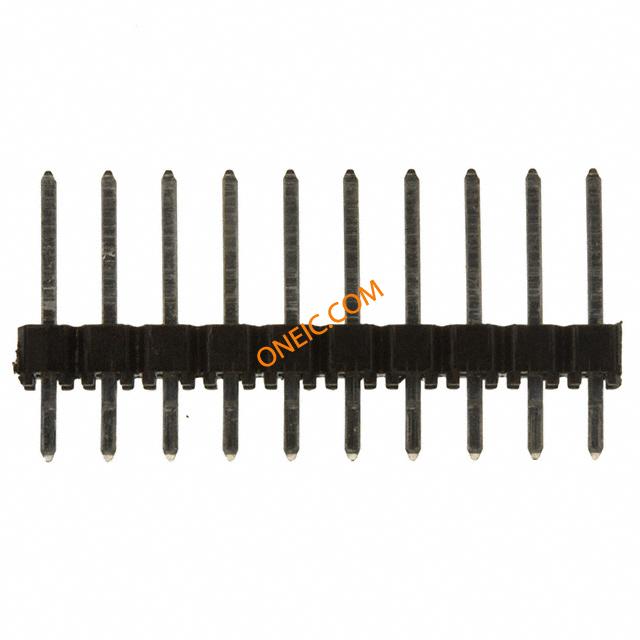

90120-0130
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 10POS .100" STR TIN Molex 90120 Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P VERT SR TIN Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray HEADER, 10WAY Pin header 1 x 10P, 90120-0130, Molex Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901200130 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 3600 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 350 V | 开关功能 | Unlatched |
| 最大额定电流 | 3A | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 重量 | 0.00001 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 10 | 接触件端接 | :Through Hole Vertical |
| 位数 | 10 | 接触长度 - 配合 | 0.266" (6.75mm) |
| 接触镀层厚度 | 160µin (4.06µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | :Header |
| 系列 | 90120 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
