90148-1110
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT HORIZ 10POS .100 PCB Molex 2.54mm 10 Way 1 Row Right Angle PCB Socket Through Hole Socket Strip Headers & Wire Housings HORIZONTAL SNGL 10P Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole Tube Molex C-Grid 系列 10路 直角 2.54mm节距 通孔 印刷电路板插座, 插座板 |
| 分类 |
商业参数
| 商标名 | C-Grid | 零件号别名 | 0901481110 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 770 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 350 V ac | 最大额定电流 | 3A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 方向 | 直角 |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Socket (Female) | 触点数 | 10 |
| 位数 | 10 | 接触镀层厚度 | 40µin (1.02µm) |
产品信息
| 类型 | Socket Strip | 系列 | 90148 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - PCB |
| 基础产品编号 | 90148 | 加载位置数 | All |
文档与媒体
相关型号
0022284103
molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD

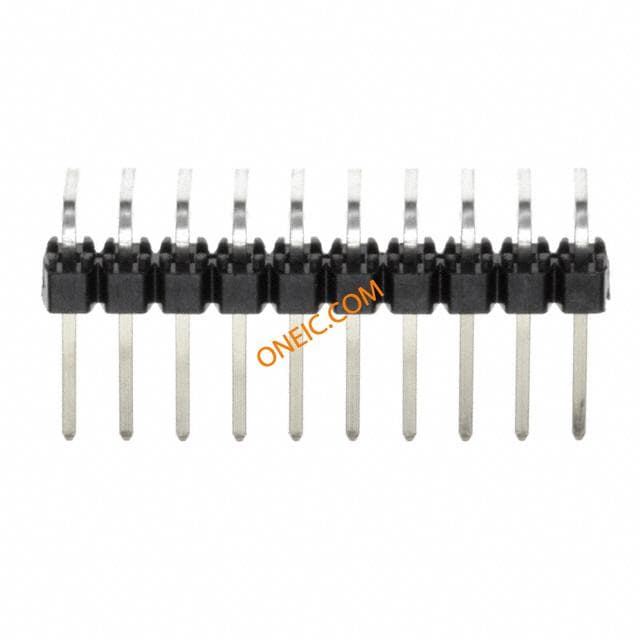

90121-0770
molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100" R/A GOLD Molex 90121 Series 2.54mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P R/A SR SEL AU Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tray HEADER, RIGHT ANGLE, 1ROW, 10WAY Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直角 引脚管座, 焊接端接, 3A , 通孔

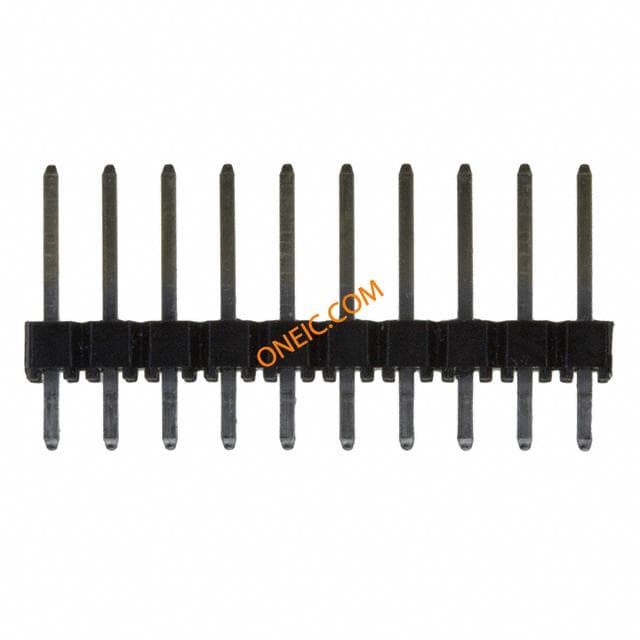

90120-0770
molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100" STR GOLD Molex 90120 Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P VERT SR SEL AU Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray HEADER, VERTICAL, 1ROW, 10WAY Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔
22-28-4106
molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD Headers & Wire Housings 2.54MM HDR VT 10P 240/125 30AU
0022284100
Molex
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT TIN

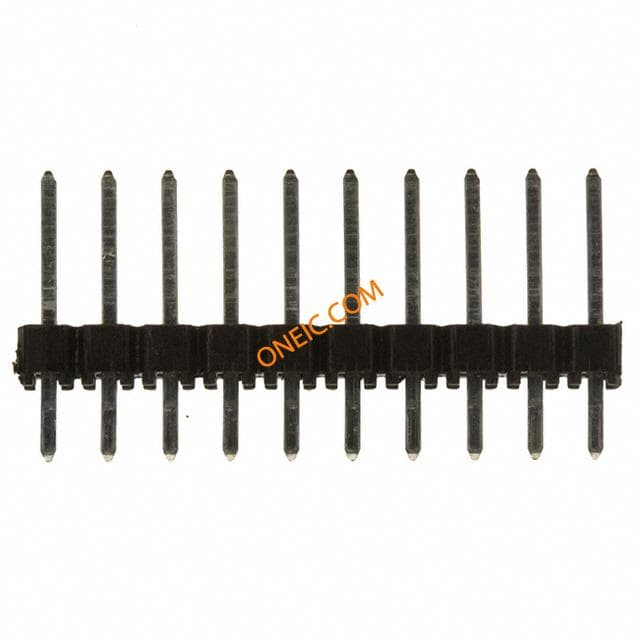

90120-0130
Molex Connector Corporation
CONN HEADER 10POS .100" STR TIN Molex 90120 Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P VERT SR TIN Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray HEADER, 10WAY Pin header 1 x 10P, 90120-0130, Molex Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔
22-28-8104
Molex Connector Corporation
CONN HEADER 10POS .100 R/A GOLD Headers & Wire Housings HEADER 10POS .100 R/A GOLD
0022288100
Molex Inc
CONN HEADER 10POS .100 R/A TIN

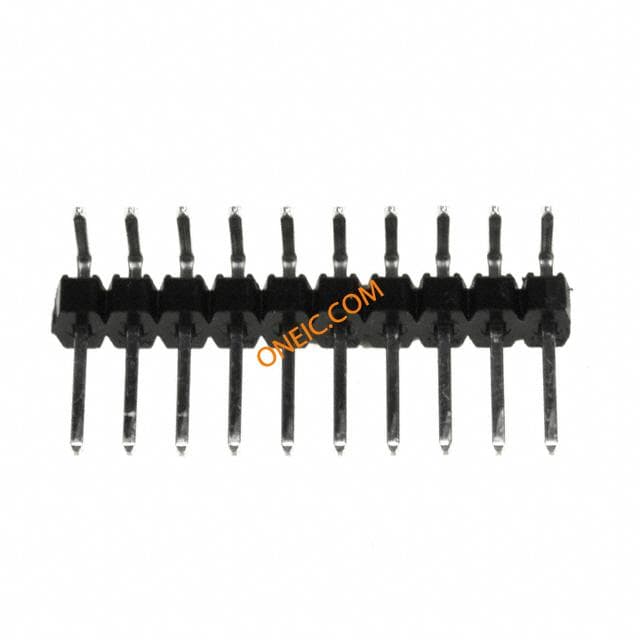

90121-0130
