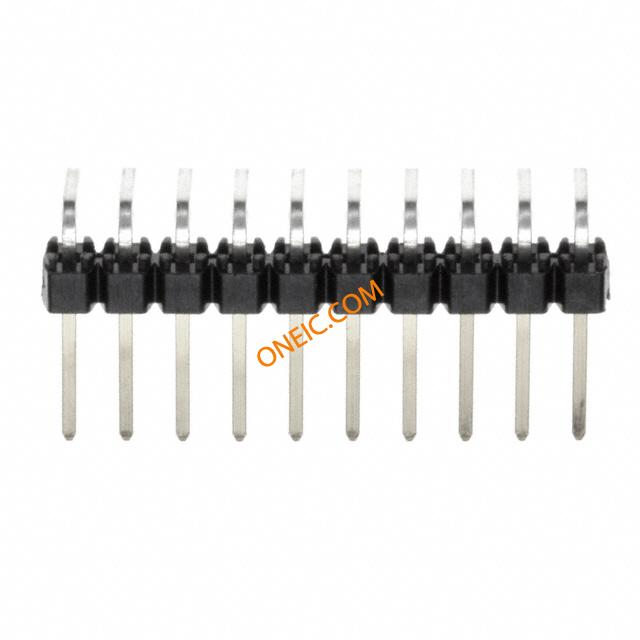

90121-0770
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100" R/A GOLD Molex 90121 Series 2.54mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 10P R/A SR SEL AU Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tray HEADER, RIGHT ANGLE, 1ROW, 10WAY Molex C-GRID III 系列 2.54mm节距 10路 (1排) 直角 引脚管座, 焊接端接, 3A , 通孔 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901210770 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 900 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 额定电压 | 350 V | 极数 | :10 |
| 工作电压 | :350V | 接触电阻 | :20mohm |
| 最大额定电流 | 3A | 绝缘电阻 | :5000Mohm |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.008 | 材料（通用） | :Glass Filled Polyester UL94V-0 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 10 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 10 |
| 接触长度 - 配合 | 0.266" (6.75mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 90121 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | :125°C | ||
文档与媒体
相关型号
90148-1210
molex
Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole Tube CONN RECEPT HORIZ 10POS .100 PCB Headers & Wire Housings C-Grid PCB Conn SR H Horz Poly Au-E 10Ckt 2.54mm Pitch C-Grid® PC Board Connector, Single Row, Right Angle, 0.38µm Gold (Au) Selective, 10 Circuits PCB socket 1 x 10P, 90148-1210, Molex
90148-1110
Molex Connector Corporation
CONN RECEPT HORIZ 10POS .100 PCB Molex 2.54mm 10 Way 1 Row Right Angle PCB Socket Through Hole Socket Strip Headers & Wire Housings HORIZONTAL SNGL 10P Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole Tube Molex C-Grid 系列 10路 直角 2.54mm节距 通孔 印刷电路板插座, 插座板
90123-0110
Molex Connector Corporation

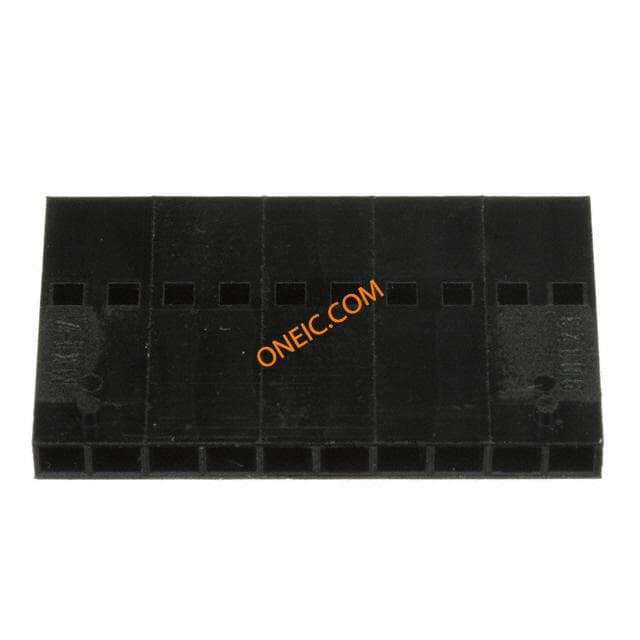

CONN HOUSING 10POS .100" SINGLE 10 way single row housing Headers & Wire Housings 2.54MM CGRIDIII HSG 10P SR W/2POL BTTN HOUSING POLARISED, 10WAY Crimp housing 1 x 10P, 90123-0110, Molex Molex C-GRID III 系列 2.54mm 节距 10 路 直 母 压接连接器外壳
90156-0150
Molex Connector Corporation

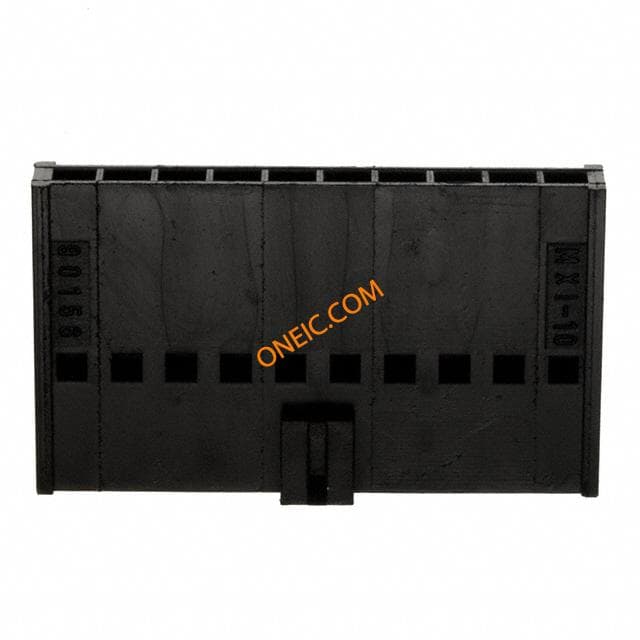

CONN HOUSING 10POS .100" CRIMP 10 way single row locking housing Headers & Wire Housings 2.54MM CGRIDIII HSG 10P SR CRIMP Conn Housing RCP 10 POS 2.54mm Crimp ST Bag HOUSING FRICTION LOCK, 10WAY Crimp housing 1 x 10P, 90156-0150, Molex Molex C-GRID III 系列 2.54mm 节距 10 路 直 母 压接连接器外壳
