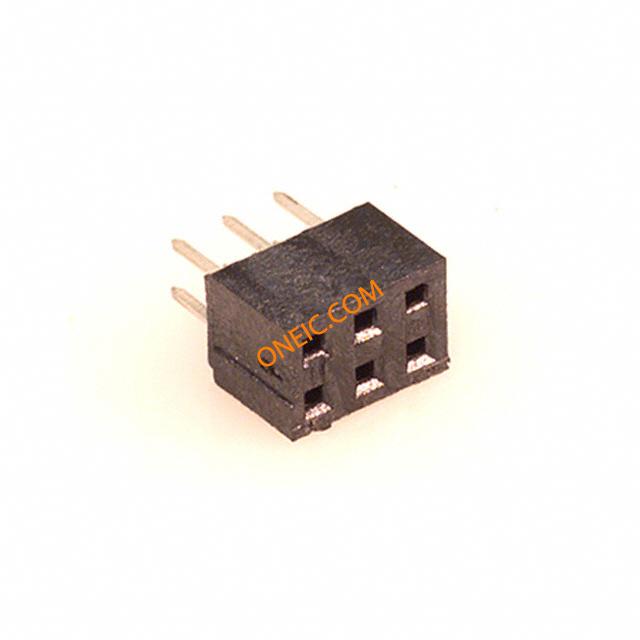

79107-7002
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 2MM 6POS VERT Headers & Wire Housings 2.00mm DUAL RW RECPT Conn Socket Strip RCP 6 POS 2mm Solder ST Thru-Hole Tube MGrid VRec DR W/OPgs .38AuLF 6Ckt |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0791077002 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 3910 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 1 A |
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 位数 | 6 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 系列 | 79107 | 产品子类型 | Receptacles / Sockets - PCB |
| 加载位置数 | All | ||
