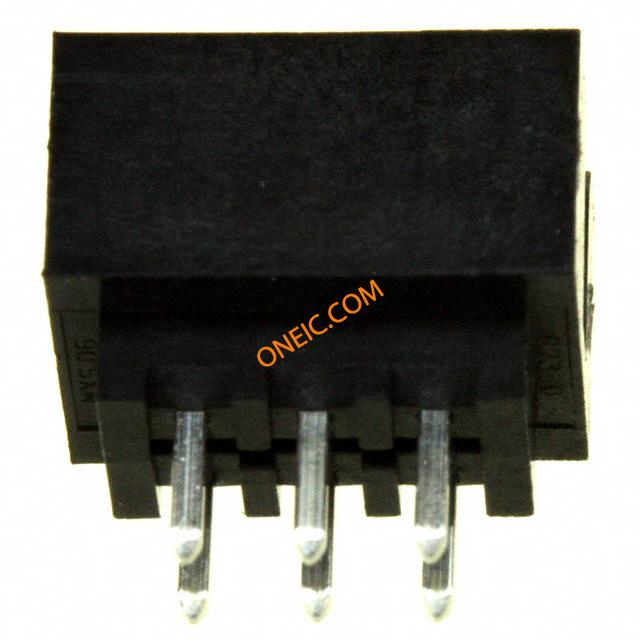

0878310620
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 6 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 6POS 2MM VERT GOLD |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 2/Contact A | 最小供电电压 | 125V |
机械参数
| 颜色 | Black | 深度 | 6.3 mm |
| 间距 | 2 mm | 高度 | 6.4 mm |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon 46 |
| 总长度 | 8.65 mm | 触点数 | 6 |
| 位数 | 6 | 接触长度 - 配合 | 0.141" (3.60mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 已删除 | Compliant | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | ||
