点击放大查看

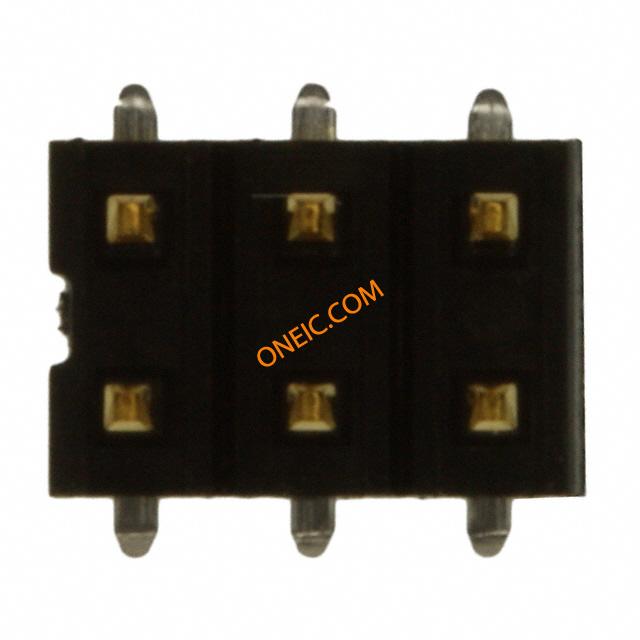

0877590614
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 6 POS 2mm Solder ST SMD Tube CONN HEADER 6POS DL 2MM VERT SMD |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact | 最小输入电压 | 125VAC |
机械参数
| 颜色 | Black | 深度 | 4 |
| 间距 | 2 mm | 高度 | 6.5 |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Surface Mount |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 触点数 | 6 |
| 位数 | 6 | 接触长度 - 配合 | 0.150" (3.81mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
文档与媒体
相关型号
0791098452
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 6CKT
0791098652
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 6CKT

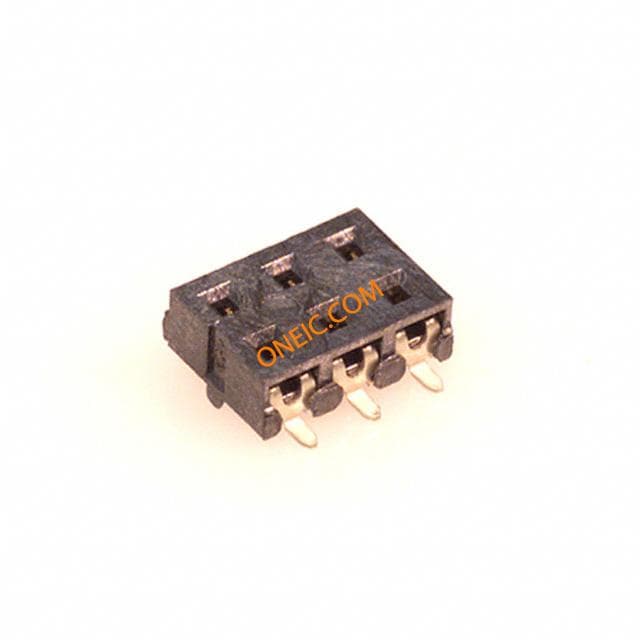

0873400624
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Tube CONN RECEPT 6POS 2MM LOPRO SMD
0791077202
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 6CKT
0791081052
molex
Conn FFC/FPC Connector SKT 6 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 6CKT
0791091252
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 6CKT
0791098402
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 6CKT
0791077052
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 6POS
0791091202
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 6CKT
0791077252
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 6CKT
0791081002
molex
Conn FFC/FPC Connector SKT 6 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 6CKT
0791091052
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 6CKT SMD
51110-0656
molex
Conn Housing F 6 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 6POS Headers & Wire Housings 6CKT 2MM MGRID WTB C D WTB CONN CRIMP HSG 2.00mm Pitch, Milli-Grid™ Crimp Housing, 6 Circuits, with Center Locking Ramp and Side Polarization Keys, Lead-Free
0791098602
Molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 6CKT

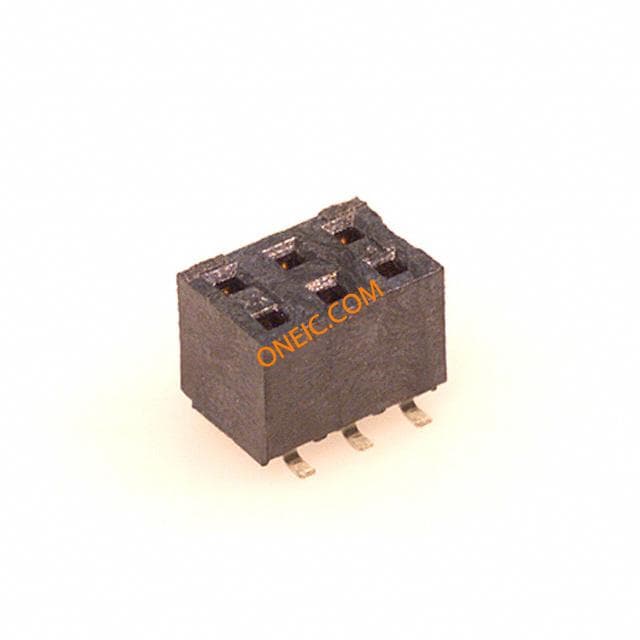

79109-1002
