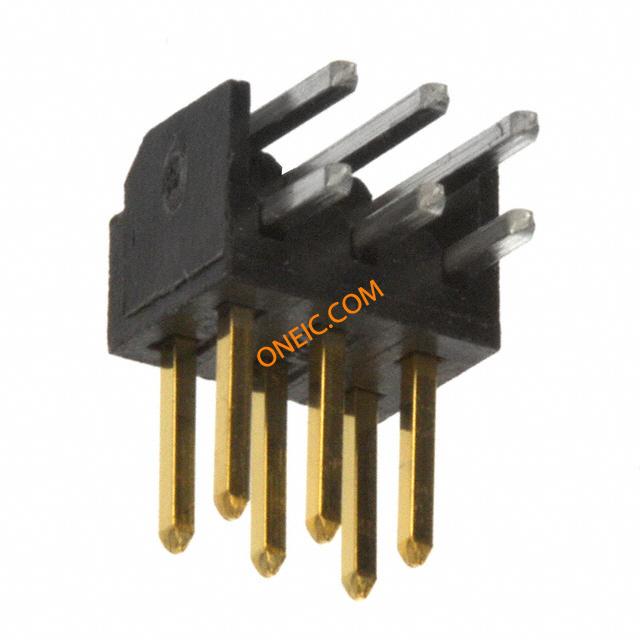

87760-0616
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 6 POS 2mm Solder RA Thru-Hole Tray CONN HEADER 6POS 2MM R/A GOLD Headers & Wire Housings R/A HEADER 6P Lead Free Header Connector,PCB Mount,RECEPT,6 Cont |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0877600616 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 2 A |
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 重量 | 0.023 | 包装方式 | Tray |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2mm |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 连接器颜色 | :Black |
| 触点数 | 6 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 6 | 接触长度 - 配合 | 0.157" (4.00mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 87760 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
0791098452
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 6CKT
0791098652
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 6CKT

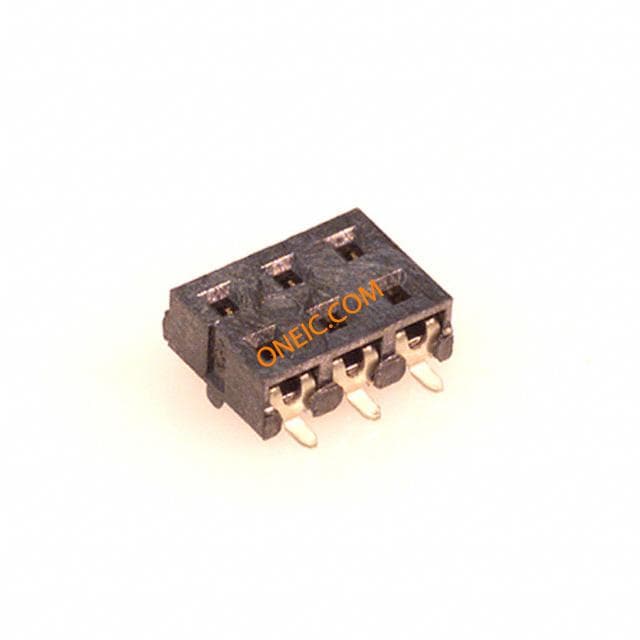

0873400624
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Tube CONN RECEPT 6POS 2MM LOPRO SMD
0511100660
Molex, LLC
. 0511100660 - 6 Position Rectangular Housing Connector Receptacle Black 0.079" (2.00mm) from Molex. from now!
0791077202
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 6CKT
0791081052
molex
Conn FFC/FPC Connector SKT 6 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 6CKT
0791091252
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 6CKT
0791098402
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 6CKT
0791077052
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 6POS
0791091202
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 6CKT
0791077252
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 6CKT
0791081002
molex
Conn FFC/FPC Connector SKT 6 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 6CKT
0791091052
molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 6CKT SMD
51110-0656
molex
Conn Housing F 6 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 6POS Headers & Wire Housings 6CKT 2MM MGRID WTB C D WTB CONN CRIMP HSG 2.00mm Pitch, Milli-Grid™ Crimp Housing, 6 Circuits, with Center Locking Ramp and Side Polarization Keys, Lead-Free
51110-0650
molex
Conn Housing RCP 6 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 6POS Housing 2.00mm Milli-Grid,6w Headers & Wire Housings 6CIR CRIMP HOUSING CRIMP HOUSING, MILLIGRID, 6WAY Crimp housing Pitch2 mm Poles 6 Milli-Grid, 51110-0650, Molex Molex MILLI-GRID 系列 2 行 2mm 节距 6 路 直 母 电缆安装 压接连接器外壳
0791098602
Molex
Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 6CKT

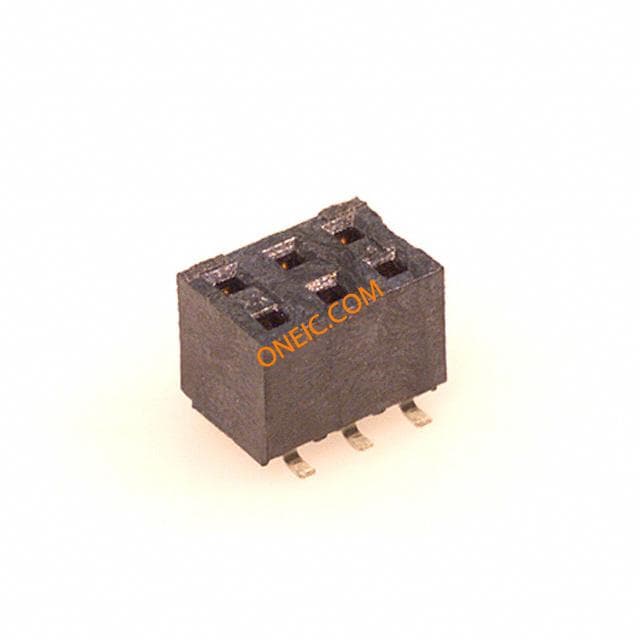

79109-1002
Molex Connector Corporation
CONN RECEPT 6POS 2MM VERT SMD Headers & Wire Housings 2MM RECEPT. 6 CKT Vert. Selective Gold Conn Socket Strip RCP 6 POS 2mm Solder ST SMD Tube

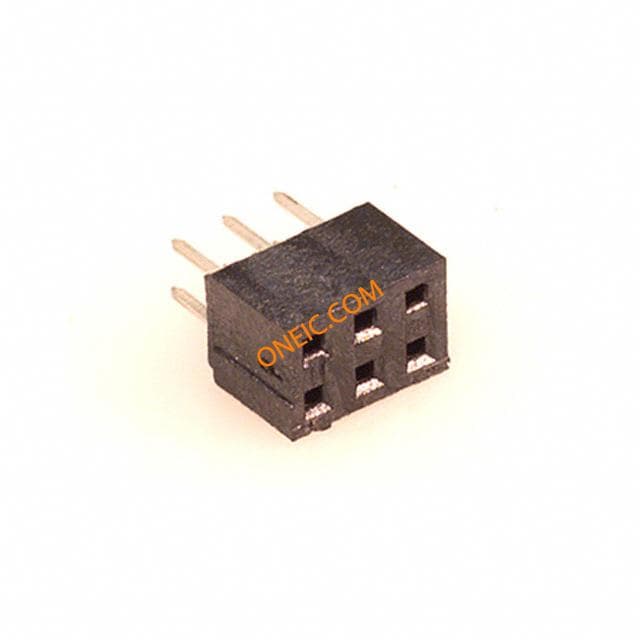

79107-7002
