点击放大查看

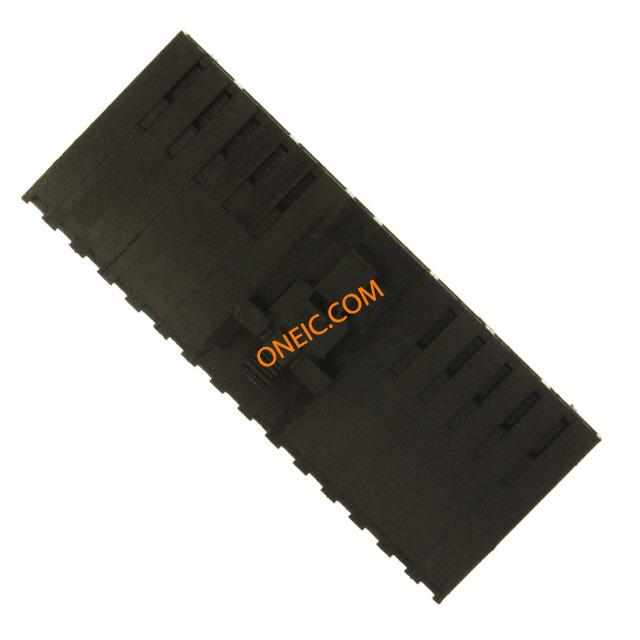

50-57-9415
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 15POS .100 W/LATCH 2.54mm,housing,CgridSL,versionG,1row,15w Headers & Wire Housings HSG 15P SINGLE ROW POSITIVE LATCH 2.54mm Pitch SL™ Crimp Housing, Single Row, Version G, Positive Latch, 15 Circuits HOUSING, 2.54MM, 15WAY Molex SL 系列 1 行 2.54mm 节距 15 路 直 母 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0050579415 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :MOLEX - SL 70066 Series | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 6.58mm |
| 长度 | 38.07mm | 重量 | 0.005 |
| 包装方式 | Bulk | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 引脚间距 | :2.54mm |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | PET |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 15 | 接触件端接 | Crimp |
| 位数 | 15 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 70066 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | SL Connector |
文档与媒体
相关型号
0016020102
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-24AWG TIN
0016020103
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Bag
0016021125
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-24AWG GOLD
0016020088
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 22-24AWG CRIMP GOLD Conn Contact F 1 POS Crimp ST Cable Mount Reel
0016020082
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 15GOLD
0016021113
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG CRIMP 30AU
0016020086
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel

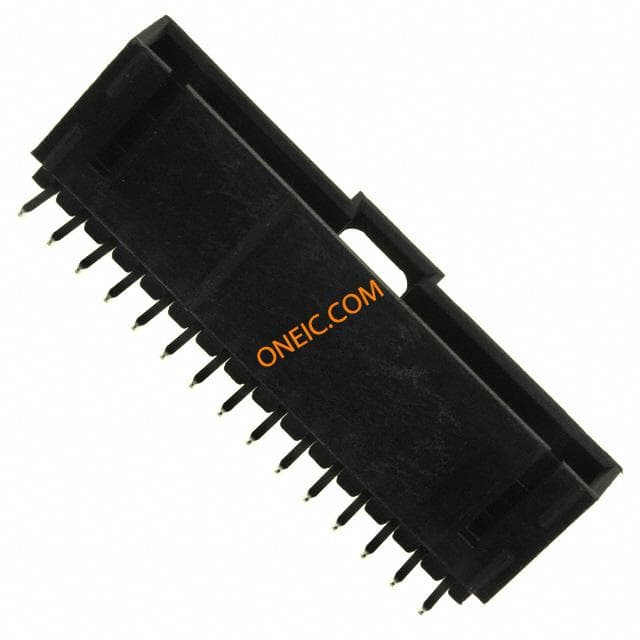

0705530014
molex
Conn Shrouded Header HDR 15 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 15POS .100 R/A GOLD
0016020069
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG CRIMP TIN
0016021110
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 22-24AWG CRIMP TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel
0700580086
molex
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP ST CABLE MOUNT REEL SL TERM CRIMP TIN 22-24AWG
0016021116
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0015045404
Molex
Connector Accessories 40 POS Interim Clip Polyester Black Bag CLIP SL .100" DR W/RIBS 40CKT
0016020119
Molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG CRIMP 15AU
0016020096
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG TIN
0016021112
Molex Inc
CONN SOCKET 24-30AWG CRIMP TIN
0700580088
Molex Inc
SL TERM CRIMP F GOLD 22-24AWG

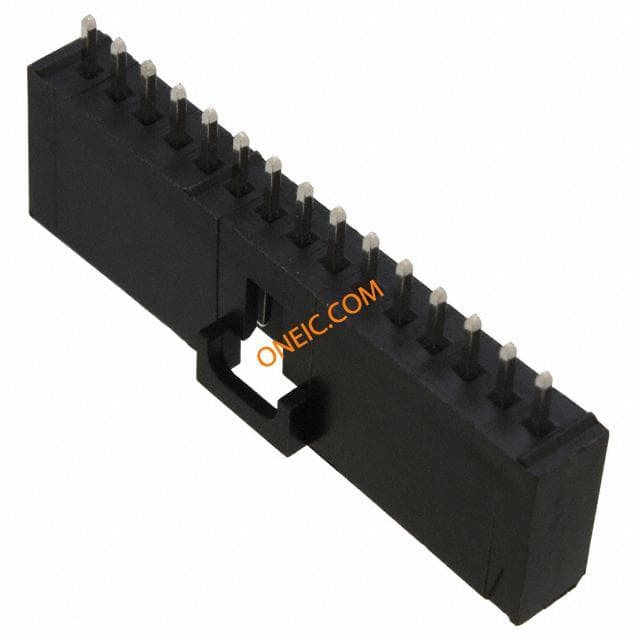

70543-0049
