点击放大查看

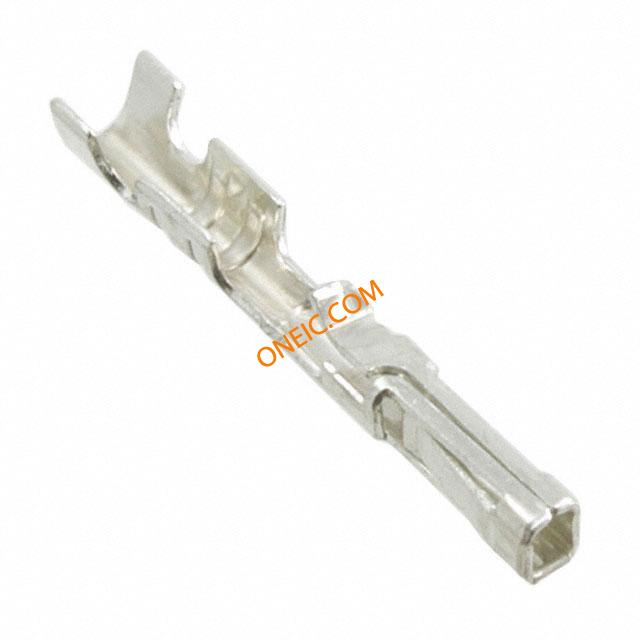

0016020086
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel |
| 分类 |
商业参数
| 交货时间 | 36 Days | 其他名称 | WM2510CT |
| 子类别 | Connector Contact | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 mohm | 最大额定电流 | 3 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 2.29 mm | 间距 | Not Required mm |
| 高度 | 2.03 mm | 包装方式 | Reel |
| 导线线规 | 22-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 12.88 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 150µin (3.81µm) |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 已删除 | Compliant | 行业别名 | 16-02-0086, 16020086 |
| 适用产品/相关产品 | 0016020102 | ||
环境参数
| 工作温度 | -40C to 105C | ||
