点击放大查看

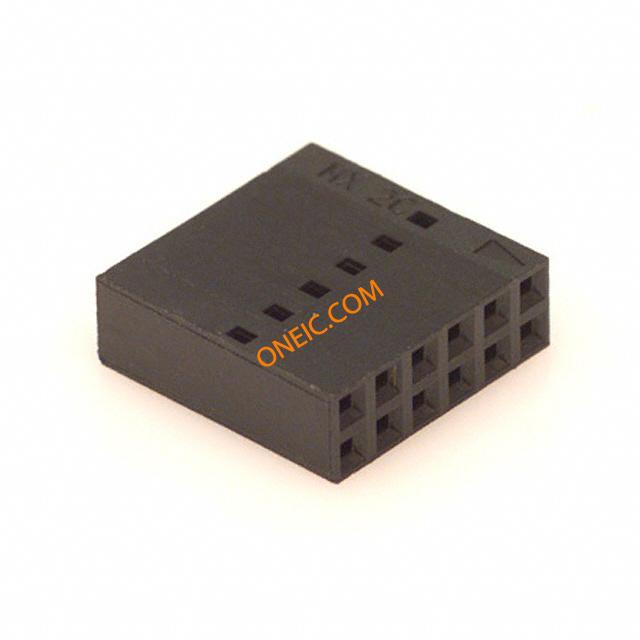

22-55-2121
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 12POS .100 DUAL Headers & Wire Housings HSG 12P DUAL ROW NON-POLARIZED 2.54mm Pitch SL™ Crimp Housing, Dual Row, Version A, Non-polarized, 12 Circuits DUAL ROW CRIMP CONNECTOR HOUSE; 12 circuits |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0022552121 70450-0005 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | Polyester |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | 70450 |
| 产品子类型 | Receptacles / Sockets - Housings | ||
文档与媒体
相关型号
0016020103
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Bag
0016020087
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Reel
0016020069
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG CRIMP TIN

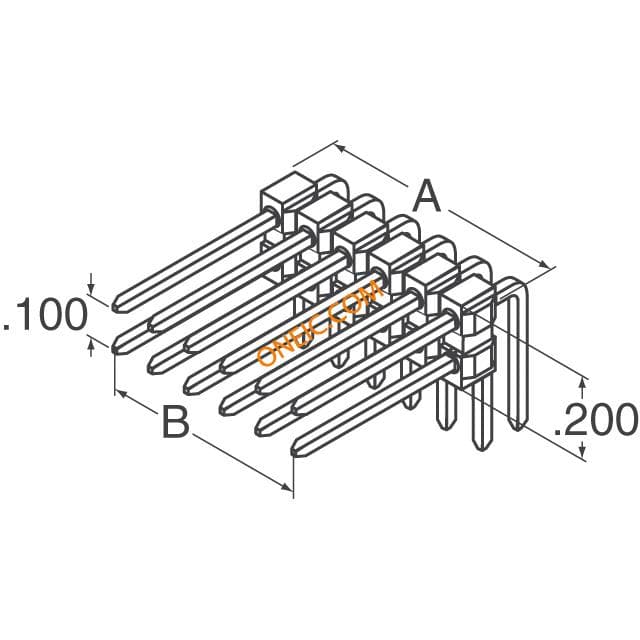

0717640012
molex
Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR DUAL 12POS .100 R/A TIN

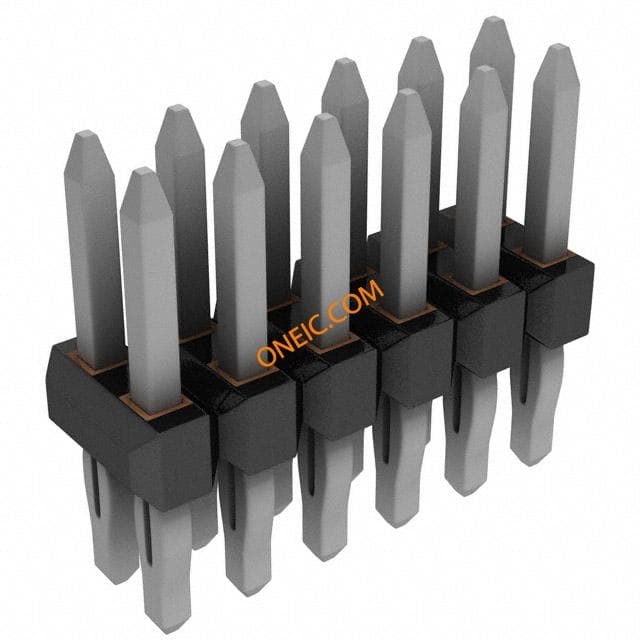

0751020083
molex
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 12POS .100 SRT TIN
15-29-7012
Molex
Headers & Wire Housings 12P RT ANGLE HEADER CONN HEADER 12POS .100 R/A GOLD
15-42-6012
Molex
Headers & Wire Housings C-GRID 12 CKT SHROUD CONN HEADER 12POS .100 VERT TIN
15-42-7012
Molex
Headers & Wire Housings CGrid RA Shrd Hdr VerA Tin 12Ckt CONN HEADER 12POS .100 R/A TIN
15-41-8012
Molex
Headers & Wire Housings CGrid RA Shrd Hdr VerA 30 SAu 12Ckt CONN HEADER 12POS .100 R/A GOLD
15-41-7012
Molex
Headers & Wire Housings Obsolete CONN HEADER 12POS .100 VERT GOLD

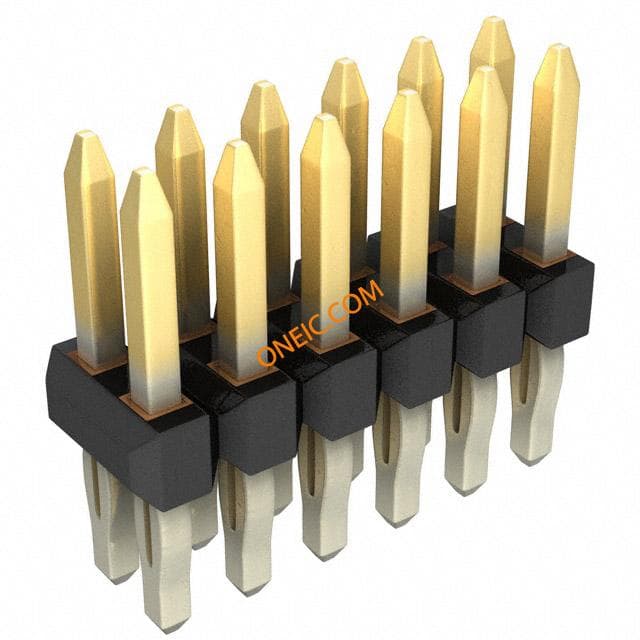

0751020044
Molex
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 12POS .100 SRT AU
0717640112
Molex
Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR DUAL 12POS .100 R/A AU

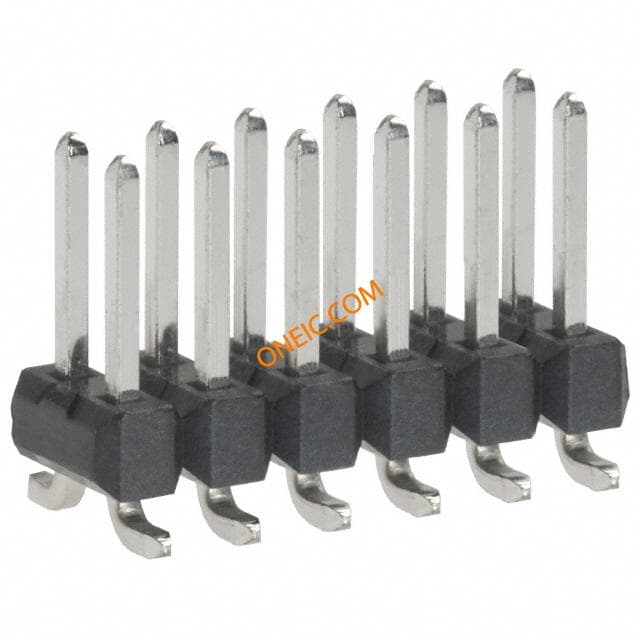

0015912120
Molex
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST SMD Tube CONN HEADER 12POS .100" VERT TIN

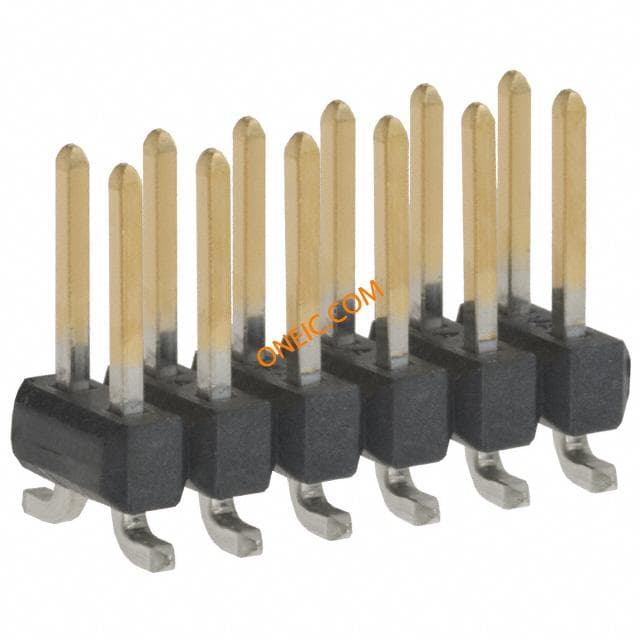

15-91-0120
Molex Connector Corporation
CONN HEADER 12POS .100" STR 15AU Headers & Wire Housings SMT BRKWY HEADER 12 PIN GOLD Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST SMD Tube
15-80-0123
Molex Connector Corporation
CONN HEADER 12POS .100 VERT GOLD Headers & Wire Housings 12P DUAL ROW PCB VRT Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube
10-89-4126
Molex Connector Corporation
CONN HEADER 12POS .100 R/A GOLD Headers & Wire Housings CGrid R/A Bkwy HPro Hdr 30 SAu 12Ckt
10-88-3121
Molex Connector Corporation
CONN HEADER 12POS .100 R/A TIN Headers & Wire Housings CGrid R/A Bkwy HPro Hdr Tin 12Ckt Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube
10-89-4122
Molex Connector Corporation
CONN HEADER 12POS .100 R/A GOLD Headers & Wire Housings HDR RA 2X06P .1 240/110 15AU Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube

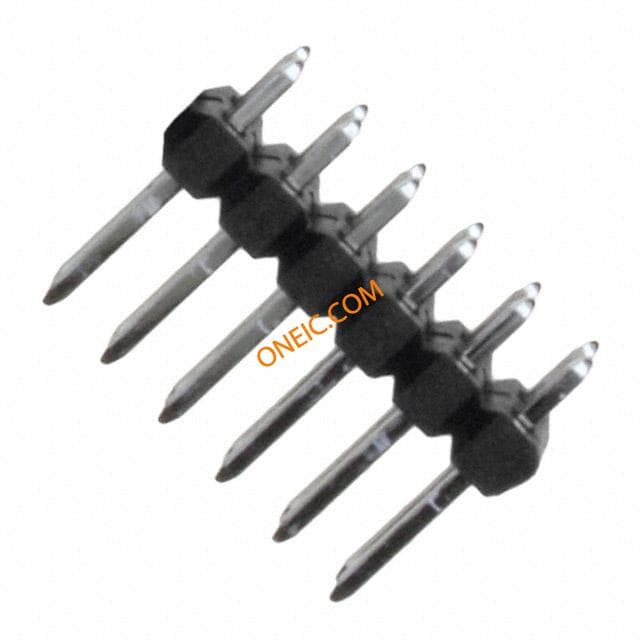

0010897121
Molex Inc
CONN HDR DUAL 12POS .100 SRT TIN

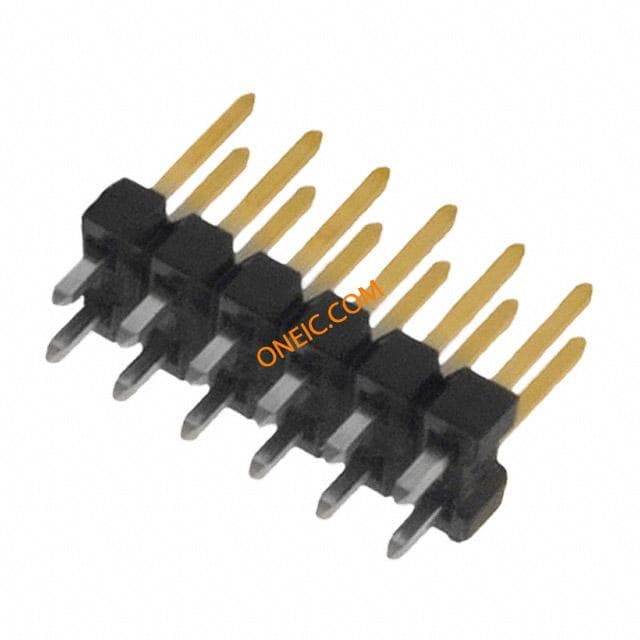

0010897122
