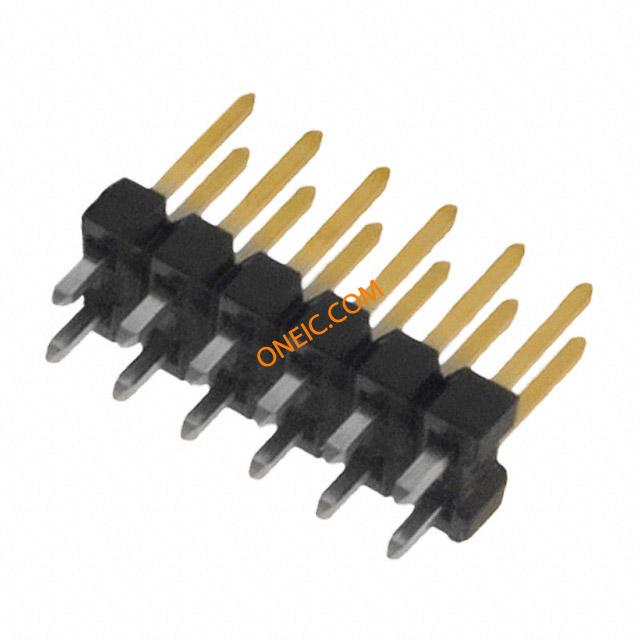

0010897122
| 制造商 | Molex, LLC |
| 描述 | CONN HDR DUAL 12POS .100 SRT AU |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Gold | 排数 | 2 |
| 位数 | 12 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 加载位置数 | All | ||
