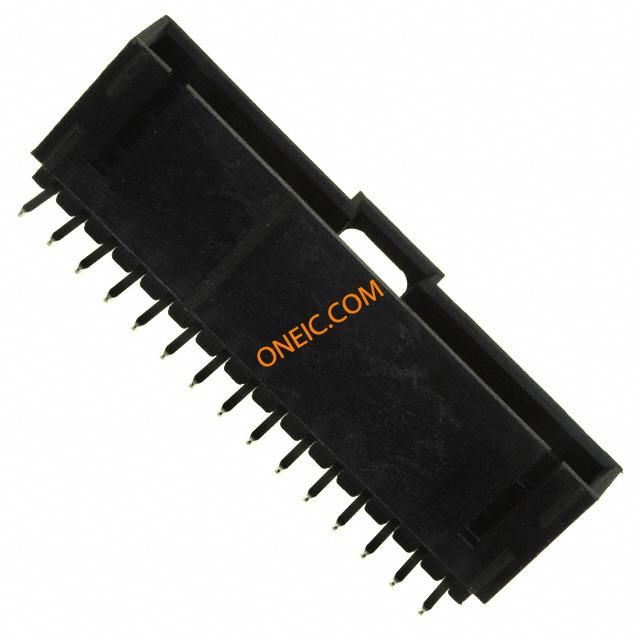

0705530014

制造商	Molex, LLC
描述	Conn Shrouded Header HDR 15 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 15POS .100 R/A GOLD
分类	连接器解决方案板对板连接器带罩排针连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Rail / Tube

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	30	最大额定电流	3/Contact
最小输入电压	250V

机械参数

颜色	Black	深度	13.59
间距	0.100" (2.54mm)	高度	6.99
包装方式	Tube	端接方式	Solder
触头类型	Male Pin	外壳颜色	Black
安装类型	Through Hole	连接器类型	Header, Shrouded
接触镀层	Gold Over Nickel	紧固类型	Latch Holder
排数	1	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	40.65
触点数	15	位数	15
接触长度 - 配合	0.240" (6.10mm)	接触镀层厚度	15µin (0.38µm)

产品信息

类型	Shrouded Header	连接器性别	HDR
加载位置数	All

文档与媒体

PDF 文档

0705530014_PCB_HEADERS.pdf

PDF 文档

Single Row (SL) Prod Spec
