点击放大查看

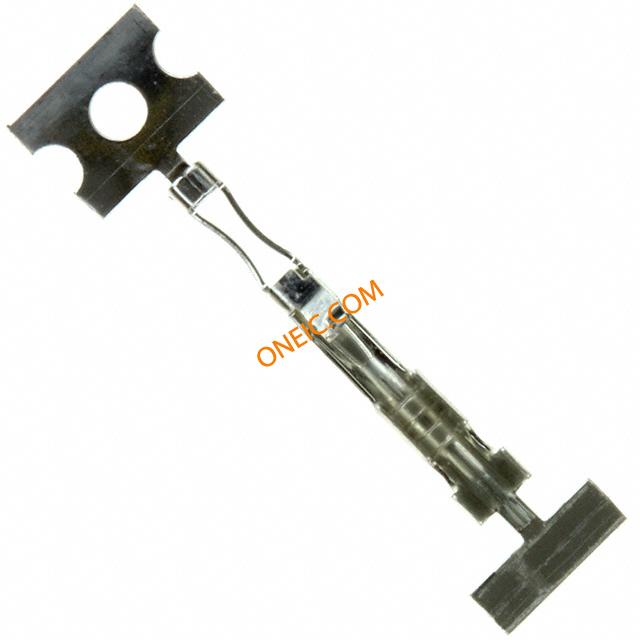

0016021110
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 22-24AWG CRIMP TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel |
| 分类 |
商业参数
| 交货时间 | 24 Days | 其他名称 | WM2569CT |
| 子类别 | Connector Contact | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 mohm | 最大额定电流 | 3 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 1.32 mm | 间距 | Not Required mm |
| 高度 | 2.18 mm | 包装方式 | Reel |
| 导线线规 | 22-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 12.88 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 150µin (3.81µm) |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 已删除 | Compliant | 行业别名 | 16-02-1110, 16021110 |
| 适用产品/相关产品 | 0016021114 | ||
环境参数
| 工作温度 | -40C to 105C | ||
相关型号
0050579405
molex
Conn Housing RCP 5 POS 2.54mm Crimp ST Panel Mount Bag Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 5POS .100 W/LATCH
0050579018
molex
Conn Housing RCP 18 POS 2.54mm Crimp ST Bag CONN HOUSING 18POS .100 SINGLE
0050579502
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HOUSING RCPT .100 2POS
0050579303
molex
Conn Housing RCP 3 POS 2.54mm Crimp ST Bag CONN HOUSING RCPT .100 3POS
0050579317
molex
Conn Housing RCP 17 POS 2.54mm Crimp ST Bag CONN HSG 17POS .100 SINGLE VER D
0638118700
molex
CONN ACC HAND CRMP TOOL Hand Crimp Tool With Type Handtool TOOL 22-24&32-36 AWG SL CRIMP Tool: for crimping; terminals; 22÷24AWG
0050579013
molex
Conn Housing F 13 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 13POS .100 SINGLE
0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX
0050579510
Molex
Conn Housing RCP 10 POS 2.54mm Crimp ST Bag CONN HSG 10POS .100 SINGLE VER H
0050579302
Molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HSG 2POS .100 SINGLE VER D
0050579316
Molex
Conn Housing F 16 POS 2.54mm Crimp ST Cable Mount Bag CONN HSG 16POS .100 SINGLE VER D
0050579514
Molex
Conn Housing RCP 14 POS 2.54mm Crimp ST Bag CONN HSG 14POS .100 SINGLE VER H
0050579209
Molex
Conn Housing RCP 9 POS 2.54mm Crimp ST Bag CONN HSG 9POS .100 SINGLE VER C
0050579210
Molex
Conn Housing F 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HSG 10POS .100 SINGLE VER C
0050579503
Molex Inc
CONN HOUSING RCPT .100 3POS Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Bag
0050579023
Molex Inc
CONN HOUSING 23POS .100 SINGLE
50-57-9415
Molex Connector Corporation
CONN HOUSING 15POS .100 W/LATCH 2.54mm,housing,CgridSL,versionG,1row,15w Headers & Wire Housings HSG 15P SINGLE ROW POSITIVE LATCH 2.54mm Pitch SL™ Crimp Housing, Single Row, Version G, Positive Latch, 15 Circuits HOUSING, 2.54MM, 15WAY Molex SL 系列 1 行 2.54mm 节距 15 路 直 母 面板安装 压接连接器外壳
50-57-9418
Molex Connector Corporation
CONN HOUSING 18POS .100 W/LATCH 2.54mm,housing,CgridSL,versionG,1row,18w Headers & Wire Housings 18 CKT CRIMP HOUSING 2.54mm Pitch SL™ Crimp Housing, Single Row, Version G, Positive Latch, 18 Circuits Molex SL 系列 1 行 2.54mm 节距 18 路 直 母 面板安装 压接连接器外壳

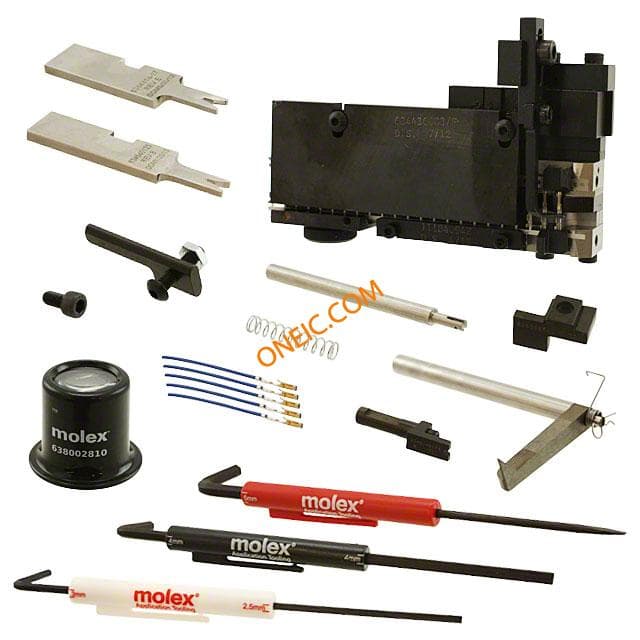

0639123200
Molex Inc
T2 TERMINATOR ASSEMBLY

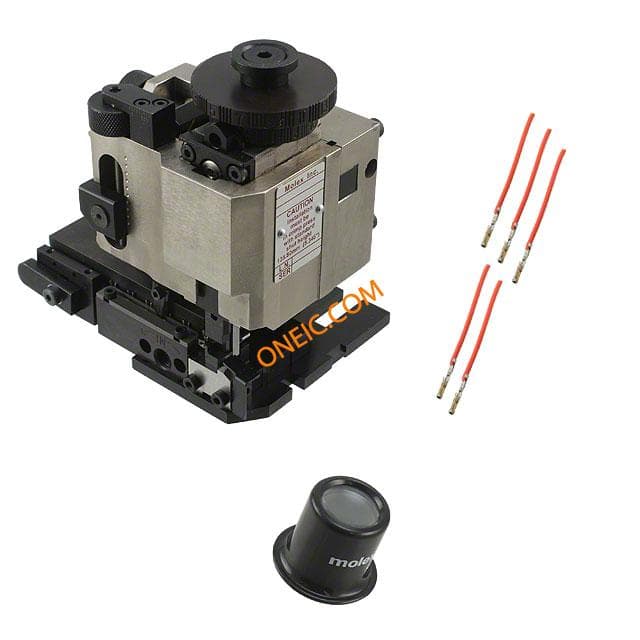

0639023200
