39-01-2080
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 8POS DUAL 8 way receptacle,Mini-Fit Jr Headers & Wire Housings 8 CKT RCPT HOUSING Conn Housing RCP 8 POS 4.2mm Crimp ST Bag RECEPTACLE, 8WAY, CRIMP, MINI-FIT PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 8 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 8 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039012080 5557-08R |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 3500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | 600 V | 工作电压 | :250V |
| 接触电阻 | :10mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 13 A | ||
机械参数
| 颜色 | :Natural | 深度 | 19.6mm |
| 间距 | 4.2mm | 宽度 | 15.1mm |
| 长度 | 18mm | 重量 | 0.0172 |
| 材料（通用） | :Clear nylon | 基体材料 | :PA Polyamide (Nylon) |
| 安装类型 | Straight | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 8 | 位数 | :8 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 连接器性别 | Female | 系列 | 5557 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Mini-Fit Jr. Receptacle | ||
文档与媒体
相关型号
46207-0008
molex

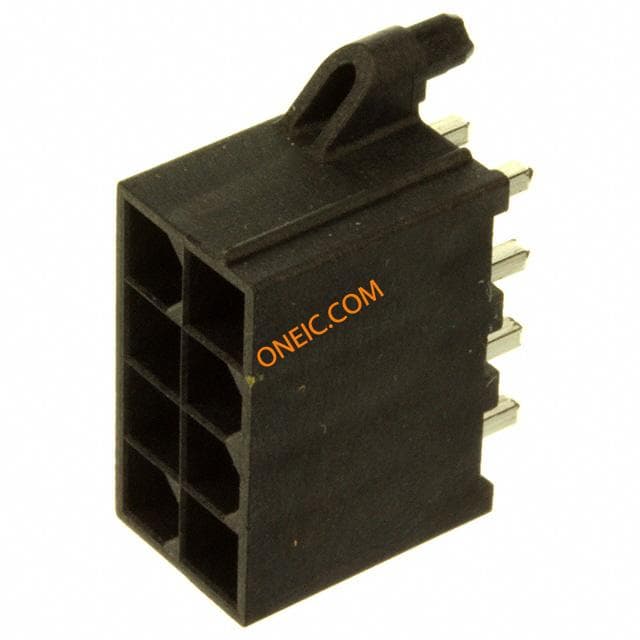

Conn Wire to Board HDR 8 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 8POS 4.2MM VERT TIN Molex 46207 Series 4.2mm Pitch 8 Way 2 Row Straight PCB Header, Solder Termination, 12A Headers & Wire Housings MINIFIT RTC HDR 8P DR V TIN .062 Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port Tray Molex MINI-FIT JR. 系列 4.2mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 12A , 通孔
