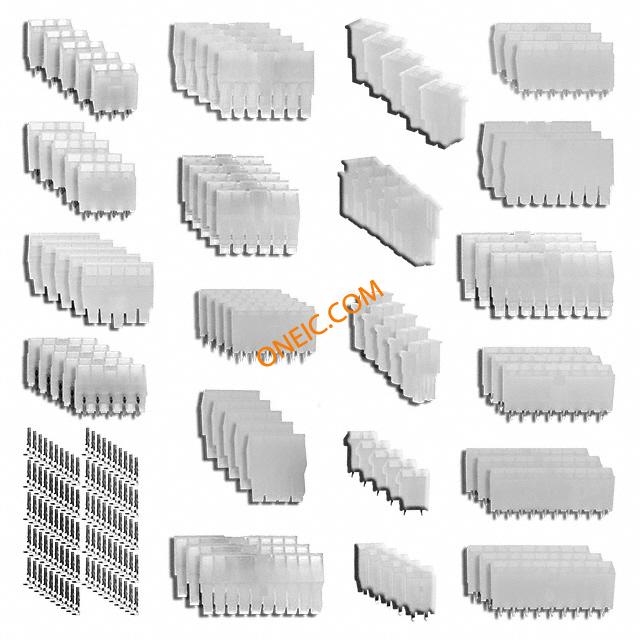

76650-0015
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,14,16,18,2,20,3,4,6,8POS 3-9A FREE-HANGING, THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT JR 4.20MM Board to Board & Mezzanine Connectors MINIFIT JR KIT WTB COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,14,16,18,2,20,3,4,6,8POS 3-9A FREE-HANGING, THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM ... Kit Description:Vertical Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:182 MINI-FIT JR. PWR CONNECTOR KIT VERT HEADER & RECEPT |
| 分类 |
商业参数
| 标准包装规格 | 1 | 零件号别名 | 0766500015 |
| 产品类别 | Board to Board & Mezzanine Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 600 V | 额定电压 | 600 V |
| 最大额定电流 | 3 A to 9 A | ||
机械参数
| 间距 | 4.2 mm | 包装方式 | Plastic Box |
| 导线线规 | 24-18 | 安装类型 | Vertical |
| 行程角度 | Vertical | 连接器类型 | Receptacle and Header |
| 触点数 | 2 to 20 | ||
产品信息
| 系列 | 76650 | 值 | 182 pcs - Assorted 2, 4, 6, 8, 10, 12, 14, 16, 18, 20 Circuit Header, Housing, 24 ~ 18 AWG Crimp Terminals |
| 套件类型 | Rectangular - Contact, Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Kits | 配置 | Wire-to-Board |
| 应用细节 | Security and Alarms, Vending and Gaming Machines, White Goods, Production Equipment, Broadcast Equipment, Telecom Infrastructure | ||
文档与媒体
相关型号

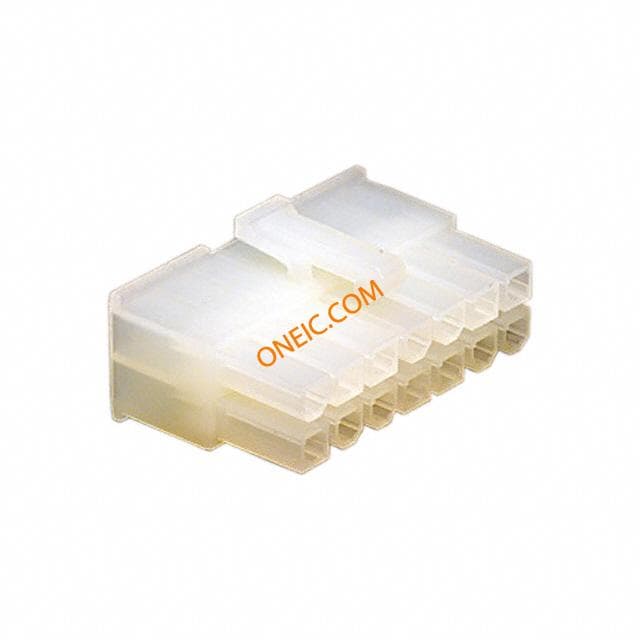

0039012140
