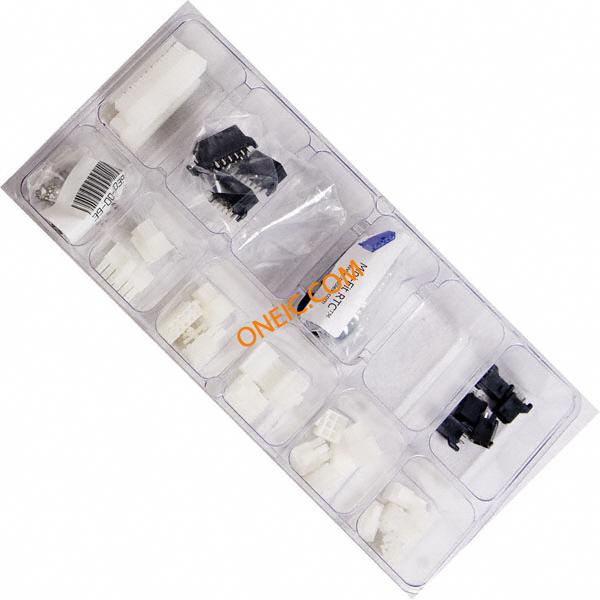

76650-0163
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT RTC I/O Connectors MINI-FIT RTC KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH ... Kit Description:Vertical Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:134 MINI-FIT RTC PWR CONNECTOR KIT VERT HEADER & RECEPT |
| 分类 |
商业参数
| 产品 | Kits | 标准包装规格 | 1 |
| 零件号别名 | 0766500163 | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 600 V | 最大额定电流 | 8 A to 12 A |
机械参数
| 间距 | 4.2 mm | 包装方式 | Plastic Box |
| 导线线规 | 24-18 | 安装类型 | Vertical |
| 连接器类型 | Receptacles and Headers | 安装样式 | Crimp |
| 壳体材料 | Liquid Crystal Polymer (LCP) | 端接样式 | Pin |
| 触点数 | 4, 6, 8, 10, 12, 24 | ||
产品信息
| 连接器性别 | Female | 系列 | 76650 |
| 值 | 134 pcs - Assorted 4, 6, 8, 10, 12, 24 Circuit Header, Housing, 24 ~ 18 AWG Crimp Terminals | 套件类型 | Rectangular - Contact, Header, Housing |
| 制造商全称 | 76650 | 配置 | Wire-to-Board |
| 电路数 | 4, 6, 8, 10, 12, 24 | ||
